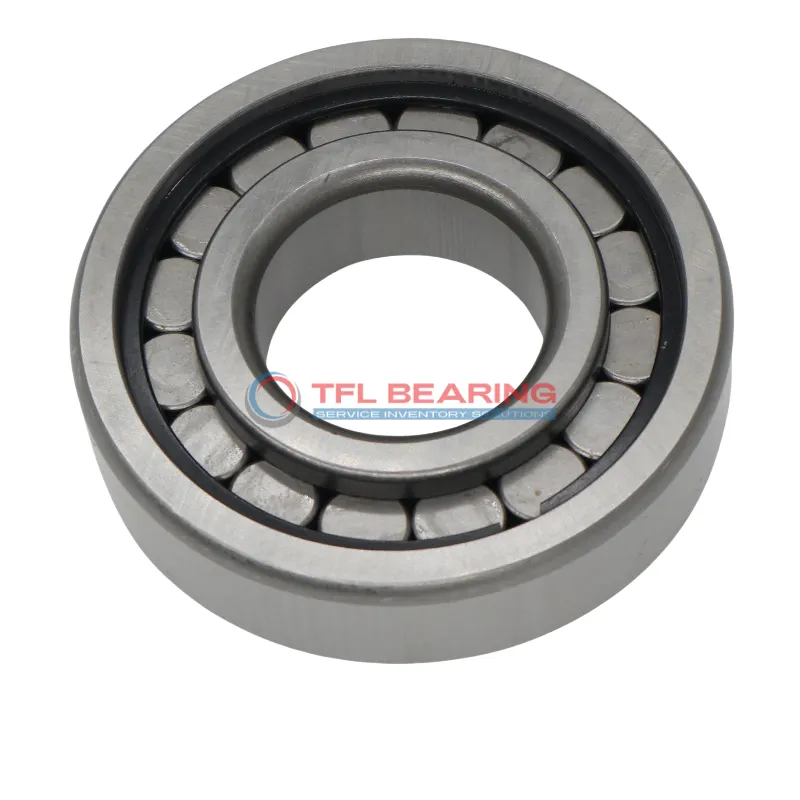

Single Row Full Complement Cylindrical Roller Bearings NCF 3022 CV

Single Row Full Complement Cylindrical Roller Bearings NCF 3022 CV

The NCF 3022 CV is a single-row cylindrical roller bearing with a 110mm bore and 170mm outer diameter, built from tough chrome steel. It handles combined loads up to 61875 lbf and runs smoothly at speeds up to 2000 RPM.

Its full complement design means no cage is needed, allowing for higher load capacity and durability. The open seal type makes lubrication with grease or oil straightforward.

This bearing suits heavy-duty applications like industrial gearboxes or machinery where high radial loads are common. It can operate in temperatures from -30°C to 110°C.

Weighing 3.5kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 3022 CV
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 45 mm
  • Width Tolerance -0.20mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 127 mm
  • Shoulder Dia Outer Ring 149 mm
  • Raceway Diameter Outer Ring 156.13 mm
  • Chamfer Dimension r1,2(min.) 2 mm
  • Chamfer Dimension r3,4(min.) 1 mm
  • Permissible Axial Displacement(max.) 5.5 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 61875 lbf
  • Static Radial Load 90000 lbf
  • Max Speed 2000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.5 kg

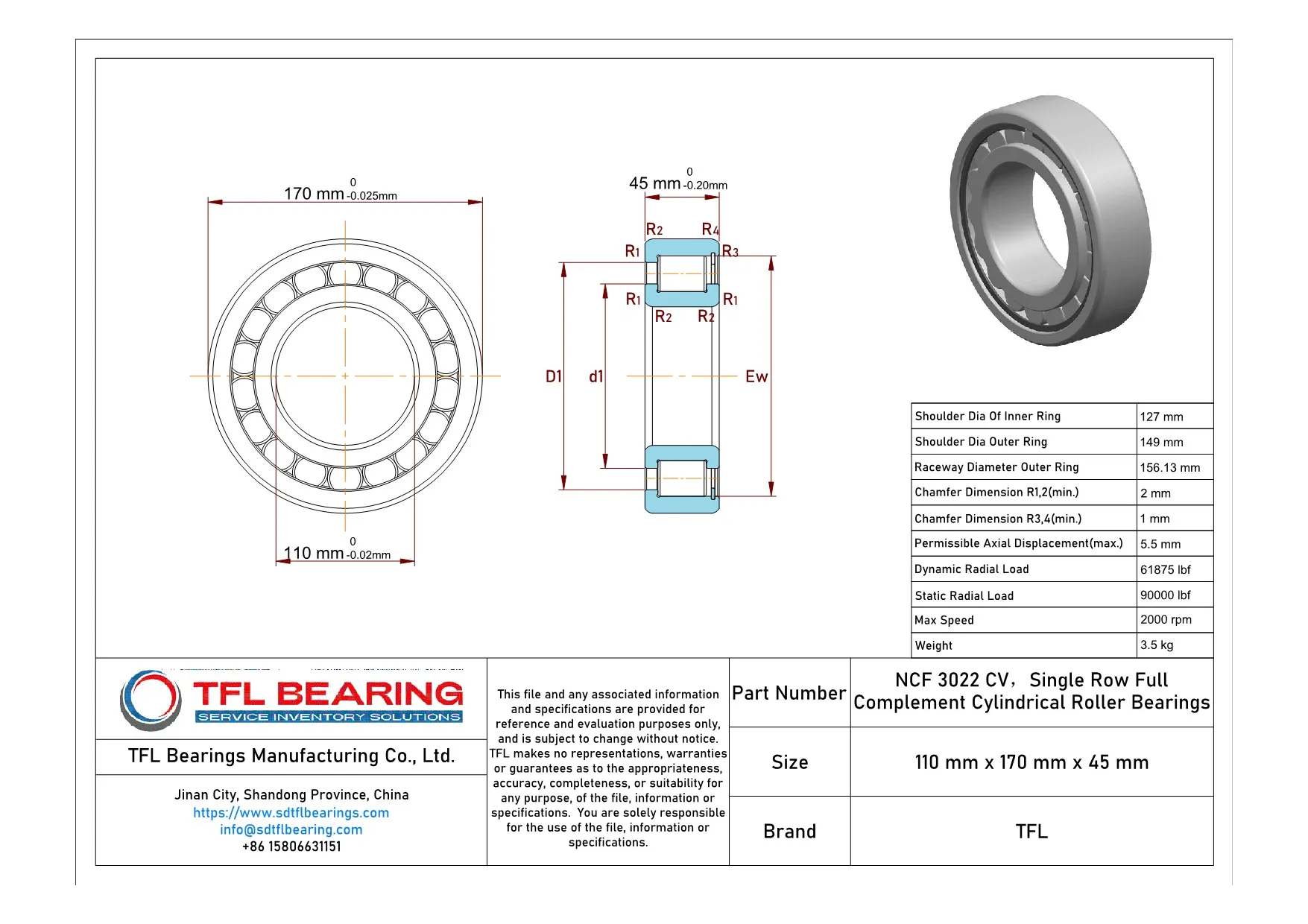

Single Row Full Complement Cylindrical Roller Bearings NCF 3022 CV dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 3022 CV Bearing

NCF 3022 CV Bearing is built with a full complement of chrome steel rollers, offering high load capacity and durability.
Its dynamic radial load capacity reaches 61,875 lbf, making it suitable for heavy-duty applications.

The open design allows for easy lubrication with grease or oil, ensuring smooth operation.
With a maximum speed of 2,000 rpm, it balances performance and reliability in various conditions.

NCF 3022 CV Bearing operates in temperatures from -30° to 110°C, adapting to different environments.
The absence of a cage increases the number of rollers, enhancing its load-bearing capabilities.

Its precise dimensions and tolerances ensure a secure fit and long service life.
The chrome steel construction resists wear, reducing maintenance needs over time.

Application

Industrial Uses of NCF 3022 CV Bearing
NCF 3022 CV Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its full complement design handles high radial loads efficiently. The open seal type simplifies lubrication, making it suitable for harsh environments.

In automotive applications, NCF 3022 CV Bearing supports components such as drivetrains and axle systems, ensuring smooth performance under combined loads. Its chrome steel construction offers durability, even in high-speed scenarios.

For automation equipment, NCF 3022 CV Bearing provides reliable operation in robotic arms and assembly lines, where precision and load capacity are key. The absence of a cage allows for higher roller counts, enhancing its load-bearing capabilities.

Where Is NCF 3022 CV Bearing Used?
NCF 3022 CV Bearing finds its place in wind turbines, where its ability to handle heavy radial loads and axial displacement is crucial. The grease or oil lubrication options make it adaptable to various operating conditions.

In construction machinery, NCF 3022 CV Bearing ensures stability in equipment like cranes and excavators, thanks to its robust chrome steel rollers. The metric sizing ensures compatibility with a wide range of industrial standards.

Built for Heavy-Duty Use: NCF 3022 CV Bearing
NCF 3022 CV Bearing excels in mining equipment, where its full complement design withstands extreme loads and vibrations. The high static radial load capacity makes it a dependable choice for demanding applications.

In agricultural machinery, NCF 3022 CV Bearing supports heavy implements like harvesters and tractors, providing long-lasting performance. Its temperature range allows it to operate reliably in varying weather conditions.

Automotive vs Aerospace: Applications of NCF 3022 CV Bearing
In automotive systems, NCF 3022 CV Bearing is ideal for transmissions and differentials, offering high load capacity and durability. Its design ensures minimal maintenance, even under continuous use.

For aerospace applications, NCF 3022 CV Bearing is used in auxiliary systems where reliability is critical. The chrome steel material and precise tolerances meet the stringent requirements of the industry.
