Single Row Full Complement Cylindrical Roller Bearings NCF 3018 CV

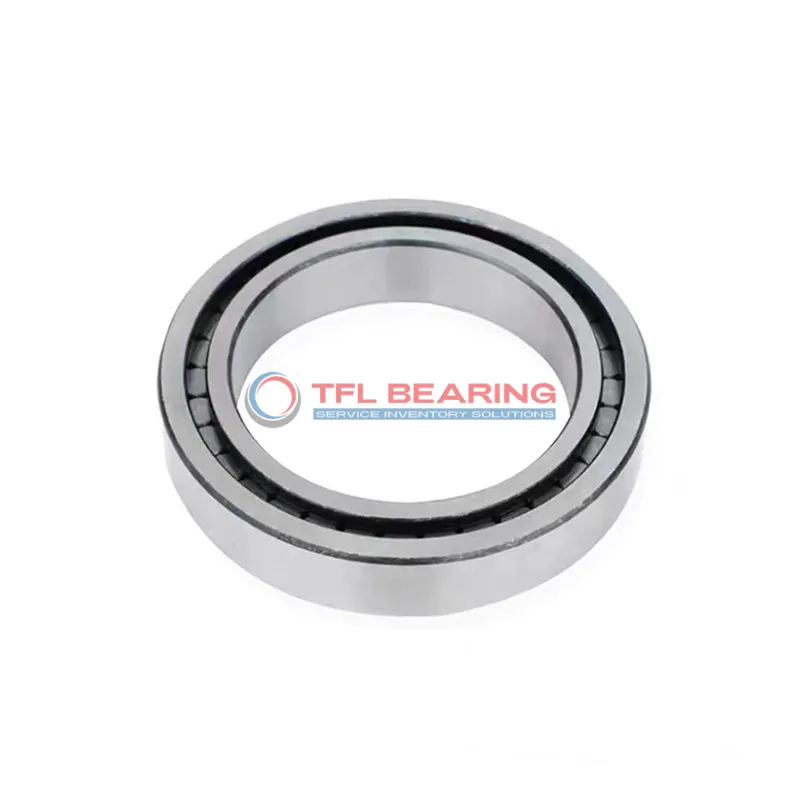

Single Row Full Complement Cylindrical Roller Bearings NCF 3018 CV

The NCF 3018 CV is a single row full complement cylindrical roller bearing with a 90mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44550 lbf and runs smoothly at speeds up to 3000 RPM.

Its full complement design eliminates the need for a cage, offering higher load capacity and durability. The open seal allows for easy lubrication with grease or oil.

This bearing suits applications with significant radial and axial loads, such as gearboxes or heavy machinery. It operates well in temperatures from -30°C to 110°C.

Weighing 1.97kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 3018 CV
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 37 mm
  • Width Tolerance -0.20mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 106 mm
  • Shoulder Dia Outer Ring 124 mm
  • Raceway Diameter Outer Ring 130.11 mm
  • Chamfer Dimension r1,2(min.) 1.5 mm
  • Chamfer Dimension r3,4(min.) 1 mm
  • Permissible Axial Displacement(max.) 4 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 44550 lbf
  • Static Radial Load 63000 lbf
  • Max Speed 3000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.97 kg
Single Row Full Complement Cylindrical Roller Bearings NCF 3018 CV dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 3018 CV Bearing

NCF 3018 CV Bearing is built with a full complement of cylindrical rollers, offering high radial load capacity up to 44,550 lbf.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The open design allows for easy lubrication with grease or oil, maintaining smooth operation.
With a maximum speed of 3,000 rpm, it balances performance and reliability.

NCF 3018 CV Bearing handles combined loads efficiently, thanks to its robust single-row construction.
The precise tolerances ensure a secure fit and consistent performance in various conditions.

Its temperature range of -30° to 110°C makes it suitable for diverse environments.
The absence of a cage maximises load capacity, making it ideal for heavy-duty applications.

Application

Industrial Uses of NCF 3018 CV Bearing
NCF 3018 CV Bearing is commonly used in heavy machinery like industrial gearboxes and large pumps, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, extending service life in demanding conditions.

What Makes NCF 3018 CV Bearing a Preferred Choice?
In automotive applications, NCF 3018 CV Bearing supports drivetrain components, offering reliable performance under combined loads. Its chrome steel construction ensures durability, even in high-speed scenarios like turbine engines.

Built for Heavy-Duty Use: NCF 3018 CV Bearing
For automation systems, NCF 3018 CV Bearing excels in robotic arms and conveyor belts, where precision and load capacity are key. The metric sizing makes it a versatile fit for European and Asian equipment standards.

Medical vs Industrial: Where NCF 3018 CV Bearing Excels
In medical imaging devices, NCF 3018 CV Bearing provides smooth operation, thanks to its high static radial load capacity. Meanwhile, in industrial settings, it’s a go-to for heavy presses and rolling mills.
