Super Precision Angular Contact Ball Bearings
TFL supplies super precision angular contact ball bearings for high-speed and high-accuracy rotating applications, including machine tool spindles, CNC equipment, high-speed motors, precision pumps, compressors, and selected precision rotary systems. This product list covers 8,286 metric configurations, including 70, 719, 72, and 718 series options, 15°, 18°, and 25° contact angles, P4 / P4A precision classes, steel or ceramic ball options, phenolic cage configurations, open and selected sealed designs, and matched arrangements such as DB, DF, DT, TBT, QBC, and QBT. Buyers can compare bearing dimensions, contact angle, precision class, preload, matched set arrangement, ball material, load rating, speed, and lubrication before requesting a quotation.
Exceptional Running Accuracy and Precision
Designed for High Combined Loads
Superior High-Speed Performance
Super Precision Angular Contact Ball Bearing Selection Guide
Choose super precision angular contact ball bearings when the application requires high speed, low runout, accurate shaft positioning, high system rigidity, and controlled preload. Use the product list to compare 70, 719, 72, and 718 series models by contact angle, P4 / P4A precision class, steel or ceramic balls, preload class, matched arrangement, lubrication, load rating, and maximum speed.
How to Choose This Bearing Type
Start with the spindle or shaft arrangement. Super precision angular contact ball bearings are selected when running accuracy, speed, system rigidity, heat generation, and preload control are critical to machine performance. They are commonly used in high-speed spindle and precision rotating systems where standard industrial angular contact bearings may not meet the required runout, speed, or positioning accuracy.
Confirm whether the application requires a standalone bearing, a universally matchable bearing, a matched pair, a triplex set, or a four-bearing set. The bearing arrangement, preload, mounting direction, contact angle, lubrication method, and shaft and housing accuracy all affect final operating performance.
Common Series and Model Range
The current product list contains 8,286 metric super precision angular contact ball bearing configurations. Main series include 70, 719, 72, and 718 series, with bore sizes from 6 mm to 360 mm. The range includes open and selected sealed designs, steel and ceramic ball options, phenolic cage configurations, and P4 / P4A precision classes.
| Selection Item | Current Product Range | What Buyers Should Check |
|---|---|---|
| Main series | 70, 719, 72, and 718 series | Choose by speed, system rigidity, load capacity, and available housing space |
| Contact angle | 15°, 18°, and 25° | Balance speed capability, axial load capacity, and bearing arrangement rigidity |
| Precision class | P4, P4A, PA9A, and selected P2 options | Confirm running accuracy, runout, spindle requirement, and replacement specification |
| Ball material | Steel or ceramic | Ceramic balls may support higher speed capability, lower centrifugal forces, reduced heat generation, and higher rigidity |
| Matched arrangement | Universal, DB, DF, DT, TBT, QBC, QBT, and related sets | Confirm axial load direction, preload, rigidity, and mounting sequence |
| Preload | Extra light, light, moderate, and heavy preload classes | Select according to speed, rigidity, heat generation, and machining accuracy requirements |
P4A, Hybrid Ceramic, Open / Sealed, and Preload Selection
Precision class and ball material should be identified separately from the complete bearing designation. In SKF-style super precision bearing numbers, P4 indicates dimensional and running accuracy according to ISO tolerance class 4, while P4A identifies ISO class 4 dimensional accuracy with running accuracy better than ISO tolerance class 4. HC indicates bearing-grade silicon nitride balls in a hybrid bearing configuration.
For example, a P4A designation defines a precision characteristic, while HC identifies ceramic ball material. A bearing with an HCP4A combination therefore includes both a hybrid ceramic ball specification and a P4A precision requirement. Always review the complete bearing number rather than treating HCP4A as a single performance code.
Open bearings are common in spindle systems where oil-air or other controlled lubrication is managed by the machine design. Selected sealed super precision bearings can help retain grease and reduce contaminant ingress, but the seal design, lubricant, heat generation, and permissible speed should be checked as part of the complete spindle arrangement.
Preload should not be guessed. Extra light, light, moderate, or heavy preload affects system rigidity, operating temperature, speed capability, and bearing life. Excessive preload can increase friction and heat generation, while insufficient preload may reduce rigidity and shaft positioning stability.
Key Specifications to Confirm Before Quotation
For a quotation, provide the complete bearing number, bore diameter, outside diameter, width, contact angle, precision class, ball material, preload class, matched arrangement, lubrication method, operating speed, operating temperature, shaft and housing fits, quantity, and any drawing or sample photos.
If the bearing is part of a matched set, also provide the complete arrangement and preload codes, such as DB, DF, DT, TBT, QBC, or QBT. A basic bearing number without the matching, precision, and preload suffixes may not be enough to identify the correct super precision bearing replacement.
SKF / FAG / NSK Replacement Notes
Many buyers search this category using SKF-style, FAG-style, NSK-style, GMN-style, NTN-style, or other super precision bearing numbers. TFL can help check replacement, alternative, cross-reference, or interchange options based on the complete designation, bearing dimensions, precision requirement, and application conditions.
Keep suffixes and designation elements such as ACD, CD, CE, P4A, HC, DGA, DGB, DGC, DB, DF, DT, TBT, QBC, QBT, GMM, and preload codes in the inquiry. Depending on the designation system, these codes may identify contact angle, internal design, ball material, precision class, preload, lubrication features, or matched arrangement. TFL does not claim that alternatives are original brand products or authorized replacements unless clearly stated.

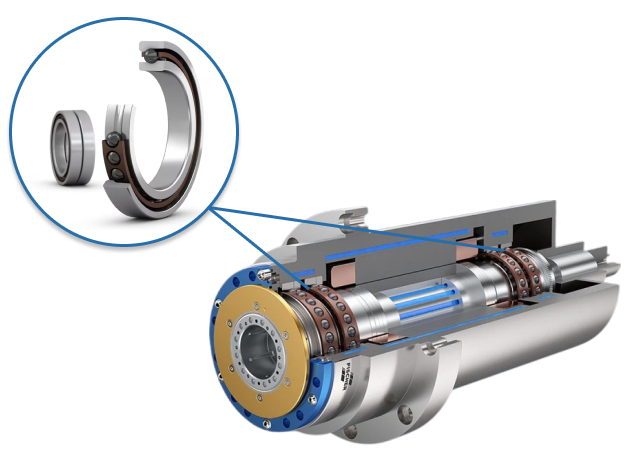

Common Applications
Super precision angular contact ball bearings are widely used in CNC machine tool spindles, grinding spindles, high-speed milling spindles, precision lathes, high-speed electric motors, precision pumps, compressors, measuring equipment, and other high-accuracy rotating assemblies.
They are especially suitable where speed, running accuracy, system rigidity, heat generation, preload stability, and shaft positioning are critical. For general industrial shaft arrangements where P4 or P4A-level precision is not required, a standard angular contact ball bearing may be a more economical option.
Selection Insight
Do not select a super precision angular contact ball bearing by bore size alone. Confirm contact angle, precision class, steel or ceramic balls, preload, matched arrangement, lubrication, operating speed, shaft and housing accuracy, and thermal behavior before approving a replacement.
Need a Super Precision Bearing Quote?
Send us the complete bearing number, contact angle, precision class, preload, matched arrangement, ball material, speed, lubrication requirement, quantity, drawing, or sample photos. We will review suitable super precision angular contact ball bearing options for your application.
Popular Models / High-Demand Models
Popular model examples from this product list include 7008 CE/P4A, 7008 CE/HCP4A, 7008 CE/P4ADBA, 7012 CD/P4A, 7208 ACD/P4A, 7208 ACD/HCP4A, 7215 ACD/P4A, and 71912 CD/P4A.
For a focused product page, 7008 CE/P4A is a strong priority model because it has a common 40 mm bore and clear relevance to high-speed spindle bearing applications. 7008 CE/HCP4A is also worth considering for buyers searching for hybrid ceramic super precision angular contact ball bearings and high-speed spindle replacement options.
Why Source Super Precision Bearings from TFL?
TFL / SDTFL Bearing is a bearing supplier and sourcing partner for industrial and precision bearing buyers. After customers confirm the model, drawing, sample, precision requirement, matched arrangement, or spindle application, we help source suitable super precision angular contact ball bearing options from qualified factory resources and coordinate availability, inspection, packaging, and shipment.
Before shipment, we check the agreed model, quantity, visible condition, packaging, and basic quality requirements. Matched sets, preload requirements, ceramic ball options, special lubrication, OEM marking, neutral packaging, and customized packaging can be discussed according to model, technical requirement, and order quantity.
You can browse the complete angular contact ball bearing range or read our guide on high precision bearings.
TFL / SDTFL Bearing is an independent bearing supplier and sourcing partner. Brand-style numbers and suffixes are used only for replacement, alternative, cross-reference, or interchange identification. Final suitability must be confirmed from the complete bearing dimensions, precision class, contact angle, ball material, preload, matched arrangement, lubrication, speed, shaft and housing requirements, and application conditions.
