TFL: Your Source for Precision Miniature Ball Bearings
Why Choose TFL for Small Ball Bearings?
Miniature Bearings Category
1,112 Products. Interchangeable with: EZO
Precision with Miniature Ball Bearings
When space is limited, precision is everything. TFL miniature ball bearings deliver ultra-smooth operation, minimal friction, and exceptional durability for your most demanding projects.
We manufacture reliability into every millimeter to ensure your equipment runs flawlessly:
• Bore Sizes: Ranging from 1mm to 10mm (Available in both Metric & Inch series).
• Precision Tolerances: Strictly controlled to ABEC-3, ABEC-5, and ABEC-7 standards.
• Material Options: Premium Chrome Steel for high-load capacity, and 440C Stainless Steel for superior corrosion resistance.
• Direct Replacements: Engineered to perfectly match EZO and NMB specifications.
Applications and Types of Miniature Bearings
TFL provides reliable, high-speed micro bearings for diverse industries where friction reduction is critical. We manufacture and customize bearings for:
✔ Medical & Dental: High-speed handpieces and surgical tools.
✔ Robotics & Drones: Lightweight, low-vibration joints and motors.
✔ RC Hobbies: High-RPM cooling fans and model engines.
✔ Precision Instruments: Flow meters and micro-motors.
Looking for a specific application? Our engineering team provides custom solutions.
Navigating Miniature Bearing Sizes and Dimensions
Selecting the right miniature bearing involves much more than matching the Inner Diameter (ID) and Outer Diameter (OD). In micro-scale applications, even a fraction of a millimeter in tolerance can significantly impact your motor’s performance.
Factors such as internal clearances, shield types (ZZ for low friction vs. 2RS for dust protection), dynamic load ratings, and operating speeds are crucial for long-term stability.
To explore these specific technical parameters, simply click through to our individual product detail pages. Each model features comprehensive specification tables, exact dimensions, speed limits, and brand cross-reference data—giving you the precise engineering information needed to verify your match with absolute confidence.
APPLICATION AREA
Agricultural Bearings
Heavy-duty agricultural bearings resist dust and mud, providing long-lasting reliability for tractors and harvesters in tough field operations.
Heavy Equipment (Construction & Mining)
Rugged bearings built to withstand extreme loads, shock, and severe contamination in mining and construction heavy machinery.
Industrial Bearings
Versatile industrial bearings enhance energy efficiency and stability in electric motors, pumps, and gearboxes across manufacturing sectors.
Automotive Bearings
High-performance automotive bearings for wheel hubs and drivetrains improve fuel efficiency and ensure smooth, safe vehicle operation in modern cars.
INTERCHANGEABLE BRANDS
TFL Bearings: High quality bearings, an ideal choice to replace SKF and FAG.
| TFL Bearing Series | EZO Equivalent | NMB Equivalent | Key Features & Applications | Explore |
|---|---|---|---|---|
|
Metric Series
|

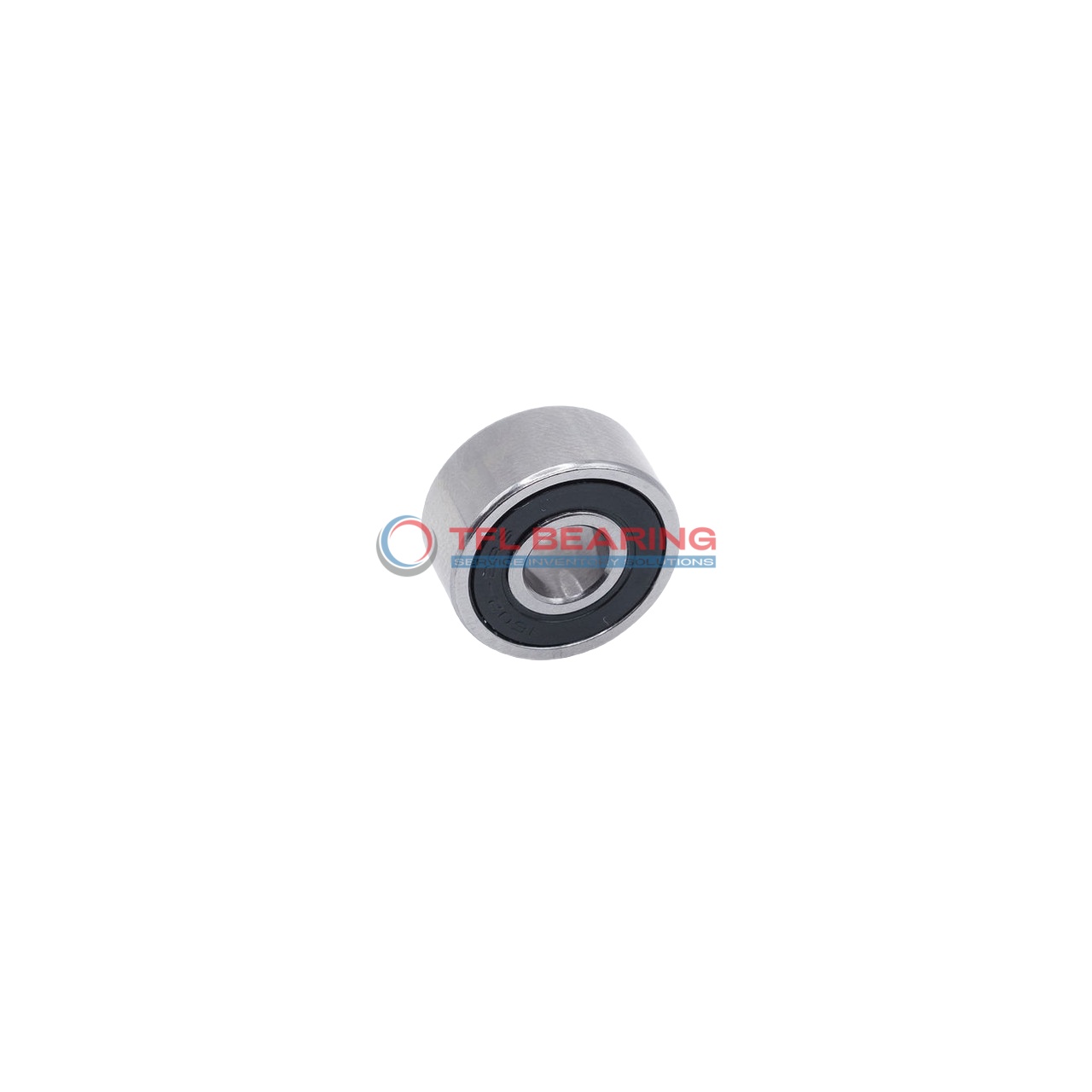

Metric (MR) | L Series | Standard high-speed micro applications. Available in open, shielded (ZZ), and sealed (2RS). |
View Metric ➔ |
|
Inch Series
|

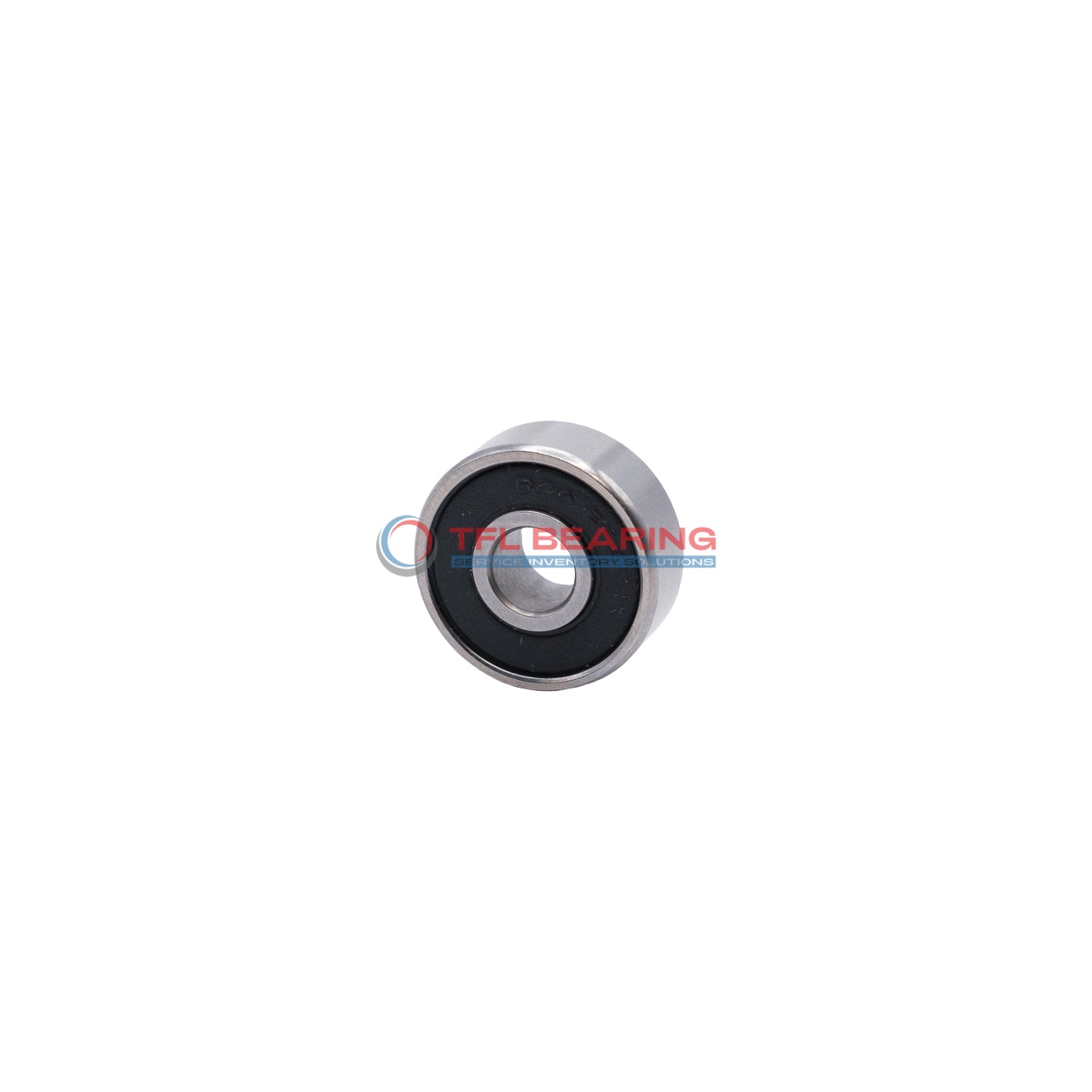

R Series | RI / R Series | Compact inch dimensions tailored for precision instruments and North American standards. |
View Inch ➔ |
|
Flanged Series
|

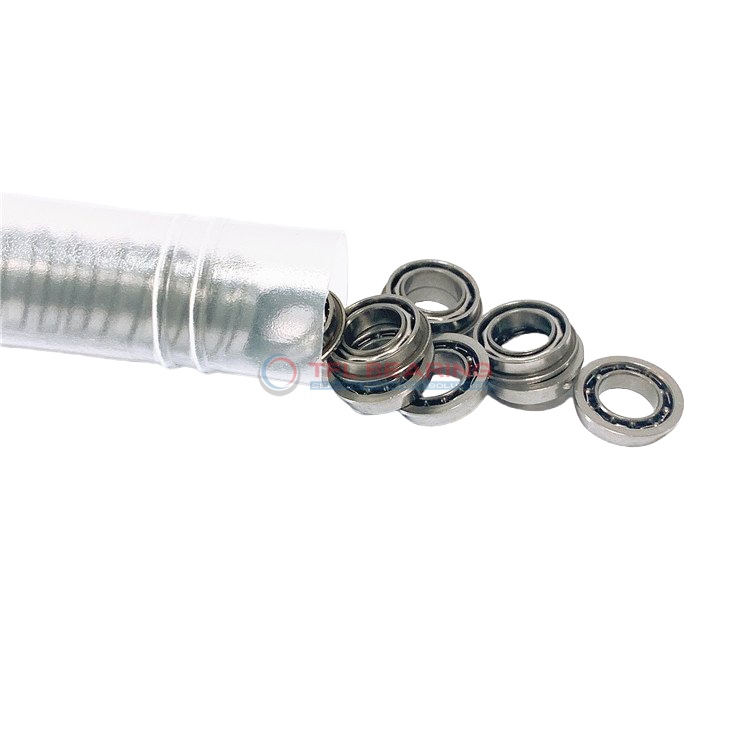

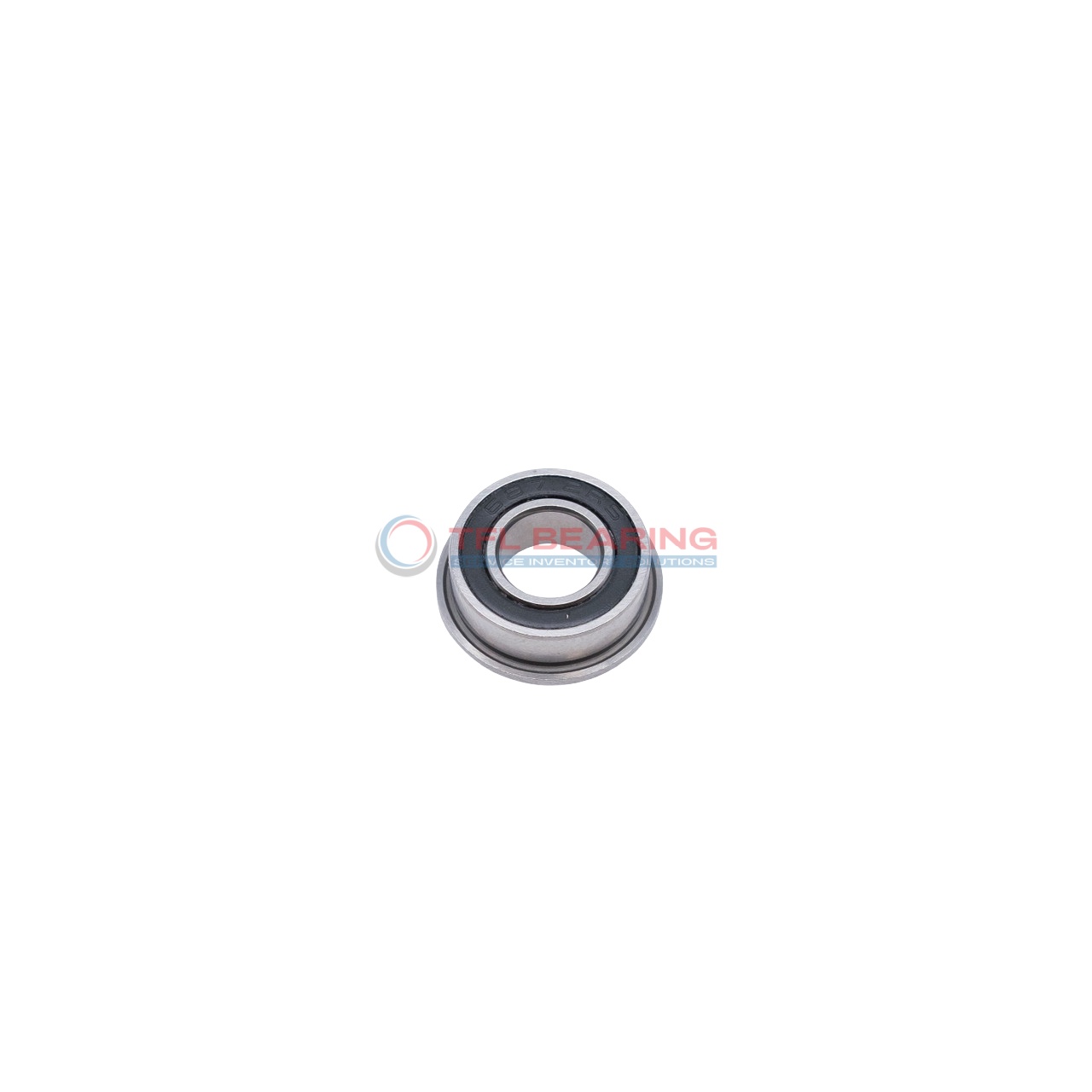

F / MF Series | LF / RF Series | Equipped with a locating flange on the outer ring for easy axial positioning and mounting. |
View Flanged ➔ |
|
Extended Inner Ring
|
W Series | WC Series | Slip-fit assembly designed to eliminate the need for washers or spacers. |
View Extended ➔ |
* Disclaimer: Original Equipment Manufacturer (OEM) names and series designations (e.g., EZO, NMB L-Series, RI-Series) are listed for cross-reference and compatibility purposes only. TFL Bearings is an independent manufacturer offering premium drop-in alternative solutions.
One-Stop Supply Chain Integration
Simplify your vendor management. As an integrated supplier, we consolidate diverse bearing requirements into a single, efficient channel. We manage inventory, quality control, and global logistics to save you time.
View Cross-Reference Guide
100% Interchangeable Brand Equivalents
Why pay a premium for a brand name? We provide precision-engineered, cost-effective equivalents for major global brands. Get the exact same dimensions, load capacities, and lifespan without compromising performance.
Explore Our Catalog
Certified Quality & Compliance
Trust is built on verified quality. Our manufacturing processes are strictly ISO 9001 certified, ensuring consistent, defect-free production. All our products are fully RoHS and REACH compliant.
Contact for Compliance DetailsWhy Choose TFL Miniature Bearings?
The Anatomy & Mechanics of Miniature Precision Bearings
At the core of every high-performance compact device is a meticulously engineered miniature ball bearing. Despite their diminutive size, these bearings feature the exact same fundamental anatomy as their larger counterparts: an inner ring, an outer ring, precision-grade rolling elements (balls), and a retainer (cage) that ensures even spacing. The mechanical advantage of custom miniature bearing lies in their ability to manage complex load distributions within tight spatial constraints. They are primarily designed to accommodate substantial pure radial loads while also possessing the structural rigidity to handle light axial loads in both directions. By minimizing the contact area between the balls and the raceways, these miniature components significantly lower starting torque, which is critical for reducing power consumption and heat generation in sensitive applications.
Performance Capabilities: High Speeds & Precision for Compact Designs
When engineering compact mechanical systems such as medical devices, aerospace instruments, or high-speed electric motors, operational reliability is paramount. The primary performance advantage of miniature precision bearings is their exceptional capability to sustain ultra-high rotational speeds (RPM) without generating destructive resonance or excessive heat. This directly translates to minimized energy loss and significantly reduced machine downtime for end-users.
Beyond speed, these bearings excel in vibration control. By maintaining strict geometric tolerances and utilizing highly polished raceways, they ensure that even the smallest electric motors run smoothly and quietly under continuous operation. This effectively resolves the common pain points of friction-induced wear and premature failure in restricted physical spaces.
Expert Insight from Jessica Jia, Chief Technical Consultant
“In the pursuit of low noise for high-speed micro-motors, many engineers instinctively specify the highest ABEC-7 tolerances. However, extreme precision alone is not enough. If the internal clearance (such as C3 or C4) doesn’t perfectly match your operating temperature and shaft press-fit requirements, abnormal running noise will still occur. Our technical team is always ready to suggest the optimal clearance calculations, but the final choice of hardware configuration remains entirely with the customer.”
Configuration Options: Materials, ABEC Tolerances & Metric/Inch Sizes
We supply a comprehensive dimension library covering both metric and inch miniature ball bearings, ensuring seamless integration into any global engineering project. When it comes to bearing materials, selecting the right alloy is crucial for longevity. We offer high-carbon 52100 chrome steel for superior wear resistance in standard environments, and 440C stainless steel for exceptional corrosion resistance in harsh, medical, or food-grade applications. To further protect the rolling elements, choosing the correct shielding or sealing is vital. TFL Bearing provides expert configuration recommendations for your specific application, but the final choice of hardware parameters and configurations remains entirely with the customer based on their specific application needs.| Seal/Shield Type | Design Feature | Speed Limit (RPM) | Contamination Protection |
|---|---|---|---|
| Open (No Shield) | Minimum friction, easy relubrication | Maximum | Low |
| ZZ (Metal Shields) | Non-contact dust protection | Very High | Medium |
| 2RS (Rubber Seals) | Contact sealing against moisture and dirt | Moderate | Excellent |
Premium Equivalents for SKF, NMB, and EZO
For B2B procurement managers seeking to optimize their supply chain costs without compromising on precision, TFL Bearing offers premium equivalents to leading global brands such as SKF, NMB, and EZO. Our cross-reference solutions guarantee exact dimensional matching and equivalent ABEC tolerance levels, providing a highly cost-effective alternative for your precision instrument assemblies.TFL Bearing Quality & Global Supply Readiness
As a trusted provider of premium bearing solutions, TFL Bearing operates a robust global supply network backed by strict quality control protocols. Our comprehensive quality management system is fully compliant with ISO 9001 and IATF 16949 standards, ensuring that every batch of metric or inch miniature bearings meets rigorous industrial specifications. With a substantial ready-to-ship inventory and scalable order fulfillment capabilities, we are equipped to support both rapid prototyping needs and large-scale OEM production runs.
Real-World Applications & Case Studies
Our premium miniature ball bearings are engineered to solve complex mechanical challenges across various demanding industries. In the Medical & Dental sector, our stainless steel variants ensure surgical drills and handheld instruments operate smoothly at ultra-high speeds with minimal vibration. In the field of Precision Robotics and UAVs, our low-torque metric miniature bearings are critical for optimizing the battery life and stabilization of high-frequency micro-motors. By significantly reducing operational friction, tiny ball bearings used in precision instruments help our B2B clients minimize maintenance downtime and extend the lifecycle of their flagship equipment.Ready to Optimize Your Compact Mechanical Designs?
Whether you need customized dimensions, specific ABEC tolerances, or a reliable NMB equivalent, our technical supply team is ready to assist. TFL Bearing provides expert configuration recommendations for your specific application, but the final choice of hardware parameters and configurations remains entirely with the customer.
Request a Custom Quote & Send Your DrawingsFREQUENTLY ASKED QUESTIONS
What size typically defines a miniature bearing?
How do miniature ball bearings work?
Can I get sealed miniature ball bearings?
Where can I purchase miniature bearings?
Can you provide equivalents for SKF, NMB, or EZO miniature bearings?
Yes, we supply premium bearing equivalents that match the exact dimensional and precision standards (ABEC ratings) of major global brands like SKF, NMB, and EZO, offering a cost-effective solution for your procurement needs.
What is your supply capacity for custom miniature bearings?
Through our strict quality control and extensive supply network, we maintain a robust inventory of standard metric and inch sizes for immediate dispatch. For customized dimensions or specific clearances, our lead times are highly competitive to keep your production lines running.
