Miniature Thrust Ball Bearings

Miniature thrust ball bearings are small diameter thrust bearings designed to support axial load in compact rotating assemblies where standard thrust bearings are too large. This TFL product list covers metric F series miniature thrust bearings from 2 mm to 10 mm bore, including flat raceway and grooved raceway options such as F3-8M, F5-11M, F6-12M and F8-16M. Buyers can compare bore diameter, outer diameter, shaft washer diameter, width, ball quantity, ball diameter, dynamic and static thrust load, speed and weight. These small thrust bearings are commonly used in precision instruments, miniature gearboxes, optical adjustment mechanisms, small actuators, robotics and compact electromechanical devices. TFL helps customers source EZO-style replacement bearings based on part number, drawings, samples or application requirements.

Design for Pure Axial Load Management

The core purpose of miniature thrust ball bearings is to handle thrust load (axial load) – forces acting directly along the shaft’s axis.

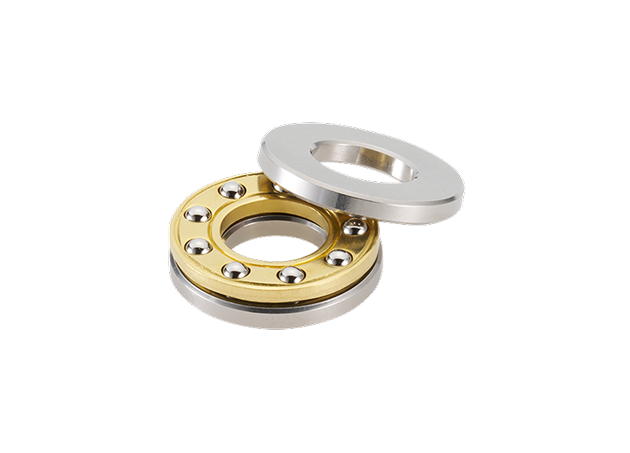

Their internal design uses small balls rolling between two thrust washers (rings), is specifically optimised for this type of force. It ensures smooth, reliable axial movement under load, making them the ideal choice when the primary force is pushing or pulling along the shaft.

Choose these for efficient axial control in your application.

Extremely Compact for Tight Spaces

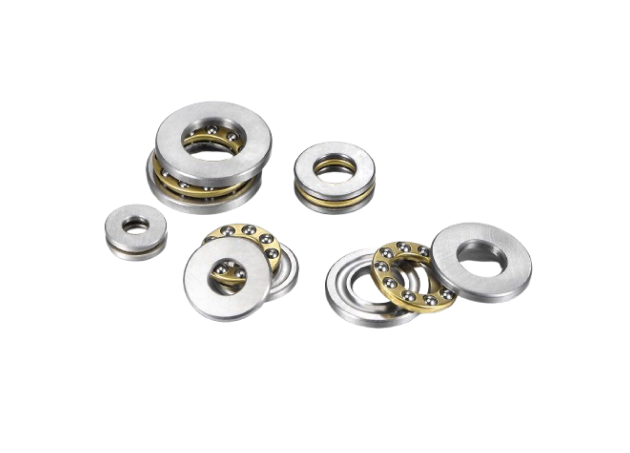

As “miniature” means, these thrust bearings boast incredibly small dimensions (bore, outer diameter, width).

This minimal form is perfect for applications where space is severely limited, such as small measuring instruments, micro gearboxes, or miniature actuators.

Integrating efficient thrust load management into tiny devices is simple with these ball bearings, allowing for significant product miniaturisation.

Select these when every millimeter counts.

Provides Precise Axial Shaft Location

By effectively managing thrust load, Miniature Thrust Ball Bearings ensure precise axial positioning of the shaft relative to its housing.

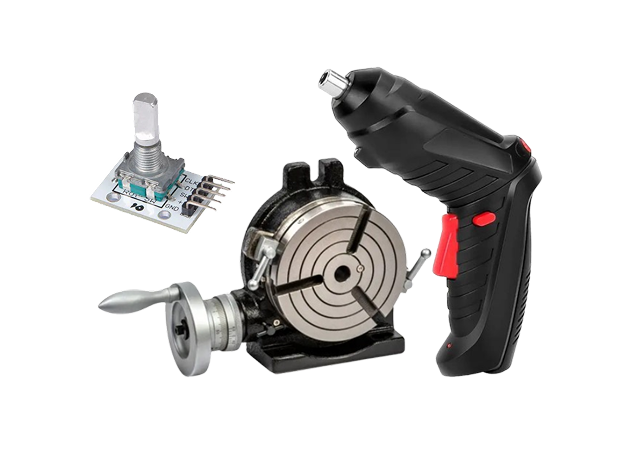

This means minimal unwanted axial movement or “clearance.” This accuracy is vital for applications needing exact alignment, such as rotary encoders, small indexing tables, or sensitive adjustment mechanisms.

If you need to purchase bearings for applications demanding high axial precision, miniature thrust ball bearings is your ideal choice.

Have a Question?

SPEAK WITH AN EXPERIENCED TEAM MEMBER

Miniature Thrust Ball Bearing Selection Guide

Miniature thrust bearings are compact axial bearings used when a small shaft requires thrust load support with very limited installation space. This page focuses on EZO-style F series miniature thrust ball bearing replacement options, including 2 mm to 10 mm bore sizes, open designs, chrome steel rings and balls, selected brass cage configurations, and equivalent sourcing options for common EZO models.

How to Choose This Bearing Type

Choose a miniature thrust ball bearing when the primary load acts along the shaft axis. These bearings are designed for axial load support and should not be used for applications with significant radial load. Start by confirming the shaft diameter, available housing space, axial load, operating speed, washer support surface, lubrication method, and whether the application requires a flat raceway or grooved raceway design.

Common Series and Model Range

Model Range	Size Coverage	Selection Notes
F2-6 to F4-10M	2 mm to 4 mm bore	Suitable for very small shafts, light axial loads, and compact precision mechanisms.
F5-10M to F6-14M	5 mm to 6 mm bore	Common range for miniature gearboxes, small actuators, instruments, and compact devices.
F7-13M to F10-18M	7 mm to 10 mm bore	Higher load options within the EZO miniature thrust bearing replacement range.

How to Read an EZO Miniature Thrust Bearing Number: Example F6-12M

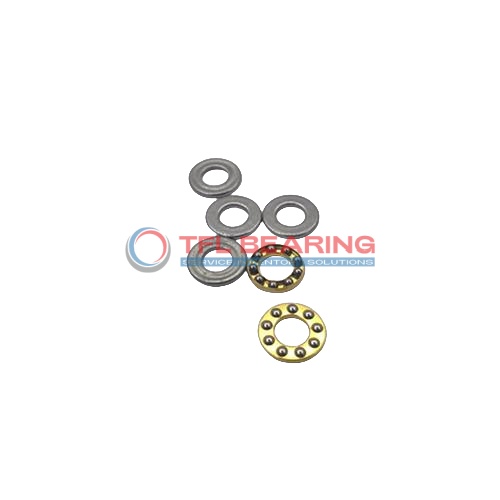

EZO miniature thrust ball bearing numbers typically identify the bearing series, bore size, outside diameter, and raceway configuration. For example, F6-12M is an EZO-style miniature thrust bearing with a 6 mm bore, 12 mm outside diameter, and 4.5 mm width. In the EZO designation system, the “M” suffix identifies the grooved raceway version. When selecting a replacement, confirm dimensions, raceway type, load requirements, and application conditions.

Code Element	Example	Meaning for Selection
F	F6-12M	EZO miniature thrust ball bearing series.
6	F6	6 mm bore diameter.
12	F6-12	12 mm outside diameter.
M	F6-12M	Grooved raceway version; compare with flat raceway versions before replacement.

Flat Raceway vs Grooved Raceway Selection

EZO miniature thrust bearings are available with different raceway configurations. Flat raceway models provide a simple and compact solution for light axial load applications, while grooved raceway models identified with an “M” suffix provide more controlled ball guidance under axial load conditions. When replacing an EZO F series bearing, confirm whether the original bearing uses a flat or grooved raceway instead of selecting only by bore and outside diameter.

Key Specifications to Confirm Before Quotation

Before requesting a quote, confirm the bearing number, bore diameter, outside diameter, shaft washer diameter, width, washer type, ball quantity, ball diameter, dynamic thrust load, static thrust load, maximum speed, lubrication requirement, and operating temperature. If the original number is unclear, send photos, drawings, or shaft and housing dimensions for cross-reference support.

EZO Miniature Thrust Bearing Replacement Notes

Many buyers search EZO F series miniature thrust ball bearings when they need a replacement source for existing equipment. TFL can help compare EZO model numbers, including F3-8M, F4-10M, F5-11M, F6-12M, F8-16M, and F10-18M, based on dimensions, raceway type, cage configuration, load requirements, and application conditions.

TFL provides alternative sourcing options for EZO-style miniature thrust bearings. EZO part numbers are referenced only for identification, replacement, and cross-reference purposes. TFL does not claim to be EZO or an authorized EZO distributor unless specifically stated.

Common Applications

EZO miniature thrust ball bearing replacement options are used in precision instruments, optical adjustment mechanisms, miniature gearboxes, small rotary tables, compact actuators, robotics, medical devices, 3D printers, small pumps, and light-duty mechanical assemblies where axial positioning is required in a very small installation space.

Popular Models / High-Demand Models

Popular EZO replacement models in this range include F3-8M, F4-10M, F5-11M, F6-12M, F6-14M, F7-15M, F8-16M, F8-19M, and F10-18M. F6-12M is a strong priority model because it represents a common 6 mm bore EZO miniature thrust bearing replacement with grooved raceway configuration and broad miniature equipment applications.

Engineering Note

Miniature thrust ball bearings should not be selected as radial bearings. If the shaft has both radial and axial load, confirm whether a miniature deep groove bearing, angular contact bearing, or another combined bearing arrangement is more suitable.

Need Help Matching an EZO Miniature Thrust Bearing?

Send us the EZO part number, drawing, sample photos, or application conditions. TFL can help compare dimensions, raceway type, load rating, speed, and available replacement sourcing options before shipment coordination.

Request Bearing Support

TFL / SDTFL Bearing is a bearing supplier and sourcing partner. EZO part numbers are referenced only for identification, replacement, and cross-reference purposes. We help customers source suitable standard or customized bearing alternatives from qualified factory resources and inspect model, quantity, appearance, packaging, and basic quality requirements before shipment.

FREQUENTLY ASKED QUESTIONS

Can I use a miniature thrust ball bearing for radial loads?

No, Miniature Thrust Ball Bearings are designed specifically for axial (thrust) loads only and cannot support radial loads effectively.

If a miniature thrust ball bearing is subjected to a radial load, it will cause abnormal load distribution and intensify friction, which in turn will shorten the bearing life or even lead to failure.

What are some typical miniature thrust bearing applications?

Common thrust bearing applications include rotating fixtures, smart watch, lens focusing mechanism, surgical instruments, and specialized hand tools requiring axial support.

Do these miniature thrust bearings need grease?

Yes, proper lubrication (typically grease or oil) is essential for the smooth operation and longevity of any thrust bearing, including miniature types.
