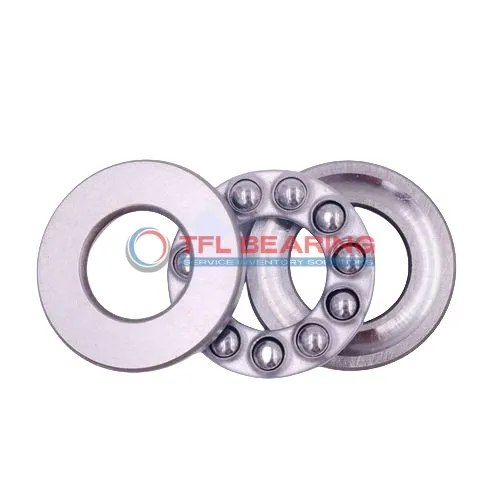

Miniature Thrust Ball Bearings F6-12

Miniature Thrust Ball Bearings F6-12

The F6-12 is a compact thrust ball bearing measuring just 6mm by 12mm by 4.5mm, crafted from sturdy chrome steel for reliable performance. It supports thrust loads up to 360 lbf and operates smoothly at speeds up to 5000 RPM.

Its open design and brass cage ensure durability, while the flat raceway washers provide stable load distribution. Regular lubrication is needed to maintain optimal performance.

This bearing is ideal for small machinery or precision instruments where space is limited. It performs well in temperatures ranging from -30°C to 110°C.

Weighing only 2.5g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, making it a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F6-12
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 12 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Outer Dia Shaft Washer 11.8 mm
  • Width 4.5 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 8
  • Ball Dia 2.000 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Washers Type flat raceway
  • For Load Direction Thrust
  • Inner Ring Type Standard
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Thrust Load 360 lbf
  • Static Thrust Load 282 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Weight 2.5 g
  • Price（$） 1.55
Miniature Thrust Ball Bearings F6-12 dimension drawing
Download DWG Download PDF

Features

Why Choose F6-12 Bearing for Precision Tasks?

F6-12 Bearing features a compact design with dimensions of 6 mm×12 mm×4.5 mm, ideal for precision applications.
Its chrome steel construction ensures durability and resistance to wear, even under thrust loads.

The brass cage maintains ball alignment, contributing to smooth operation and reduced friction.
With a dynamic thrust load capacity of 360 lbf, it handles demanding tasks efficiently.

F6-12 Bearing operates within a temperature range of -30° to 110 °C, suitable for various environments.
Its open design simplifies lubrication, ensuring consistent performance over time.

The bearing’s lightweight construction at just 2.5 g makes it perfect for miniature applications.
It reaches speeds up to 5,000 rpm, balancing performance and reliability.

Application

Where Is F6-12 Bearing Used?
F6-12 Bearing is commonly used in small industrial equipment like precision instruments and miniature gearboxes, where its compact size and thrust load capacity are beneficial. The brass cage ensures smooth operation even in high-speed scenarios.

In automotive applications, F6-12 Bearing fits well in compact components such as electric window mechanisms or small actuators. Its chrome steel construction provides durability while maintaining lightweight performance.

For medical devices, F6-12 Bearing is ideal for delicate instruments like dental tools or handheld diagnostic equipment. The open design allows for easy lubrication, ensuring long-term reliability in critical environments.

In consumer electronics, F6-12 Bearing can be found in devices like small fans or printer mechanisms. Its metric sizing makes it a versatile choice for various compact machinery needs.
