Angular Contact Ball Bearing Supplier for Industrial Sourcing
TFL is an angular contact ball bearing supplier helping industrial customers solve sourcing challenges in precision, load capacity, and application matching.
We offer single bearings, matched pairs, and high-precision options used in machine tools, spindles, pumps, and high-speed equipment. Whether SKF equivalent models, preload types, or contact angle options, we help select the right solution for stable operation.
By integrating multiple factory resources, TFL provides flexible sourcing across different quality levels, helping customers balance performance, cost, and supply stability.
Why TFL for Angular Contact Ball Bearings?

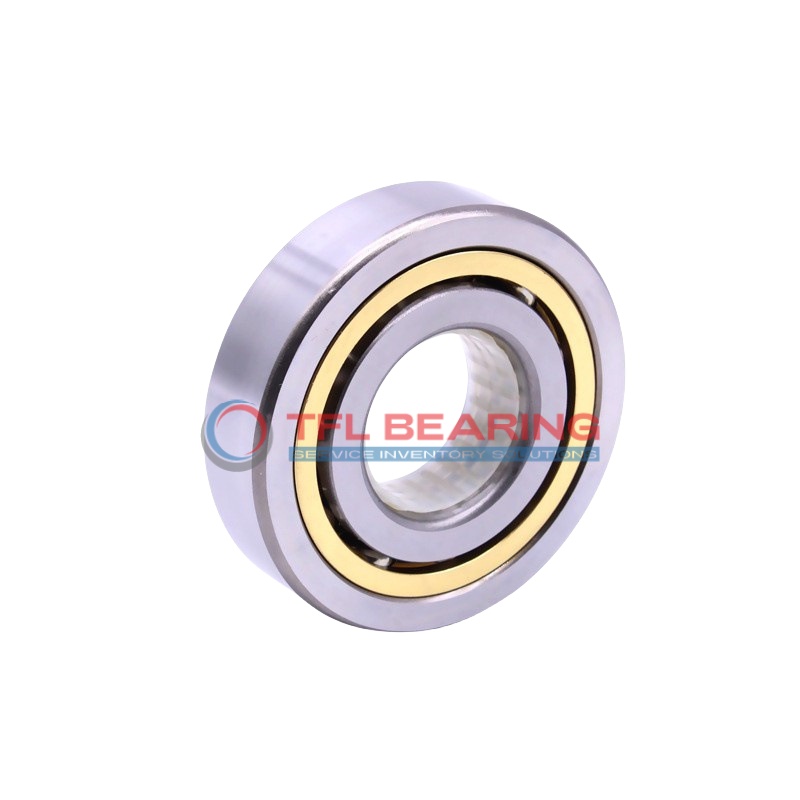

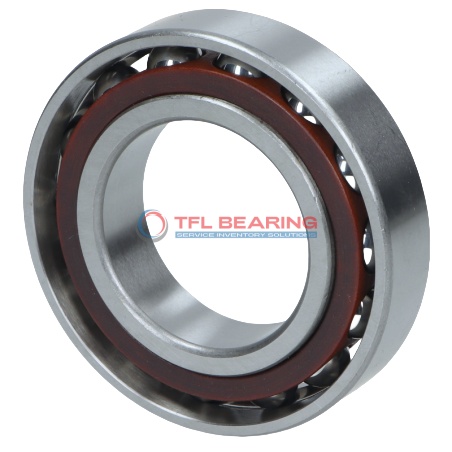

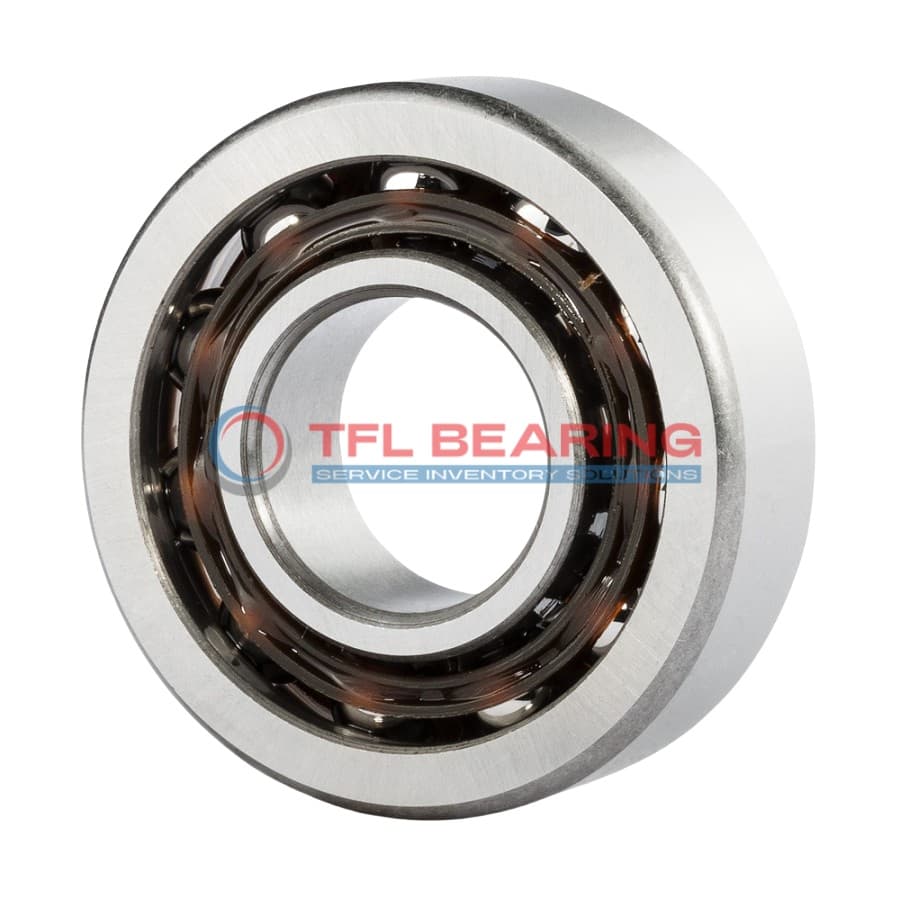

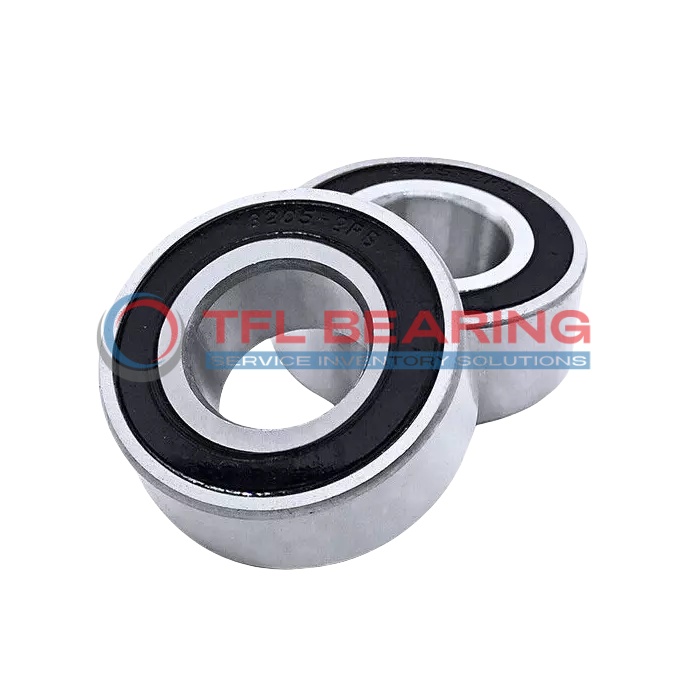

Angular Contact Ball Bearings Category
9,230 Products. Interchangeable with: SKF

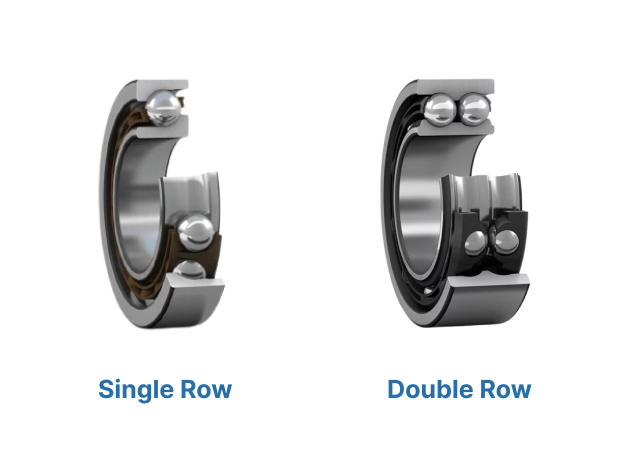

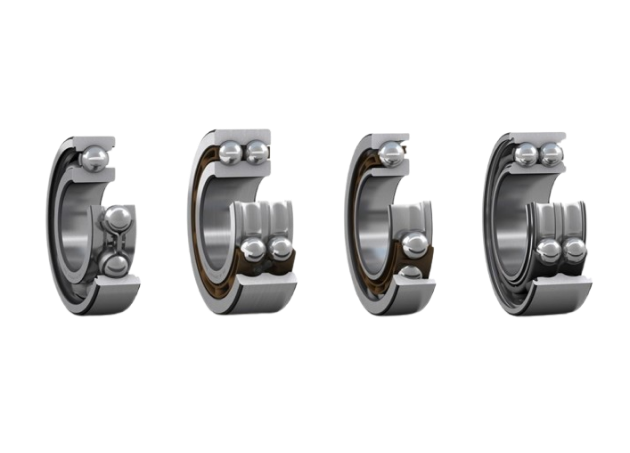

Single vs. Double Row Angular Contact Ball Bearings
Versatility of Double Row Angular Contact Bearings

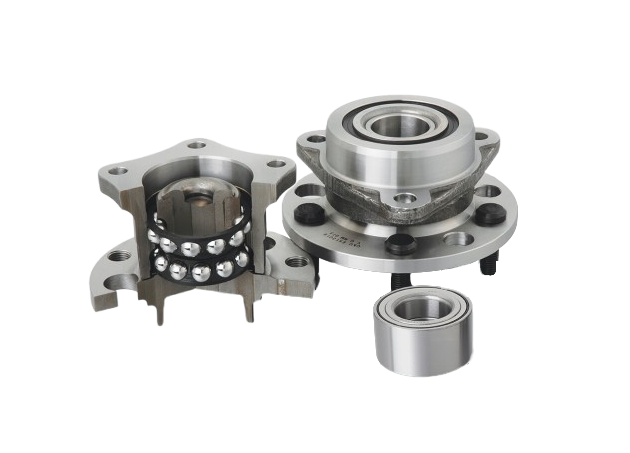

Mounting and Applications: Bearing Arrangement Back to Back
APPLICATION AREA
Medical Bearings
Quiet, hygienic, and precise bearings designed for MRI scanners and surgical robots ensure reliability in critical medical environments.
Marine Bearings
Corrosion-resistant bearings maximize performance in marine propulsion and steering systems, ensuring durability in harsh saltwater conditions.
Agricultural Bearings
Heavy-duty agricultural bearings resist dust and mud, providing long-lasting reliability for tractors and harvesters in tough field operations.
Industrial Bearings
Versatile industrial bearings enhance energy efficiency and stability in electric motors, pumps, and gearboxes across manufacturing sectors.
INTERCHANGEABLE BRANDS
TFL Bearings: High quality bearings, an ideal choice to replace SKF and FAG.
One-Stop Supply Chain Integration
Simplify your vendor management. As an integrated supplier, we consolidate diverse bearing requirements into a single, efficient channel. We manage inventory, quality control, and global logistics to save you time.
View Cross-Reference Guide
100% Interchangeable Brand Equivalents
Why pay a premium for a brand name? We provide precision-engineered, cost-effective equivalents for major global brands. Get the exact same dimensions, load capacities, and lifespan without compromising performance.
Explore Our Catalog
Certified Quality & Compliance
Trust is built on verified quality. Our manufacturing processes are strictly ISO 9001 certified, ensuring consistent, defect-free production. All our products are fully RoHS and REACH compliant.

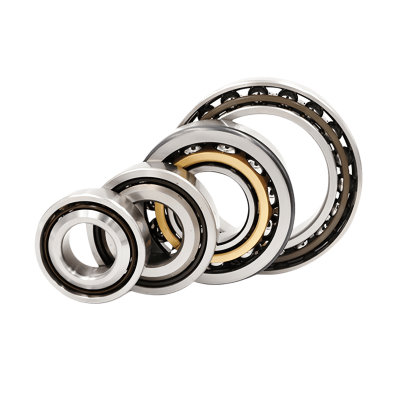

Contact for Compliance DetailsANGULAR CONTACT BALL BEARING FOR HIGH SPEED
TFL is an angular contact bearing supplier with extensive experience supporting machine tool spindle applications. As a bearing trading company, we help customers source suitable angular contact bearings based on speed, precision grade, preload configuration, and budget requirements.
Many of our customers use angular contact bearings in CNC machine tool spindles, grinding machines, servo motors, and other precision rotating equipment. Over the years, we have supplied a large number of spindle bearing solutions involving P4 precision grades, matched sets, high-speed grease lubrication, and customized packaging requirements.
What Is an Angular Contact Bearing?
Angular contact ball bearings are designed to support combined radial and axial loads at the same time. Unlike deep groove ball bearings, the raceway structure creates a contact angle between the balls and raceways, allowing the bearing to handle axial force more effectively.
Compared with deep groove ball bearings, angular contact bearings provide:
- Higher axial load capacity
- Better rigidity
- Higher speed capability
- More precise positioning performance
- Better suitability for preload installation
Expert Insight
Deep groove ball bearings are still excellent products for many industrial applications. However, for high-speed and high-precision spindle systems, angular contact bearings are usually the preferred solution because of their rigidity and axial support performance.
What Does the Contact Angle Mean?
The contact angle is one of the most important specifications of an angular contact bearing. Different contact angles are suitable for different operating conditions.
In general:
- Smaller contact angles are better for high-speed operation
- Larger contact angles provide stronger axial load capacity
Different bearing brands use different coding systems for contact angles. At TFL, our naming system mainly follows SKF-style configurations. However, we can also provide compatible configurations based on other brand standards according to customer requirements.
| Brand | Default Angle (Code) | 15° | 24° / 25° | 40° / 45° | Other Angles |
|---|---|---|---|---|---|
| TFL | 40° (B) | C | AC | B | Custom |
| SKF | 40° (B) | C | AC | B | Custom |
| NSK | 15° | C | A | B | Available |
| FAG | 40° | C | E | B | Available |
Different factories may use slightly different coding systems. Always confirm the exact bearing configuration before ordering.
Need a Custom Angular Contact Bearing Solution?
Can’t find your brand or contact angle specification in the table? TFL can help you source equivalent bearings, OEM configurations, and customized spindle bearing solutions.
Why Are Angular Contact Bearings Usually Installed in Pairs?
Most angular contact bearings are installed in matched pairs, triplex sets, or quadruplex sets. This is because a single angular contact bearing normally supports axial load in only one direction.
Pairing bearings improves:
- Rigidity
- Positioning accuracy
- Axial stability
- Load distribution
- High-speed performance
| Arrangement | Common Name | Main Features | Typical Applications |
|---|---|---|---|
| DB(O-arrangement) | Back-to-Back | High rigidity and moment resistance | Machine tool spindles |
| DF(X-arrangement) | Face-to-Face | Better misalignment tolerance | General precision machinery |
| DT | Tandem | Higher axial load capacity | Heavy axial load systems |
| TBT / QBC | Triple / Quad Set | Extremely high rigidity | High-end CNC spindles |
From the outside appearance, matched bearings can usually be identified through direction arrows, matching marks, or sequential serial numbers.
How to Choose the Correct Contact Angle?
Selecting the wrong contact angle can cause excessive heat, vibration, reduced spindle rigidity, poor machining accuracy, and premature bearing failure.
For example:
- High-speed grinding spindles usually prefer smaller contact angles like 15°
- Heavy cutting machine tools often require larger contact angles like 40°
Professional Recommendation
If you are unsure which angular contact bearing configuration your equipment requires, TFL can provide technical consultation based on spindle speed, load conditions, lubrication methods, and installation structure.
Why Are Angular Contact Bearings Widely Used in Machine Tool Spindles?
One of the most common applications for angular contact bearings is the machine tool spindle industry. CNC spindles require extremely high rotational accuracy, rigidity, and thermal stability.
Most spindle systems use P4 precision grade bearings. In some high-precision spindle assemblies, runout exceeding 0.0004 mm may already be considered unacceptable.
Machine tool spindles are highly sensitive systems operating under high speed and precision conditions. Angular contact bearings are ideal because they can maintain preload, rigidity, and accuracy during operation.
Other Applications of Angular Contact Bearings
Besides machine tool spindles, angular contact bearings are also widely used in:
- Servo motors
- Ball screw support units
- Industrial pumps
- Gearboxes
- Robotics
- Medical equipment
- Printing machinery
- Textile equipment
Important Installation Notes
Angular contact bearings normally require preload installation, and a single angular contact bearing should never be used alone to support bidirectional axial loads.
Incorrect preload or improper arrangement is one of the most common reasons for early bearing failure.
We regularly receive cases where customers experience rapid bearing damage simply because the wrong contact angle or arrangement was selected. Our engineering team can analyze failure causes and recommend optimized solutions.
Choosing the Right Bearing Matters More Than Just Price
Many users focus only on purchasing cost. However, selecting the wrong bearing may result in:
- Short service life
- Machine downtime
- Poor machining accuracy
- Spindle damage
- Higher long-term maintenance costs
At TFL, we help customers balance performance, precision, lead time, and budget requirements to achieve a more reliable spindle solution.
Our Purchasing Process
Our workflow is straightforward:
- Customers send bearing models or application requirements
- We match suitable factories and configurations
- The factory prepares or produces the bearings
- We inspect the products before shipment
- Products are repacked and shipped to customers worldwide
Customized Packaging and OEM Services
In addition to supplying bearings, we also support:
- Customized packaging
- OEM branding
- Laser marking
- Neutral packaging
- Mixed model consolidation
- Export packing solutions
Need Help Choosing Angular Contact Bearings?
Whether you need spindle bearings, matched bearing sets, or customized configurations, TFL can help you source suitable angular contact bearing solutions based on your equipment requirements.
