Choose TFL Electrically Insulated Deep Groove Ball Bearings
Explore more about TFL Bearing

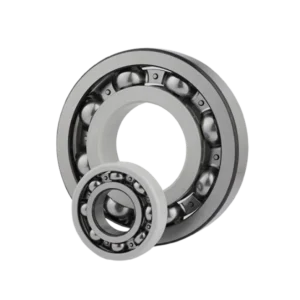

Electrically Insulated Deep Groove Ball Bearings Category
Prevent Electrical Damage, Extend the Service Life of Bearings
Inheriting All the Advantages of Deep Groove Ball Bearings
Choose TFL's Electrically Insulated Bearings
APPLICATION AREA
Medical Bearings
Quiet, hygienic, and precise bearings designed for MRI scanners and surgical robots ensure reliability in critical medical environments.
Marine Bearings
Corrosion-resistant bearings maximize performance in marine propulsion and steering systems, ensuring durability in harsh saltwater conditions.
Agricultural Bearings
Heavy-duty agricultural bearings resist dust and mud, providing long-lasting reliability for tractors and harvesters in tough field operations.
Heavy Equipment (Construction & Mining)
Rugged bearings built to withstand extreme loads, shock, and severe contamination in mining and construction heavy machinery.
INTERCHANGEABLE BRANDS
TFL Bearings: High quality bearings, an ideal choice to replace SKF and FAG.
One-Stop Supply Chain Integration
Simplify your vendor management. As an integrated supplier, we consolidate diverse bearing requirements into a single, efficient channel. We manage inventory, quality control, and global logistics to save you time.
View Cross-Reference Guide
100% Interchangeable Brand Equivalents
Why pay a premium for a brand name? We provide precision-engineered, cost-effective equivalents for major global brands. Get the exact same dimensions, load capacities, and lifespan without compromising performance.
Explore Our Catalog
Certified Quality & Compliance
Trust is built on verified quality. Our manufacturing processes are strictly ISO 9001 certified, ensuring consistent, defect-free production. All our products are fully RoHS and REACH compliant.
Contact for Compliance DetailsFREQUENTLY ASKED QUESTIONS
How can I determine if I need to replace with an electrically insulated deep groove ball bearing?
- Analyze the working environment: If your equipment uses a variable frequency drive (VFD), especially for large power motor equipment, it is very necessary to replace the electrically insulated bearing to reduce the downtime caused by bearing problems.
- Observe the bearing condition: If the bearing shows vibration and noise, temperature rise, and deterioration of the lubricant, it may be an abnormality caused by electrical corrosion.
- Check the bearing damage: If the bearing fails prematurely or has small pits on the surface or the raceway discoloration, it is very necessary to replace the electrically insulated deep groove ball bearing at this time.
Will replacing the electrically insulated deep groove ball bearing affect the bearing's load and speed and other attributes?
- Insulated coating deep groove ball bearing: This type of bearing has the same dynamic and static load capacity, speed, and bearing size as the standard bearing of the same model. It can be directly replaced on a 1:1 basis and is the most cost-effective and efficient electrical insulation solution.
- Hybrid ceramic deep groove ball bearing: Compared with the standard bearing of the same model, this type of bearing has a significantly increased speed capacity due to the hybrid ceramic rolling elements, but the dynamic load is slightly lower than that of the all-steel bearing of the same model. Before replacement, you may need to reconsider the load and speed requirements.
Are roller bearings more expensive than ball bearings?
- Severe mechanical shock and improper installation
- Improper clearance fit of the bearing housing or poor machining accuracy, causing significant squeezing force and damaging the coating
- Extreme vibration or huge impact loads
- Exposure to highly corrosive chemical environments
Do your electrically insulated deep groove ball bearings meet international quality standards?
OUR PROCESS
Initial Contact
Specialists Review
Needs
Our Engineers Help YouChoose The RightBearings
Option To Visit OurManufacturing Plant
Your entire order is
delivered.
We provide ongoingproduct support
Insulated Deep Groove Ball Bearings: Premium Replacements
Your Trusted Insulated Bearing Supplier: Drop-In Replacements for Major Brands.
When buying bearings for Variable Frequency Drive (VFD) motors or high-speed generators, electrical damage is a top cause of unexpected machine failure. As a specialized insulated bearing supplier, we connect you directly with top-tier factories that master advanced ceramic coating technology. This means you can get high-performance Insulated Deep Groove Ball Bearings that act as perfect drop-in replacements for expensive international brands. You get the exact same high-speed performance and electrical protection while heavily reducing your sourcing costs and wait times.
What Are Insulated Deep Groove Ball Bearings?

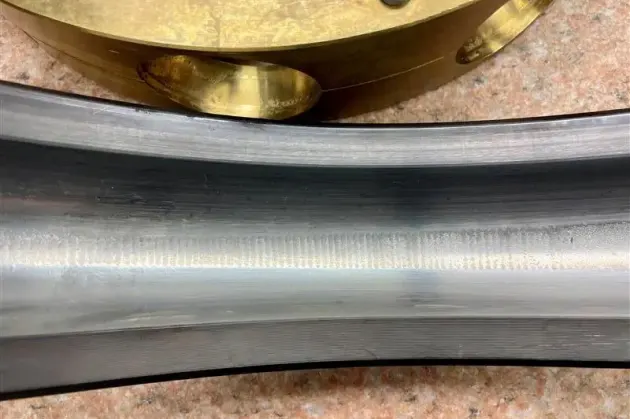

When a VFD runs a motor, it often creates stray electrical currents. If these currents travel through the inside of a bearing, they create tiny electrical sparks. Over time, these sparks melt the metal, causing a “washboard” pattern on the raceway (called fluting) and ruining the grease. Our insulated bearings stop this by using an advanced plasma spray process. A tough layer of aluminum oxide (Al2O3) ceramic is sprayed onto the inner or outer ring and sealed with resin. This coating easily blocks stray currents of 1000V to over 3000V.
Unlike insulated roller bearings (used for heavy, slow loads like wind turbines), Insulated Deep Groove Ball Bearings are built for high speed:
- Low Friction & High Speed: The ball design (point contact) creates very little turning resistance, making it perfect for the high-speed demands of industrial motors.
- Quiet Operation: They maintain very low noise and vibration levels even at top speeds.
- Universal Fit: They are the standard choice for the non-drive end (floating end) of industrial electric motors.

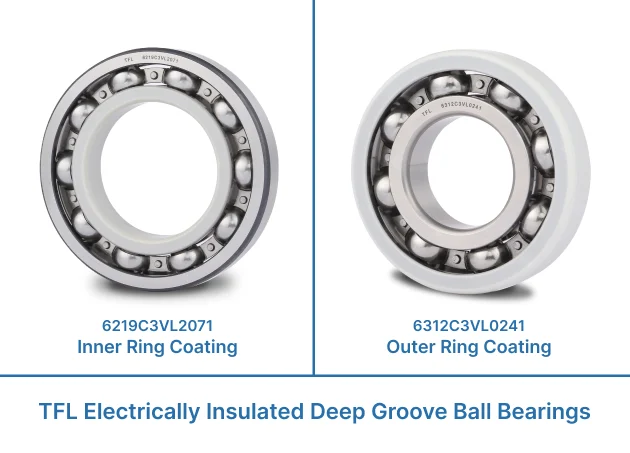

Outer Ring vs. Inner Ring Coating: Which Do You Need?
Depending on your machine’s setup and the electrical frequency, there are two main types of ceramic coatings:

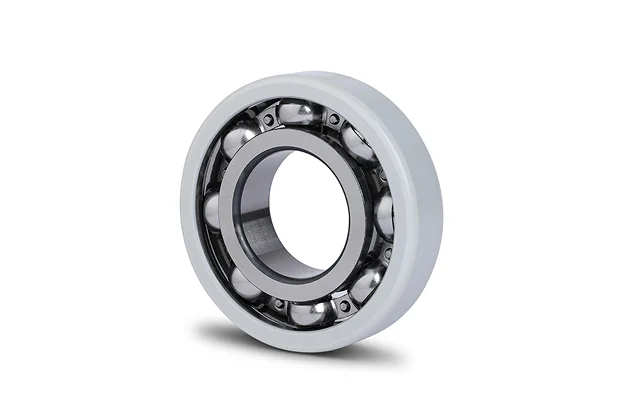

- Outer Ring Coating (Most Common): This is the best choice for standard bearing housings and most medium-to-large motors. If you need to stop standard stray currents, this is the most cost-effective option.
- Inner Ring Coating: This is required when dealing with extremely high-frequency currents. Because the inner ring has a smaller surface area, coating it does a better job of preventing fast, high-frequency electrical jumps.
Need a Drop-In Replacement for Expensive Brands?
Stop paying premium markups for SKF or FAG insulated bearings. Send us your motor specs or current part numbers, and our engineering team will match you with a high-performance, cost-effective alternative today.
Request a Quote TodayMajor Brands & Cross-Reference Guide
To make your maintenance and purchasing easier, we have mapped out the most famous insulated bearing series and their specific suffixes. TFL bearings use the exact same suffix system as SKF, guaranteeing a 100% match in dimensions, tolerances, and performance:
| Brand | Insulated Series Name | Outer Ring Suffix | Inner Ring Suffix | Market Details |
|---|---|---|---|---|
| SKF | INSOCOAT | VL0241 | VL2071 | Industry standard. Excellent quality but very expensive with long delivery times. |
| FAG | Current-Insulated | J20A / J20AA | J20B / J20C | Strong German engineering. Great reliability but comes with a high brand markup. |
| NSK | Ceramic Coated | HDY2 | Custom | Top Japanese brand. Performs well in high-speed VFD motors, but costs remain high. |
| NTN | MEGAOHM™ | 7MC3(Prefix) | Custom | Long-standing Japanese giant. Good coating stability, but carries a premium price tag. |
| NKE | Electrically Insulated | SQ77 | SQ77E | Austrian brand. Popular in European industrial motors, but stock can be limited regionally. |
| TFL | TFL Insulated | VL0241 | VL2071 | Exact Drop-In Replacement. Matches top-tier technical specs without the brand markup, offering the best value. |
* Note: Whether your motor blueprint calls for an FAG J20A, an NSK HDY2, or an NKE SQ77, you can safely use our TFL VL0241 series for a perfect fit and equal performance.
💡 Engineering Insight from Jessica Jia
“Insulated deep groove ball bearings are expensive to make because of the final steps. After the ceramic plasma spray is applied, factories must use highly expensive diamond grinding wheels to smooth the ceramic layer. This is the only way to get back to the precise P6 or P5 running tolerances needed for electric motors. It takes true manufacturing skill to grind the bearing perfectly without cracking the thin ceramic insulation.”
Why is TFL So Cost-Effective?
If plasma spraying and diamond grinding are so difficult, how does TFL keep prices low?
As an expert insulated bearing supplier and supply chain integrator, we do not pay for massive global advertising, huge trade shows, or layers of middlemen. Premium manufacturing hubs have completely mastered world-class ceramic coating technology. We use our deep industry connections to buy directly from these top-level factories. Every dollar you spend goes into high-quality steel and advanced coating technology, not a brand logo. We save you the trouble of finding reliable factories and deliver world-class quality at a fair price.
Our Simple and Strict Sourcing Process
You only need to tell us your engineering requirements, and our team handles all the hard work:
- Exact Matching: Give us a major brand part number (like 6316/C3VL0241) or a drawing, and we will match it with the best production line.
- Direct Production & Shipping: The factory produces the bearings to our strict standards and ships them to the TFL inspection hub.
- Secondary Quality Control: We run our own tests in-house. We double-check the electrical resistance (making sure it is > 100 MΩ) and verify the internal clearance.
- Final Delivery & Custom Packaging: Once approved, we ship the order to you. We also offer custom packaging, from anti-rust vacuum bags to custom-printed industrial boxes with your brand logo.
TFL Bearing: Your Centralized Procurement Partner
Managing a complex supply chain requires a partner who understands both mechanical demands and procurement realities. TFL Bearing leverages an extensive global supply network and substantial ready-to-ship inventory to provide premium bearing solutions tailored to your specific budget and operational requirements. Whether you need cost-effective chrome steel bearings for standard agricultural equipment or a specialized stainless steel deep groove ball bearing for food processing washdowns, our supply capabilities cover the entire spectrum. Every bearing we supply undergoes strict quality control protocols backed by our ISO 9001 and IATF 16949 certified quality management systems. This ensures that regardless of your budget tier, you receive reliable performance and dimensional accuracy.
