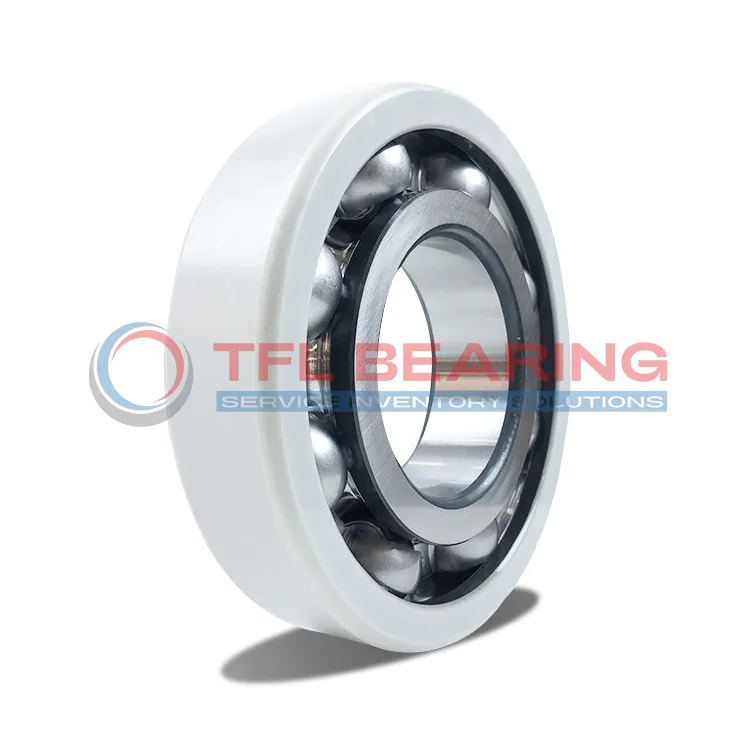

FAG Current-Insulated Bearings 6317-J20AA-C4

FAG Current-Insulated Bearings 6317-J20AA-C4

The FAG 6317-J20AA-C4 is a current-insulated bearing with dimensions of 85mm bore, 180mm outer diameter, and 41mm width, weighing 4.1kg. Its outer ring features a ceramic coating for electrical insulation, preventing damage from stray currents.

With a dynamic load rating of 141kN and static load rating of 97kN, it handles heavy loads while maintaining smooth rotation up to 5000 RPM. The C4 radial clearance allows for thermal expansion in high-speed applications.

The ceramic coating provides excellent insulation, with a breakdown voltage up to 3000V and high electrical resistance. This makes it ideal for electric motors or generators where electrical currents could cause damage.

Compliant with RoHS and REACH standards, this durable bearing uses a sheet metal cage for reliable performance. Its design suits industrial machinery requiring both mechanical strength and electrical insulation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6317-J20AA-C4
  • Product Category Current-Insulated Bearings
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 85.0 mm
  • Outside Diameter 180.0 mm
  • Width 41.0 mm
  • Net Weight 4.1 kg
  • Basic Dynamic Load Rating 141.0 kN
  • Basic Static Load Rating 97.0 kN
  • Reference Speed 5000 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 200 µm
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material Sheet metal
  • Radial Internal Clearance C4
  • ROHS Compliant
  • REACH Compliant
FAG Current-Insulated Bearings 6317-J20AA-C4 dimension drawing
Download DWG Download PDF

Features

How Is 6317-J20AA-C4 Bearing Engineered for Reliability?

6317-J20AA-C4 Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
Its breakdown voltage of up to 3000 V ensures safe operation in electrically charged environments.

The sheet metal cage maintains ball alignment, enhancing durability and reducing friction.
With a basic dynamic load rating of 141.0 kN, it handles heavy loads efficiently.

6317-J20AA-C4 Bearing operates smoothly at speeds up to 5000 r/min, balancing performance and longevity.
Its C4 radial internal clearance allows for thermal expansion in high-speed applications.

The coating’s electrical resistance remains effective even in damp conditions, ensuring consistent insulation.
This makes 6317-J20AA-C4 Bearing suitable for demanding industrial environments.

Application

Industrial Uses of 6317-J20AA-C4 Bearing
This bearing is commonly used in electric motors and generators, where its current-insulating properties prevent damage from stray currents. The ceramic coating on the outer ring ensures reliable performance in high-voltage environments.

Where Is 6317-J20AA-C4 Bearing Used?
You’ll find it in wind turbines and industrial drives, where electrical insulation is crucial for long-term operation. Its C4 clearance allows for thermal expansion, making it suitable for variable-speed applications.

Built for Heavy-Duty Use: 6317-J20AA-C4 Bearing
Ideal for conveyor systems and pumps, this bearing handles heavy loads with ease. The sheet metal cage provides durability while maintaining smooth rotation under stress.

Automotive vs Aerospace: Applications of 6317-J20AA-C4 Bearing
In automotive alternators, it prevents electrical arcing, while in aerospace systems, its lightweight design and insulation are key. The 180mm outer diameter offers stability in compact spaces.

Perfect Fit for Automation: 6317-J20AA-C4 Bearing
Robotic arms and CNC machines benefit from its precise movement and insulation. The 41mm width ensures a snug fit in tight assemblies, reducing vibration.
