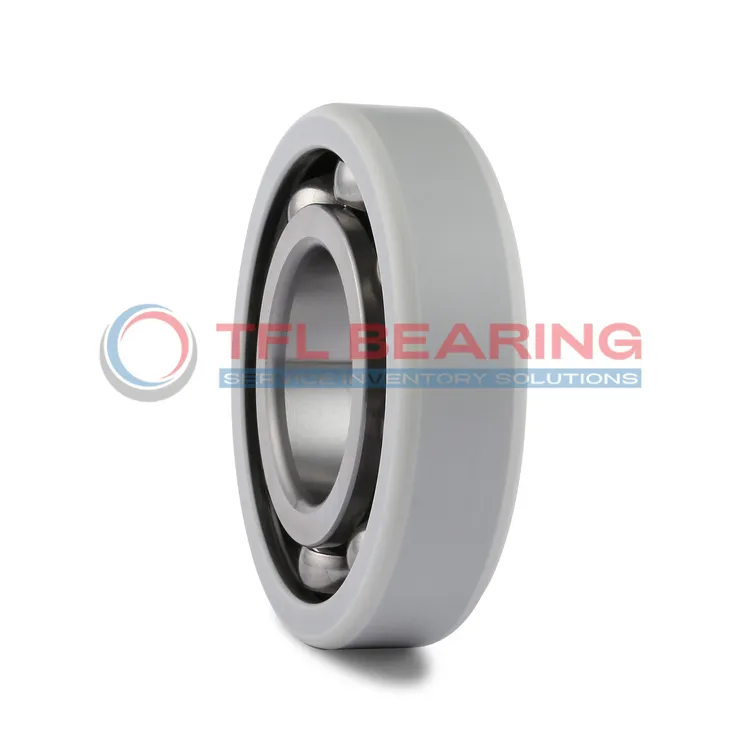

SKF INSOCOAT Bearings 6224/C4VL0241

SKF INSOCOAT Bearings 6224/C4VL0241

The SKF INSOCOAT 6224/C4VL0241 is a robust bearing with a 120mm bore and 215mm outer diameter, designed for demanding applications. Its outer ring features a special insulation coating to prevent electrical damage, making it ideal for electric motors.

With a dynamic load rating of 146 kN and a static load rating of 118 kN, it handles heavy loads efficiently. The bearing can reach speeds up to 6300 RPM, ensuring smooth operation in high-performance settings.

The insulation coating provides a breakdown voltage of up to 3000 V and an electrical resistance of 200 MΩ, protecting against current leakage. The C4 radial clearance allows for thermal expansion, suitable for variable operating conditions.

Weighing 5.2kg, this bearing is commonly used in industrial motors and generators where electrical insulation is crucial. It complies with ROHS standards, ensuring environmental safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6224/C4VL0241
  • Product Category INSOCOAT Bearings
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix VL0241
  • Manufacturers SKF
  • Bore Diameter 120.0 mm
  • Outside Diameter 215.0 mm
  • Width 40.0 mm
  • Net Weight 5.2kg
  • Basic Dynamic Load Rating 146.0 kN
  • Basic Static Load Rating 118.0 kN
  • Reference Speed 6300.0 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 500 µm
  • Electrical Resistance 200 MΩ
  • Cage Material Sheet metal
  • Radial Internal Clearance C4
  • ROHS Compliant
  • REACH Compliant
SKF INSOCOAT Bearings 6224/C4VL0241 dimension drawing
Download DWG Download PDF

Features

How Is 6224/C4VL0241 Bearing Engineered for Reliability?

6224/C4VL0241 Bearing features an insulation coating on the outer ring, protecting against electrical currents.
This design ensures reliable operation in environments with electrical interference.

The basic dynamic load rating of 146.0 kN allows 6224/C4VL0241 Bearing to handle heavy loads efficiently.
Its reference speed of 6300 r/min ensures smooth performance in high-speed applications.

With a breakdown voltage of ≤3000 V, 6224/C4VL0241 Bearing is ideal for electric motor applications.
The sheet metal cage maintains ball alignment, reducing wear and extending service life.

Application

Industrial Uses of 6224/C4VL0241 Bearing
The 6224/C4VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing. This makes it ideal for industries dealing with high-voltage equipment.

In wind turbine applications, 6224/C4VL0241 Bearing handles variable loads while maintaining electrical insulation. Its C4 clearance ensures smooth operation even under thermal expansion.

For railway traction systems, 6224/C4VL0241 Bearing’s robust design supports heavy axial and radial loads. The sheet metal cage provides durability in high-vibration environments.

Where Is 6224/C4VL0241 Bearing Used?
You’ll often find 6224/C4VL0241 Bearing in industrial pumps, where its insulation properties protect against stray currents. The high dynamic load rating ensures long service life.

In mining equipment, 6224/C4VL0241 Bearing withstands harsh conditions while preventing electrical damage. The 500 µm coating thickness offers reliable insulation.

Built for Heavy-Duty Use: 6224/C4VL0241 Bearing
The 6224/C4VL0241 Bearing excels in steel mill applications, where both load capacity and electrical insulation are crucial. Its reference speed of 6300 r/min suits high-speed operations.

For food processing machinery, 6224/C4VL0241 Bearing’s compliant materials meet hygiene standards. The insulation coating also resists moisture in washdown environments.

Automotive vs Aerospace: Applications of 6224/C4VL0241 Bearing
In automotive alternators, 6224/C4VL0241 Bearing prevents electrical damage from variable frequencies. The 118 kN static load rating ensures reliability.

For aerospace ground power units, 6224/C4VL0241 Bearing’s lightweight design and insulation are key. It handles rapid speed changes without compromising performance.
