Deep Groove Ball Bearing Supplier for Flexible Industrial Sourcing
TFL is a deep groove ball bearing trading supplier focused on helping industrial customers solve sourcing challenges across quality, pricing, and application requirements.
We support a wide range of solutions, from cost-effective standard bearings to higher performance configurations for electric motors, conveyors, pumps, agricultural machinery, and industrial gear systems. Whether customers need SKF equivalent models, customized packaging, special clearance configurations, or application-based selection support, our team helps match the right bearing solution to the actual working condition.
By integrating multiple factory resources, TFL can provide flexible supply options for different markets, helping customers balance cost, reliability, and long-term purchasing stability.
Discover TFL’s Deep Groove Ball Bearings
Deep Groove Ball Bearings Category
Precision with Deep Groove Ball Bearings
Deep groove ball bearings are designed for high-speed, low-noise operation, supporting radial and moderate axial loads.

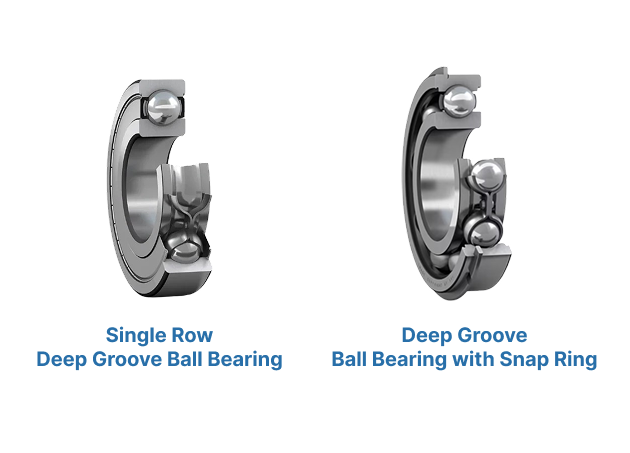

Available in ball bearing single row deep groove or specialized snap ring groove ball bearings, they excel in automation equipment. Use our deep groove ball bearing size chart to find the ideal fit for precision tasks.

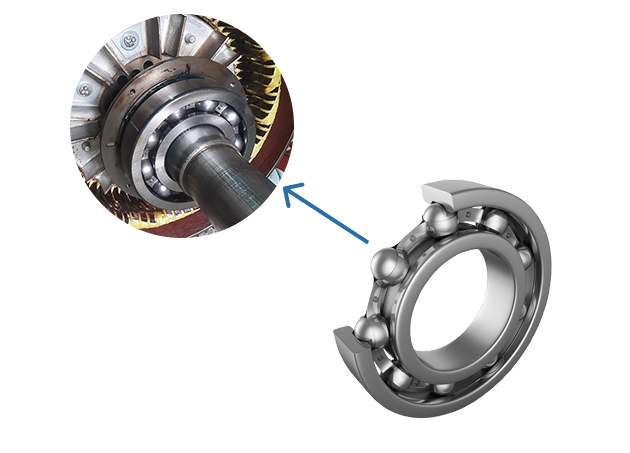

They are commonly used in electric motor drive ends and non-drive ends, conveyor roller assemblies, industrial fan shafts, agricultural machinery hubs, and gearbox input shafts where stable rotation and reduced vibration are important.
Snap ring groove ball bearings are also widely used in motor housings and compact transmission systems, where the retaining ring helps simplify axial positioning and installation.
Applications of Ball Bearing Deep Groove Designs
Ball bearing deep groove units are staples in conveyor systems and electric motors, where their versatility shines.
Whether a single row deep groove ball bearing or a stainless steel deep groove ball bearings model, these bearings ensure efficiency in industrial setups with minimal maintenance.
They are commonly used in continuous operation equipment such as conveyors and electric motors, where stable running and low maintenance requirements are essential. Their ability to perform reliably under moderate loads and high speeds makes them a practical choice for many industrial systems.
Stainless steel versions are especially suitable for humid or corrosive environments, helping extend service life while maintaining smooth operation.

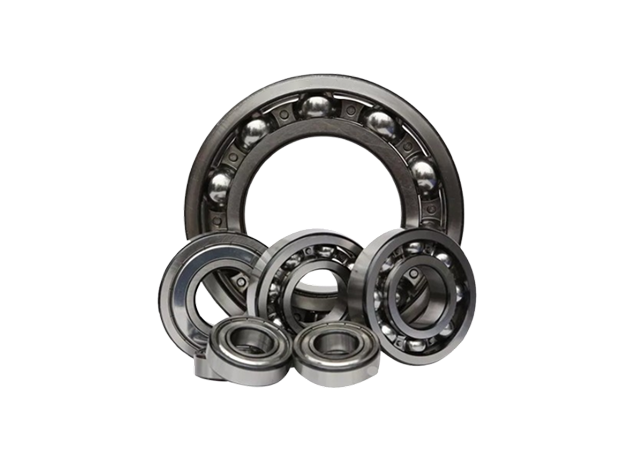

Versatility of Deep Groove Bearings
From deep groove single row ball bearings to double row deep groove ball bearings, our range adapts to varied loads and speeds.
Compatible with industrial large ball bearing needs or smaller metal ball bearing applications, deep groove ball bearings deliver consistent performance in machine tools and pumps.
Common models such as 6203 and 6204 are widely used in small electric motors, agricultural equipment, and conveyor rollers because of their compact size and stable high-speed performance. Larger models like 6310 and 6311 are often found in industrial motor drive ends, pumps, and gearbox applications where higher load capacity is required.
For humid or corrosive environments, stainless steel deep groove ball bearings such as W 6205 are commonly used in food processing equipment, beverage machinery, and packaging lines due to their improved corrosion resistance and easy maintenance characteristics.
APPLICATION AREA
Medical Bearings
Quiet, hygienic, and precise bearings designed for MRI scanners and surgical robots ensure reliability in critical medical environments.
Marine Bearings
Corrosion-resistant bearings maximize performance in marine propulsion and steering systems, ensuring durability in harsh saltwater conditions.
Agricultural Bearings
Heavy-duty agricultural bearings resist dust and mud, providing long-lasting reliability for tractors and harvesters in tough field operations.
Industrial Bearings
Versatile industrial bearings enhance energy efficiency and stability in electric motors, pumps, and gearboxes across manufacturing sectors.
INTERCHANGEABLE BRANDS
TFL Bearings: High quality bearings, an ideal choice to replace SKF and FAG.
One-Stop Supply Chain Integration
Simplify your vendor management. As an integrated supplier, we consolidate diverse bearing requirements into a single, efficient channel. We manage inventory, quality control, and global logistics to save you time.
View Cross-Reference Guide
100% Interchangeable Brand Equivalents
Why pay a premium for a brand name? We provide precision-engineered, cost-effective equivalents for major global brands. Get the exact same dimensions, load capacities, and lifespan without compromising performance.
Explore Our Catalog
Certified Quality & Compliance
Trust is built on verified quality. Our manufacturing processes are strictly ISO 9001 certified, ensuring consistent, defect-free production. All our products are fully RoHS and REACH compliant.
Contact for Compliance DetailsDeep Groove Ball Bearing Configurations
TFL is a professional deep groove ball bearing supplier providing SKF equivalent solutions, OEM services, engineering support, and global supply chain integration for industrial customers worldwide.
TFL is a bearing trading company focused on helping global customers source reliable and cost-effective deep groove ball bearings for industrial applications. Unlike a single factory supplier, we work with multiple qualified bearing manufacturers to provide flexible solutions based on different quality levels, budgets, and application requirements.
Our team supports customers with bearing selection, quality inspection, packaging customization, and long-term supply chain management.
Why Customers Choose TFL
- SKF equivalent bearing solutions
- Flexible sourcing from multiple factories
- Support for small MOQ orders
- OEM packaging and laser marking services
- Engineering support for bearing failure analysis
- Industrial application optimization support
- Competitive pricing for bulk purchasing
Jessica’s Insight
Many customers focus only on bearing dimensions and price, but in real industrial applications, factors like clearance, cage material, sealing type, and lubrication design often determine the actual bearing life.
What Is a Deep Groove Ball Bearing?
Deep groove ball bearings are the most commonly used rolling bearings in industrial equipment. Their deep raceway groove design allows them to carry both radial loads and certain axial loads while maintaining smooth operation at high speeds.
Because of their simple structure, low friction, and cost efficiency, deep groove ball bearings are widely used across nearly every industrial sector.
Main Features of Deep Groove Ball Bearings
- Simple and compact structure
- Low operating friction
- Suitable for high-speed applications
- Easy installation and maintenance
- Standardized dimensions worldwide
- Relatively low manufacturing cost
- Excellent cost-performance ratio
Common Applications
- Electric motors
- Pumps
- Fans and blowers
- Conveyor systems
- Agricultural machinery
- Packaging equipment
- Food processing machines
- Automotive components
- Home appliances
For many OEMs and maintenance companies, deep groove ball bearings are often the preferred option because they combine stable performance with affordable pricing.
Looking for Reliable SKF Equivalent Bearings?
TFL provides stable deep groove ball bearing supply solutions with engineering support, quality inspection, and OEM packaging services.
Deep Groove Ball Bearings Have Many Structural Variations
Although deep groove ball bearings look simple externally, there are many internal design combinations developed for different industrial requirements.
Changes in bearing materials, sealing structures, internal clearance, cage design, lubrication systems, and insulation performance can significantly affect:
- Bearing life
- Operating speed
- Corrosion resistance
- Contamination protection
- High-temperature performance
- Electrical insulation capability
- Maintenance intervals
| Deep Groove Ball Bearing Type | Main Features | Typical Applications |
|---|---|---|

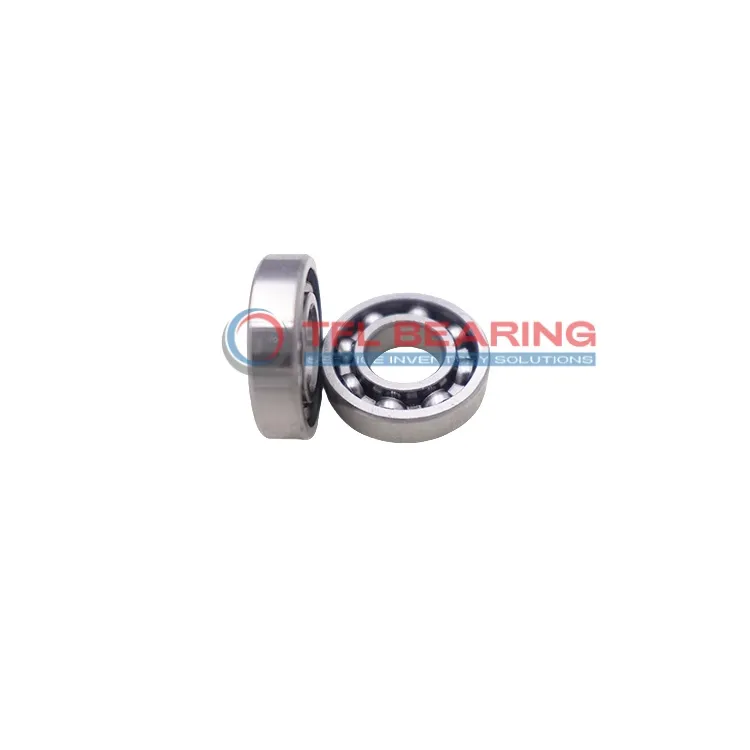

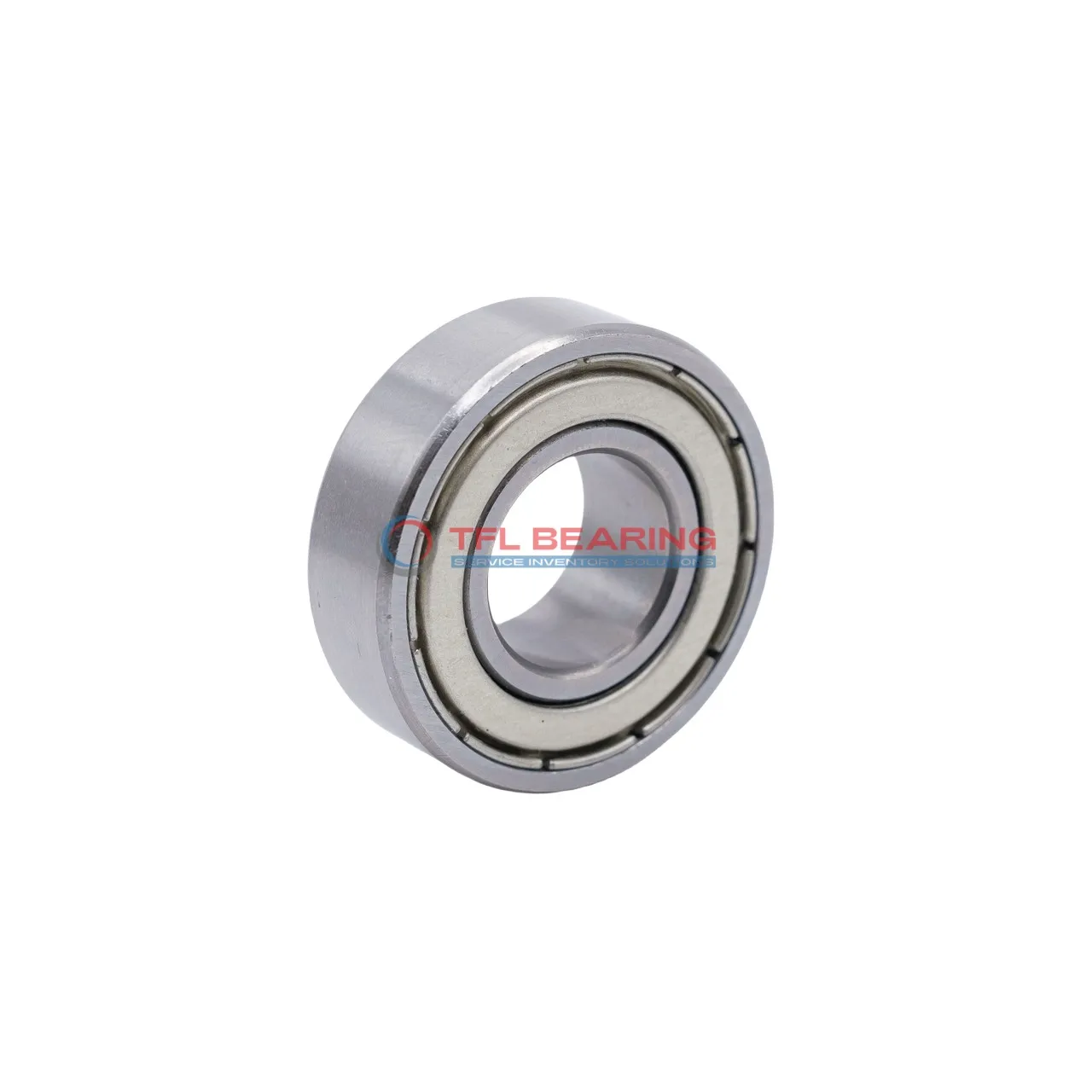

| Stainless Steel Deep Groove Ball Bearings | Excellent corrosion resistance | Food machinery, chemical equipment, humid environments |
| Snap Ring Groove Ball Bearings | Outer ring groove for retaining ring positioning | Electric motors, gearboxes, automotive parts |

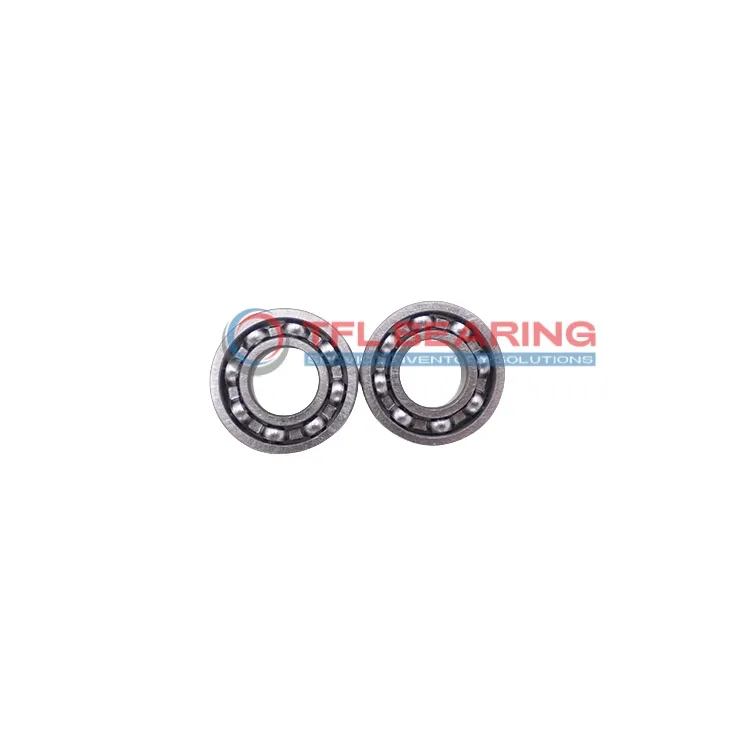

| Single Row Deep Groove Ball Bearings With Filling Slots | Higher ball count for increased load capacity | Low-speed heavy-load applications |

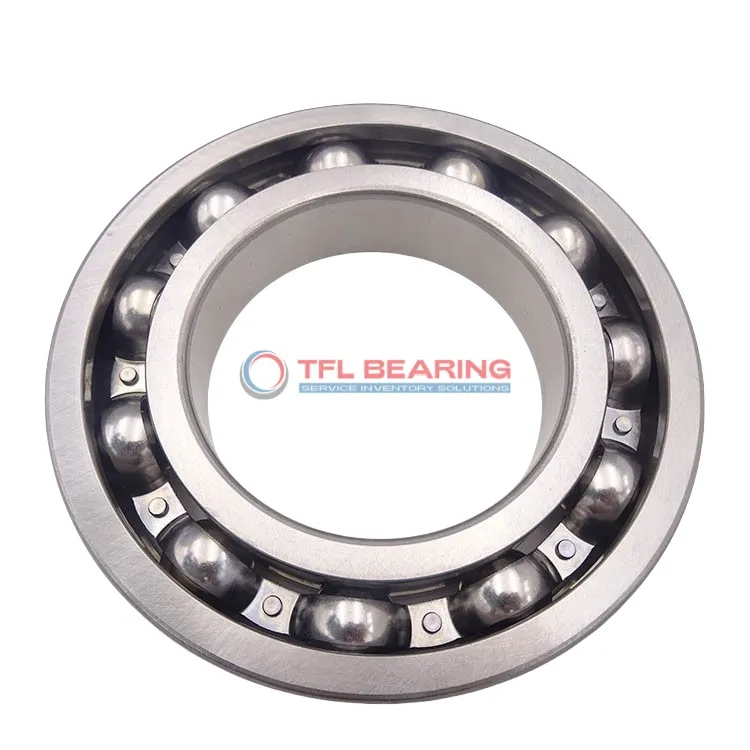

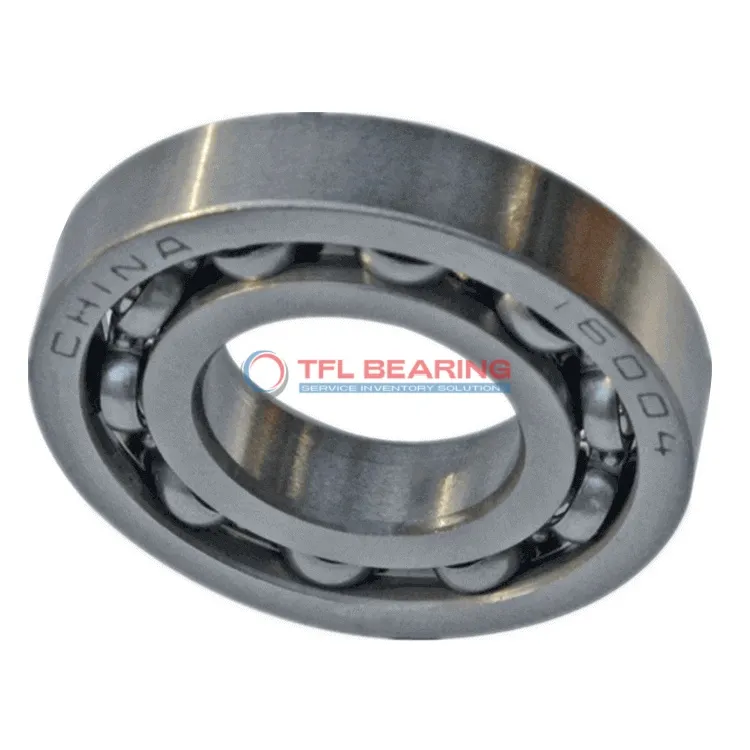

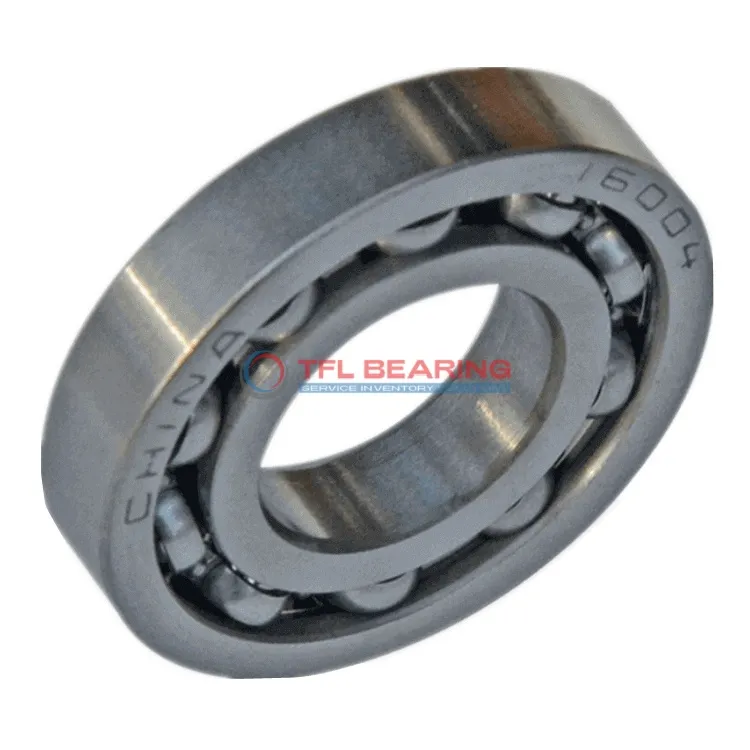

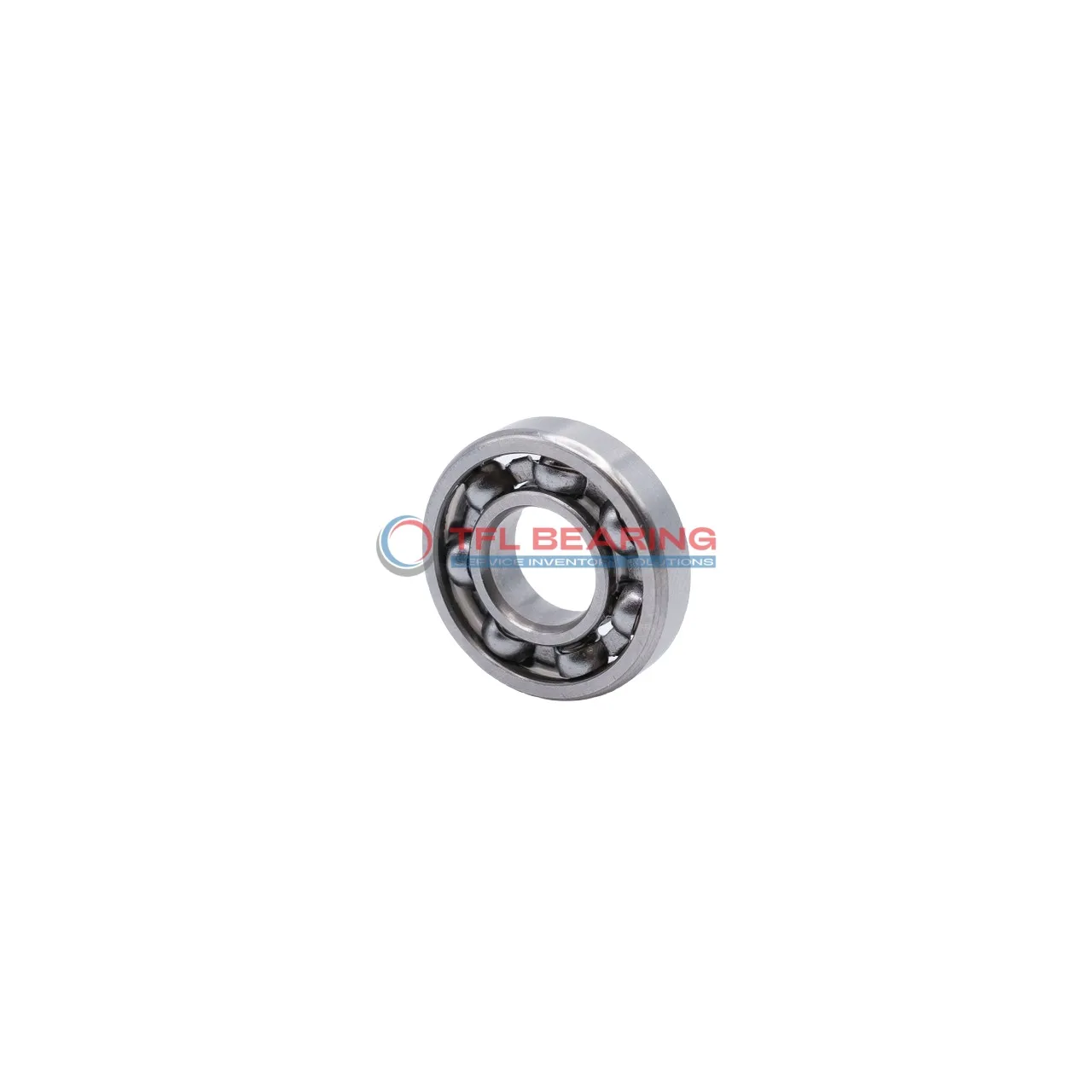

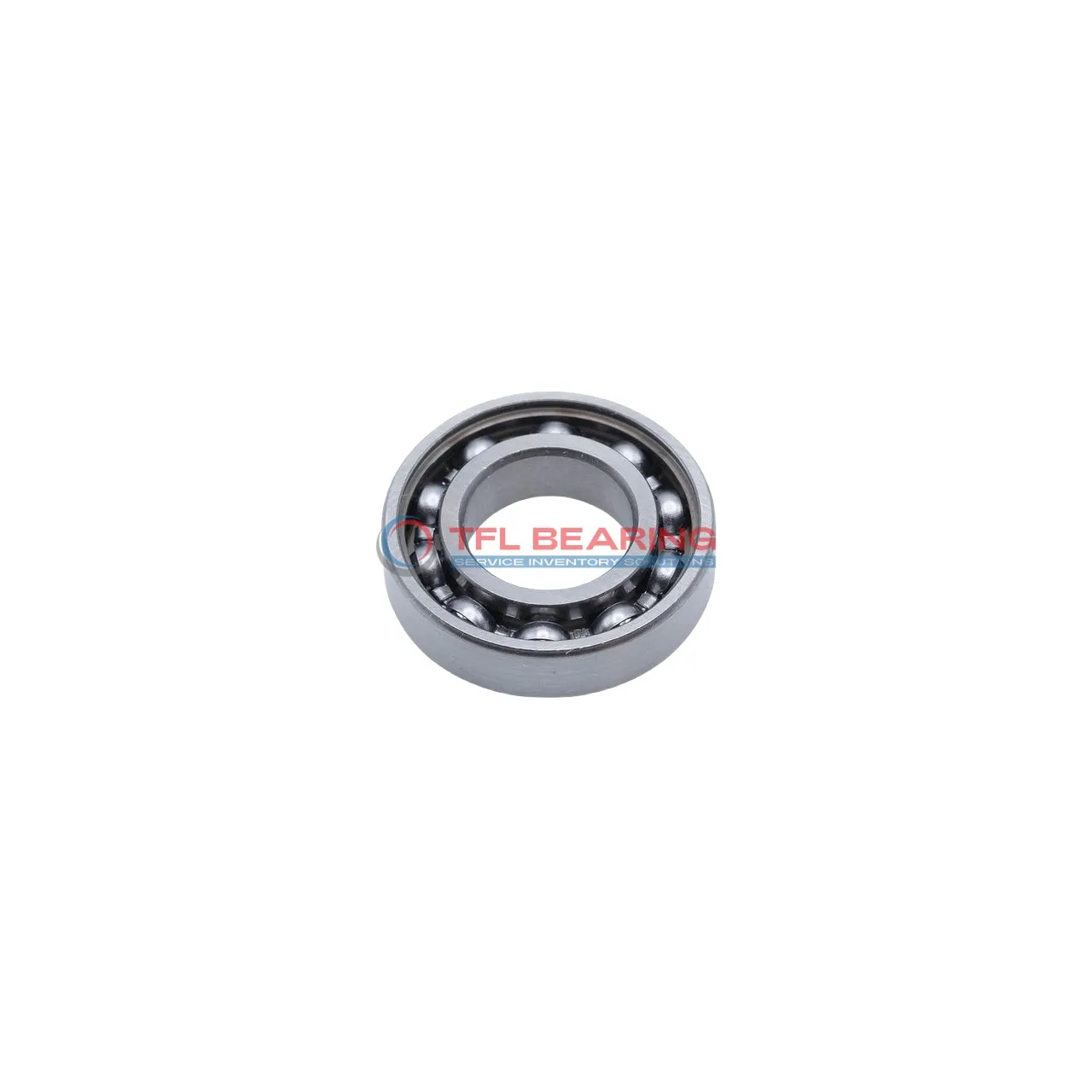

| Single Row Deep Groove Ball Bearings | Most common and economical structure | Pumps, fans, motors, conveyors |

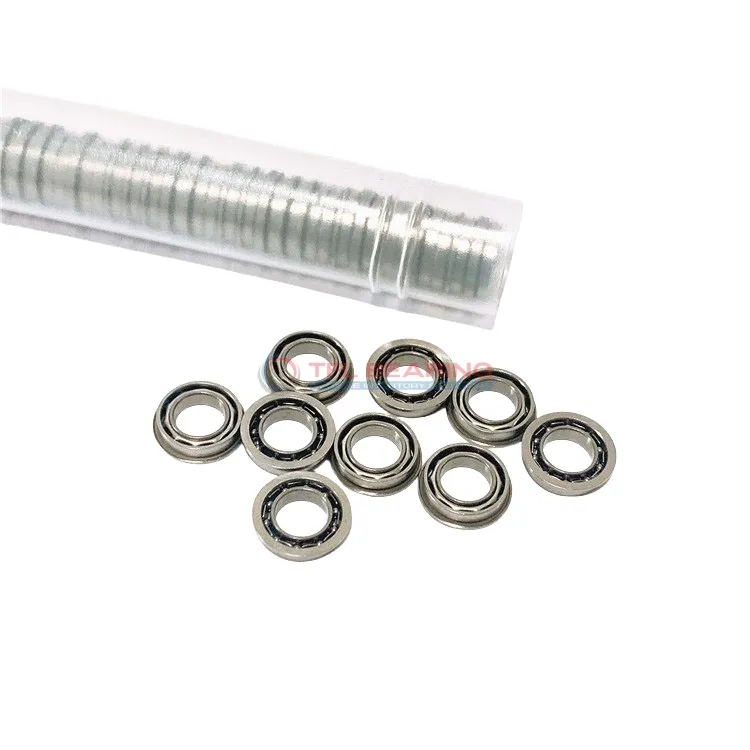

| Flanged Deep Groove Ball Bearings | Flanged outer ring for easier positioning | Small machinery, electric tools, appliances |
| Double Row Deep Groove Ball Bearings | Higher load capacity with dual-row design | Heavy industrial equipment and reducers |
Understanding SKF Bearing Variations Using 6311 as an Example
Many buyers only focus on the basic bearing number, such as 6311. However, the suffixes and prefixes after the basic model often represent major structural and performance differences.
TFL provides SKF equivalent solutions for the following configurations.
| Model | Main Upgrade | Features | Typical Applications |
|---|---|---|---|
| 6311 | Standard Bearing | Normal clearance with stamped steel cage | General industrial equipment |
| 6311/C3 | Increased Internal Clearance | C3 clearance for heat-generating applications | Electric motors and fans |
| 6311/C2, C4, C5 | Different Clearance Classes | Optimized for different thermal expansion conditions | Special speed and temperature conditions |
| 6311M/C3 | Machined Brass Cage | Higher reliability under heavy-duty conditions | Heavy-load industrial equipment |
| 6311TN9/C3 | Nylon Cage | Lower noise and reduced friction | High-speed electric motors |

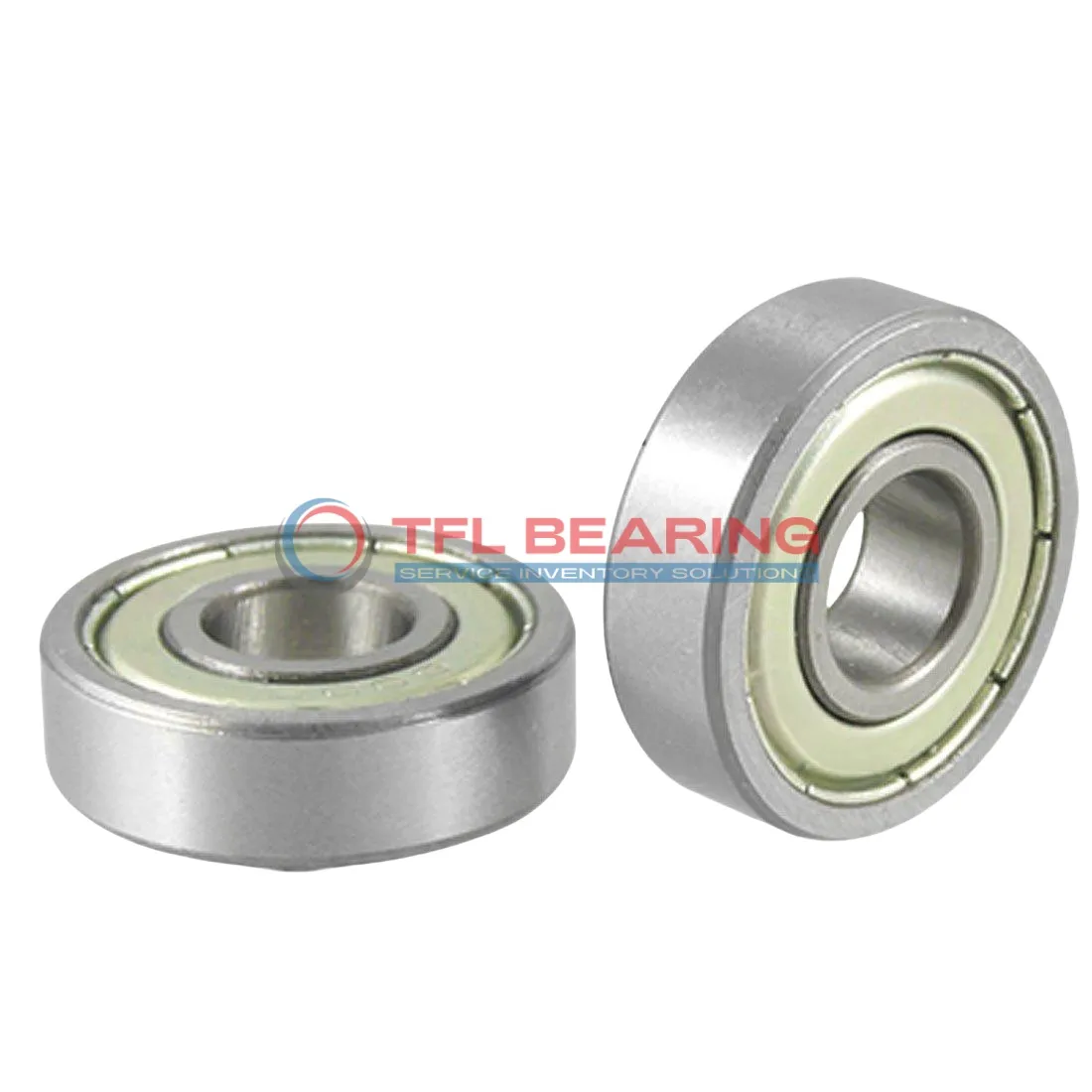

| 6311-2Z/C3 | Double Metal Shields | Pre-lubricated maintenance-free design | Fans and electric motors |
| 6311-Z/C3 | Single Metal Shield | Partial contamination protection | Semi-open lubrication systems |

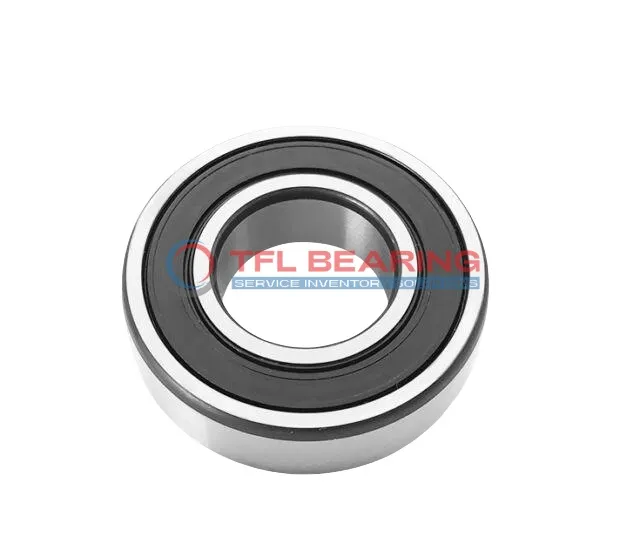

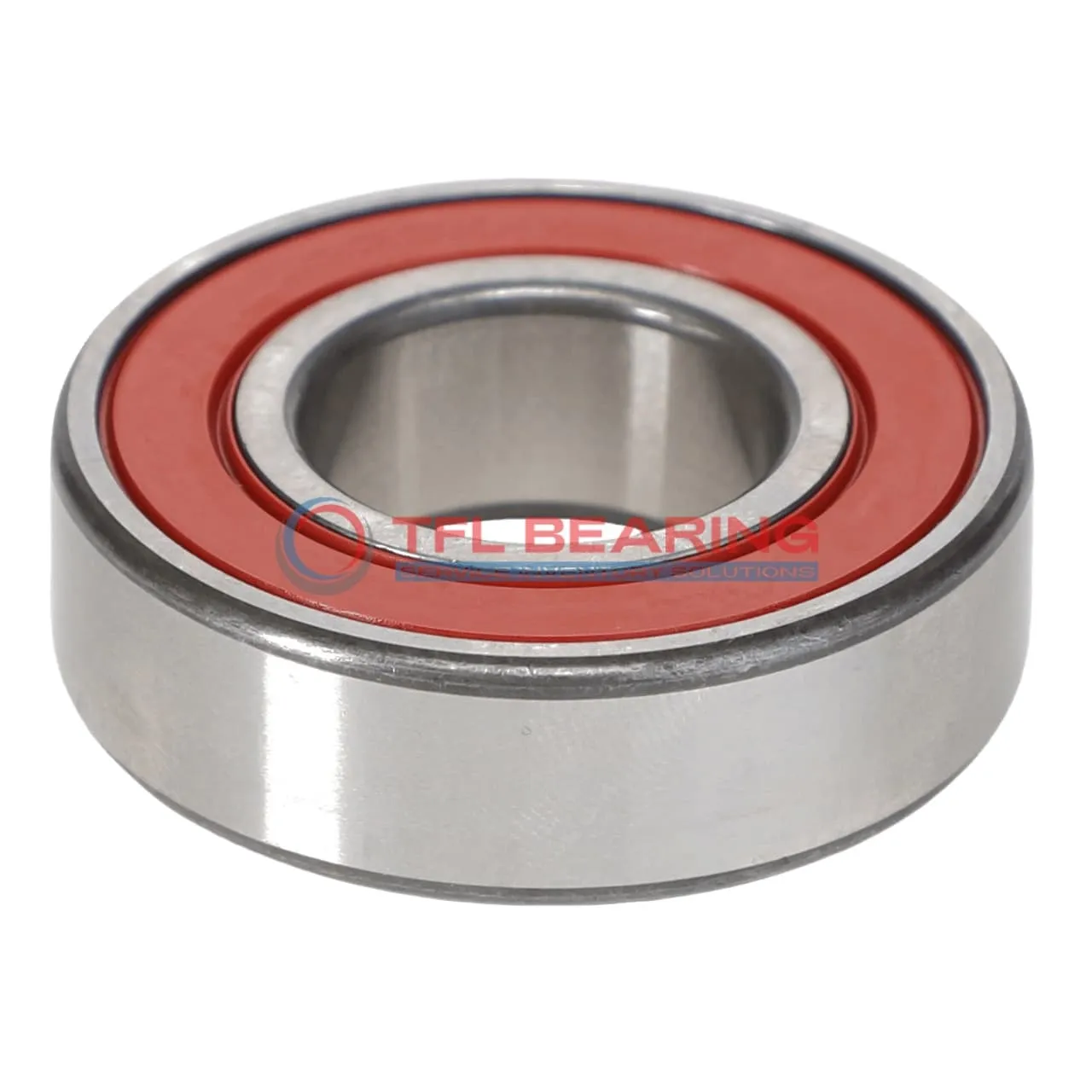

| 6311-2RS1/C3 | Double Rubber Seals | Improved sealing against leakage and contamination | Dusty or wet environments |
| 6311-RS1/C3 | Single Rubber Seal | Single-side sealing structure | Special lubrication systems |
| 6311-2RSH/C3 | Low-Friction Rubber Seal | Reduced sealing heat generation | Medium-to-high-speed applications |
| 6311-2FKM/C3 | FKM Seals | Higher temperature and chemical resistance | Chemical and high-temperature equipment |
| 6311/C3VL0241 | Outer Ring Insulation Coating | Ceramic-coated outer ring for electrical insulation | Industrial electric motors |
| 6311/C3VL2071 | Inner Ring Insulation Coating | Inner ring insulated structure | Special motor applications |
| 6311/HC5C3 | Hybrid Ceramic Bearing | Ceramic balls with excellent insulation capability | EV motors and high-speed motors |
| 6311TNH/HC5C5VC4444 | Extreme Environment Bearing | Super stainless steel rings, ceramic balls, and PEEK cage | Cryogenic pumps and acid gas compressors |
| 6311NR | Snap Ring Groove | Outer ring groove for easier positioning | Motors and reducers |
| 6311/VA201 | High-Temperature Bearing | High-temperature steel with manganese phosphate treatment | Furnaces, kiln cars, baking equipment |
| 6311/W64 | Solid Oil Bearing | Solid lubricant design with strong anti-washout capability | Food, agriculture, and conveyor systems |
Important Engineering Note
Sealed bearings provide better contamination protection, but they may also generate additional heat at high speeds. Selecting the wrong seal type is one of the most common causes of premature bearing failure.
Why Do Many Bearings Fail Prematurely?
In many real-world cases, bearing failure is not caused by manufacturing quality problems, but by incorrect bearing configuration selection.
Common mistakes include:
- Using normal clearance bearings in high-temperature motors
- Using open bearings in contaminated environments
- Using standard steel bearings in corrosive conditions
- Ignoring electrical current damage in inverter motors
- Using unsuitable grease for high-temperature operation
These problems can significantly shorten bearing life and increase downtime costs.
At TFL, our engineers help customers optimize bearing selection based on:
- Operating speed
- Temperature
- Load conditions
- Lubrication method
- Contamination level
- Electrical current risks
- Corrosive media exposure
TFL Purchasing and Quality Control Process
1. Customer Sends Requirements
Customers provide bearing models, drawings, application details, target pricing, or brand replacement requirements.
2. TFL Selects Suitable Factory Partners
We match the most suitable manufacturing partner based on quality level, precision requirements, production capacity, and pricing goals.
3. Factory Ships Products to TFL
Finished products are shipped to our warehouse for inspection and consolidation.
4. TFL Performs Quality Inspection
Before shipment, we perform:
- Appearance inspection
- Dimension checking
- Packaging inspection
- Laser marking verification
- Rotation smoothness inspection
- Random quality sampling
5. Global Shipping Arrangement
After inspection, products are repacked and shipped internationally according to customer requirements.
OEM Packaging and Custom Services
Besides standard industrial packaging, TFL also supports:
- Custom brand packaging
- OEM laser marking
- Barcode labels
- Anti-rust packaging
- Single-unit retail packaging
- Bulk industrial packaging
Need Deep Groove Ball Bearing Solutions?
TFL supports SKF equivalent bearings, industrial customization, OEM packaging, and global supply chain services for long-term B2B customers.
Disclaimer: SKF bearing numbers mentioned in this article are used only for technical reference and compatibility explanation purposes. TFL supplies compatible replacement bearing solutions and is not affiliated with SKF.
