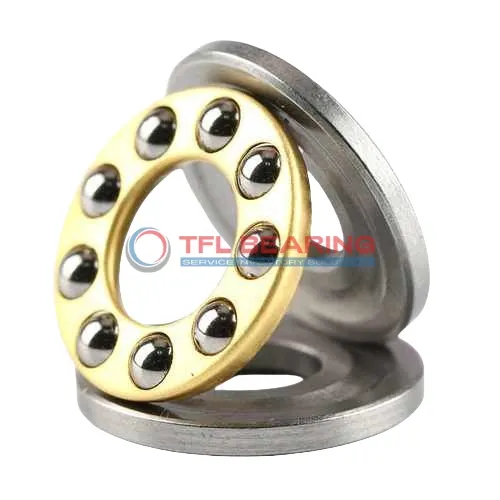

Miniature Thrust Ball Bearings F5-10M

Miniature Thrust Ball Bearings F5-10M

The F5-10M is a compact thrust ball bearing measuring 5mm by 10mm by 4mm, crafted from sturdy chrome steel. It supports thrust loads up to 214 lbf and operates smoothly at speeds up to 5100 RPM.

Its grooved raceway design ensures stable performance, while the brass cage adds durability. The open seal allows for easy lubrication, essential for maintaining its efficiency.

This bearing is ideal for small devices like precision instruments or miniature motors where space is limited. It performs reliably in temperatures ranging from -30°C to 110°C.

Weighing just 2.10g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F5-10M
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 10 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Outer Dia Shaft Washer 9.8 mm
  • Width 4 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 7
  • Ball Dia 1.588 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Washers Type grooved raceway
  • For Load Direction Thrust
  • Inner Ring Type Standard
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Thrust Load 214 lbf
  • Static Thrust Load 187 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5100 rpm
  • Weight 2.10 g
  • Price（$） 1.55
Miniature Thrust Ball Bearings F5-10M dimension drawing
Download DWG Download PDF

Features

Why Choose F5-10M Bearing for Precision Tasks?

F5-10M Bearing features a grooved raceway design, ensuring smooth operation under thrust loads.
Its compact size of 5 mm×10 mm×4 mm makes it ideal for precision applications where space is limited.

The chrome steel rings and balls provide durability, while the brass cage maintains ball alignment.
With a dynamic thrust load capacity of 214 lbf, it handles demanding tasks efficiently.

F5-10M Bearing operates smoothly at speeds up to 5,100 rpm, balancing performance and reliability.
Its open design allows for easy lubrication, ensuring consistent performance over time.

The temperature range of -30° to 110 °C ensures versatility in various operating conditions.
This bearing is RoHS and REACH compliant, meeting international environmental standards.

Application

Common Applications of F5-10M Bearing
F5-10M Bearing is widely used in small industrial equipment, such as miniature gearboxes and precision instruments, where its compact size and thrust load capacity are beneficial. The open design allows for easy lubrication, ensuring smooth operation in tight spaces.

In the automotive sector, F5-10M Bearing can be found in components like throttle systems and small actuators, providing reliable performance under axial loads. Its metric dimensions make it a versatile choice for various vehicle models.

For medical devices, F5-10M Bearing’s chrome steel construction offers durability in applications like dental tools and lab equipment. The brass cage adds stability, making it suitable for high-precision environments.

In consumer electronics, F5-10M Bearing is often used in devices like small fans and printers, where its low weight and efficiency are key advantages. The grooved raceway design helps maintain consistent performance over time.
