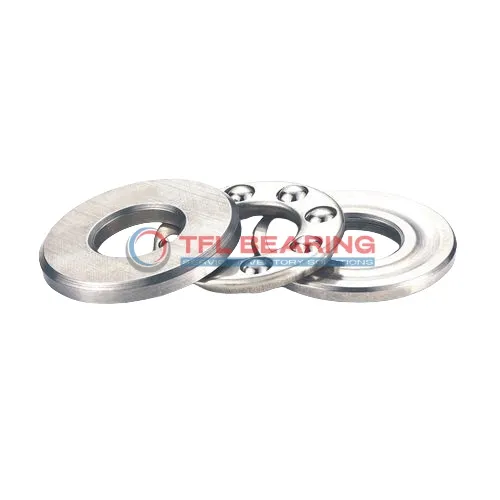

Miniature Thrust Ball Bearings F2-6

Miniature Thrust Ball Bearings F2-6

The F2-6 is a compact thrust ball bearing measuring just 2mm by 6mm by 3mm, crafted from sturdy chrome steel for durability. It supports thrust loads up to 26 lbf and can spin at speeds up to 16,000 RPM.

Its open design and brass cage ensure smooth operation, while the flat raceway washers provide stable performance. Regular lubrication is needed to maintain its efficiency.

This bearing operates well in temperatures ranging from -30°C to 110°C, making it versatile for various environments. Weighing only 0.6g, it’s ideal for small, precision applications like miniature motors or medical devices.

Compliant with RoHS and REACH standards, it’s a reliable choice for both industrial and delicate uses. Its small size doesn’t compromise its strength or functionality.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F2-6
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 2 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 6 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Outer Dia Shaft Washer 6 mm
  • Width 3 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 6
  • Ball Dia 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Washers Type flat raceway
  • For Load Direction Thrust
  • Inner Ring Type Standard
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Thrust Load 26 lbf
  • Static Thrust Load 19 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 16000 rpm
  • Weight 0.6 g
  • Price（$） 1.85
Miniature Thrust Ball Bearings F2-6 dimension drawing
Download DWG Download PDF

Features

Why Choose F2-6 Bearing for Precision Tasks?

F2-6 Bearing features a compact size of 2 mm×6 mm×3 mm, making it ideal for precision applications.
Its chrome steel rings and balls ensure durability while maintaining smooth operation.

The brass cage keeps the six 1 mm balls aligned, reducing friction and wear.
With a maximum speed of 16,000 rpm, it delivers reliable performance in high-speed scenarios.

F2-6 Bearing operates efficiently within a temperature range of -30° to 110 °C.
Its open design allows for easy lubrication, ensuring long-lasting performance.

Application

Common Applications of F2-6 Bearing
F2-6 Bearing is widely used in small electronics, such as miniature fans and precision instruments, where its compact size and reliable thrust load handling are essential. The open design allows for easy lubrication, ensuring smooth operation over time.

In robotics, F2-6 Bearing fits perfectly in compact joints and actuators, providing stability in precise movements. Its brass cage offers durability, making it suitable for high-speed applications.

For medical devices like dental tools or lab equipment, F2-6 Bearing’s chrome steel construction ensures hygiene and long-lasting performance. The metric dimensions make it easy to integrate into various designs.

Automotive applications include small actuators and sensors, where F2-6 Bearing’s lightweight design and thrust capacity are advantageous. Its compatibility with standard lubricants simplifies maintenance.

In 3D printers, F2-6 Bearing supports precise linear motion systems, contributing to accurate prints. The high-speed capability ensures consistent performance even during prolonged use.
