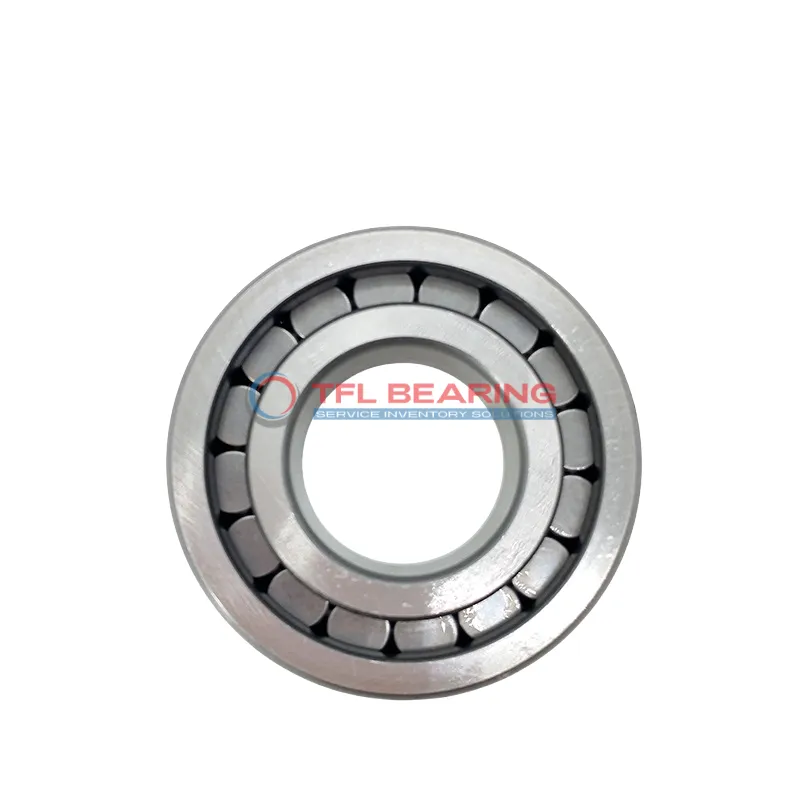

Single Row Full Complement Cylindrical Roller Bearings NCF 3007 CV

Single Row Full Complement Cylindrical Roller Bearings NCF 3007 CV

The NCF 3007 CV is a single row full complement cylindrical roller bearing, measuring 35mm by 62mm by 20mm. Made from chrome steel, it’s built to handle both radial and axial loads with ease.

With a dynamic radial load capacity of 10890 lbf, it can spin at speeds up to 7000 RPM. Its full complement design means no cage, offering more rollers for higher load capacity.

The open seal allows for simple lubrication with grease or oil, and it operates well in temperatures from -30°C to 110°C. The 1mm chamfer ensures smooth installation.

Ideal for heavy-duty applications like gearboxes or industrial machinery, this bearing is interchangeable with SKF models. Weighing 0.26kg, it’s a sturdy yet manageable choice. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 3007 CV
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 45 mm
  • Shoulder Dia Outer Ring 51 mm
  • Raceway Diameter Outer Ring 55.52 mm
  • Chamfer Dimension r1,2(min.) 1 mm
  • Chamfer Dimension r3,4(min.) 0.3 mm
  • Permissible Axial Displacement(max.) 2 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 10890 lbf
  • Static Radial Load 12600 lbf
  • Max Speed 7000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.26 kg
Single Row Full Complement Cylindrical Roller Bearings NCF 3007 CV dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 3007 CV Bearing

NCF 3007 CV Bearing is built with a full complement of chrome steel rollers, offering high load capacity and durability.
Its dynamic radial load capacity reaches 10890 lbf, making it suitable for heavy-duty applications.

The open design allows for easy lubrication with grease or oil, ensuring smooth operation.
With a maximum speed of 7000 rpm, it balances performance and reliability in various conditions.

NCF 3007 CV Bearing operates efficiently within a temperature range of -30° to 110°C.
The precise tolerances and chrome steel construction enhance its longevity and resistance to wear.

The absence of a cage allows for more rollers, increasing load capacity and stability.
This design makes NCF 3007 CV Bearing ideal for applications requiring combined radial and axial loads.

Application

Industrial Uses of NCF 3007 CV Bearing
NCF 3007 CV Bearing is commonly used in heavy machinery like conveyor systems and industrial gearboxes, where its full complement design handles high radial loads with ease. The open seal type allows for straightforward lubrication, extending its service life in demanding conditions.

Where Is NCF 3007 CV Bearing Used?
In automotive applications, NCF 3007 CV Bearing fits well in transmissions and wheel hubs, providing reliable performance under combined loads. Its chrome steel construction ensures durability even in high-speed scenarios.

Built for Heavy-Duty Use: NCF 3007 CV Bearing
This bearing excels in construction equipment, such as cranes and excavators, where its robust design withstands intense vibrations and shocks. The absence of a cage allows for higher load capacity, making it ideal for rugged environments.

Automotive vs Aerospace: Applications of NCF 3007 CV Bearing
While NCF 3007 CV Bearing is popular in automotive drivetrains, its precision also suits aerospace components like landing gear systems. The metric dimensions ensure compatibility with a wide range of international standards.

Perfect Fit for Automation: NCF 3007 CV Bearing
In robotic arms and automated assembly lines, NCF 3007 CV Bearing offers smooth rotation and minimal friction. Its high-speed capability and grease lubrication make it a dependable choice for continuous operation.
