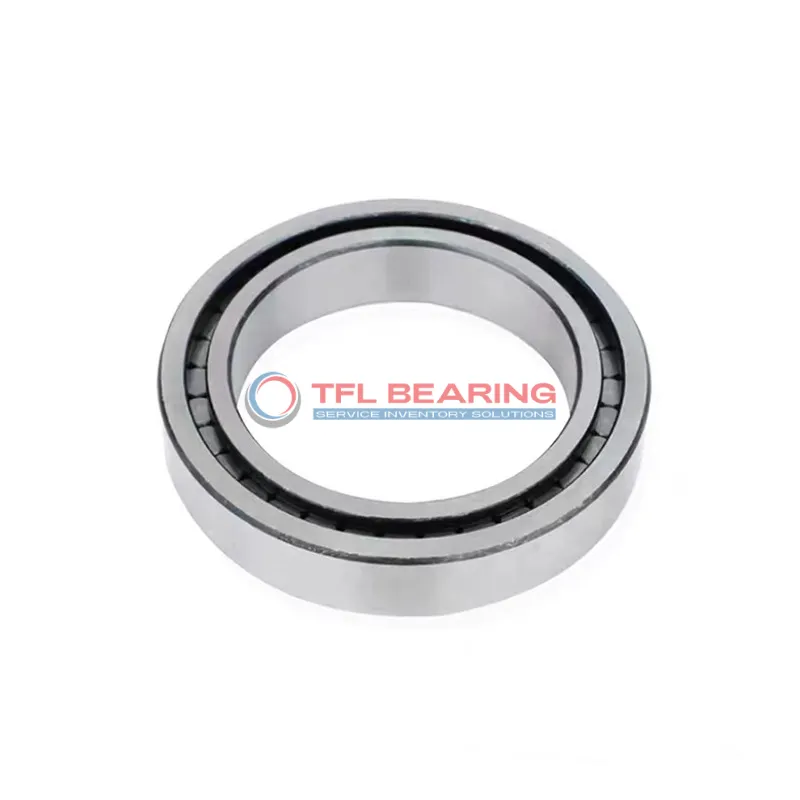

Single Row Full Complement Cylindrical Roller Bearings NCF 2922 CV

Single Row Full Complement Cylindrical Roller Bearings NCF 2922 CV

The NCF 2922 CV is a single-row cylindrical roller bearing with a 110mm bore and 150mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 30150 lbf and runs smoothly at speeds up to 2000 RPM.

Its full-complement design (no cage) maximises roller count for higher load capacity, while the open seal allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Suitable for heavy-duty applications like industrial gearboxes or machinery where radial and axial loads are present.

Weighing 1.17kg, it balances strength with manageable size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 2922 CV
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 24 mm
  • Width Tolerance -0.20mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 124 mm
  • Shoulder Dia Outer Ring 136 mm
  • Raceway Diameter Outer Ring 141.1 mm
  • Chamfer Dimension r1,2(min.) 1.1 mm
  • Chamfer Dimension r3,4(min.) 1 mm
  • Permissible Axial Displacement(max.) 1.3 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 30150 lbf
  • Static Radial Load 49500 lbf
  • Max Speed 2000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.17 kg
Single Row Full Complement Cylindrical Roller Bearings NCF 2922 CV dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 2922 CV Bearing

NCF 2922 CV Bearing is built with a full complement of chrome steel rollers, offering high load capacity without a cage.
This design enhances its dynamic radial load capacity up to 30,150 lbf, ideal for heavy-duty applications.

The single-row cylindrical construction ensures smooth operation under combined loads.
With a maximum speed of 2,000 rpm, it balances performance and durability.

NCF 2922 CV Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise tolerances and chrome steel materials ensure long service life.
NCF 2922 CV Bearing is a reliable choice for demanding industrial environments.

Application

Industrial Uses of NCF 2922 CV Bearing
NCF 2922 CV Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its full complement design handles high radial loads efficiently. The open seal type simplifies lubrication, making it suitable for harsh environments.

In automotive applications, NCF 2922 CV Bearing supports components such as differential systems and wheel hubs, thanks to its robust construction. The chrome steel rollers ensure durability even under continuous stress.

For automation equipment, NCF 2922 CV Bearing provides reliable performance in robotic arms and assembly lines. Its precise tolerances and combined load capacity make it a versatile choice for high-speed operations.

Medical imaging devices benefit from NCF 2922 CV Bearing’s smooth operation and low maintenance needs. The absence of a cage reduces friction, enhancing longevity in critical applications.

In household appliances like washing machines, NCF 2922 CV Bearing offers quiet and efficient performance. Its grease lubrication ensures minimal wear over time, even with frequent use.
