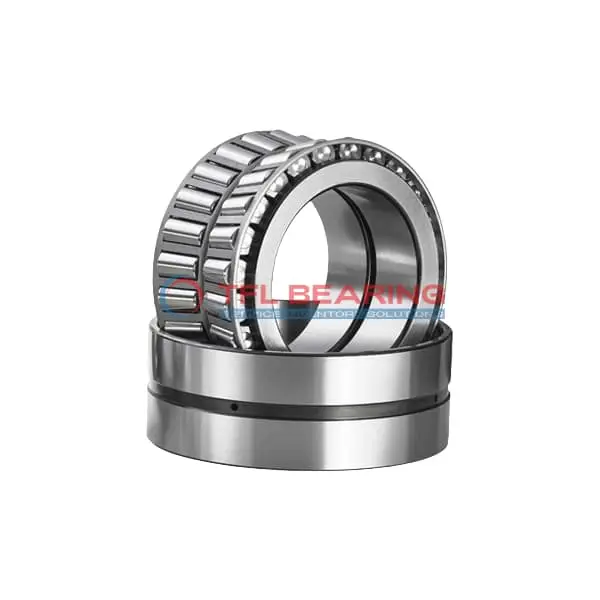

07096-07196D TDO (Two-Row Double-Outer Race) (Imperial)

07096-07196D TDO (Two-Row Double-Outer Race) (Imperial)

The 07096-07196D is a double-row tapered roller bearing with a 0.9905″ bore and 1.9687″ outer diameter, built from sturdy chrome steel. It handles combined loads well, with a dynamic radial load capacity of 11400 lbf and smooth operation up to 110°C.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing is designed for standard radial clearance but can also be ordered in C3, C4, or C5 variations if needed.

This model is part of the 7000 series, offering reliable performance in demanding conditions. Ideal for industrial machinery or automotive applications where combined loads are common.

Weighing just 0.59 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 07096-07196D
  • Brand TFL
  • Size 0.9905" x 1.9687" x 0.5614"
  • Bore Dia 0.9905"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 1.9687"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 1"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 0.5614"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 1.3126"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.03"
  • Cone Backface Backing Diameter 1.24"
  • Cup Frontface Backing Diameter 1.85"
  • Cage Cone Backface Clearance 0"
  • Dynamic Radial Load 11400 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 7096
  • Cup Part Number 07196D
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 7000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 1700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 1170 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 2950 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.59 lb

Features

How Is 07096-07196D Bearing Engineered for Reliability?

07096-07196D Bearing features a double-row tapered roller design, ideal for handling combined radial and thrust loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 11,400 lbf.

The precision-engineered cage keeps rollers aligned, reducing friction and wear.
This design enhances performance in demanding applications while maintaining smooth operation.

07096-07196D Bearing operates efficiently within a temperature range of -30° to 110°C.
Its standard radial clearance options provide flexibility for various industrial needs.

With ABEC-1 precision, it balances quality and cost-effectiveness.
The open seal design allows for easy lubrication, ensuring long service life.

Application

Industrial Uses of 07096-07196D Bearing
The 07096-07196D Bearing is commonly used in heavy machinery, such as construction equipment and agricultural vehicles, where its double-row design handles combined radial and thrust loads effectively. Its chrome steel construction ensures durability in demanding environments.

What Makes 07096-07196D Bearing a Preferred Choice?
In automotive applications, 07096-07196D Bearing is ideal for wheel hubs and differential systems, thanks to its tapered roller design and high dynamic load capacity. The inch sizing makes it suitable for North American vehicle models.

Built for Heavy-Duty Use: 07096-07196D Bearing
For industrial conveyor systems, 07096-07196D Bearing’s open seal type allows for easy lubrication, extending service life in high-load scenarios. The steel cage provides additional strength under continuous operation.

Automotive vs Aerospace: Applications of 07096-07196D Bearing
While 07096-07196D Bearing excels in automotive wheel assemblies, its precision also suits aerospace landing gear components. The ABEC-1 rating ensures reliable performance in both sectors.

Where Is 07096-07196D Bearing Used?
You’ll often find 07096-07196D Bearing in mining equipment, where its robust design withstands extreme conditions. The standard radial clearance option offers flexibility for various operational needs.
