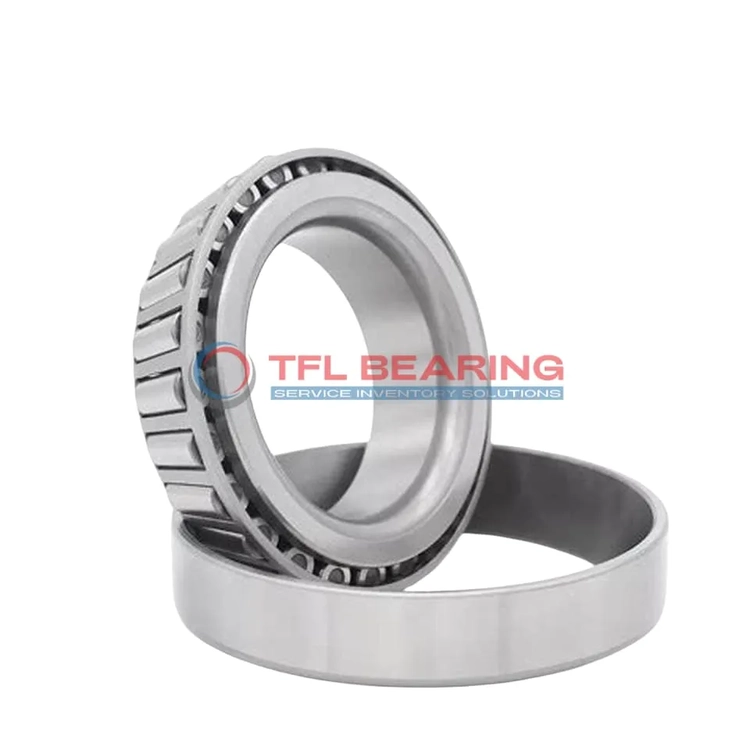

TS (Single Row Tapered Roller Bearings) (Imperial) 622X-614X

TS (Single Row Tapered Roller Bearings) (Imperial) 622X-614X

The 622X-614X is a single-row tapered roller bearing with a 2.1654″ bore and 4.5276″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 46600 lbf radially and 6510 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 4.2 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for diverse environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 622X-614X
  • Brand TFL
  • Interchangeable Timken
  • Size 2.1654" x 4.5276" x 1.615"
  • Bore Dia 2.1654"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.5276"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.625"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.24"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.615"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.12"
  • Cup Backface ToClear Radius 0.12"
  • Cone Frontface Backing Diameter 2.52"
  • Cone Backface Backing Diameter 2.76"
  • Cup Frontface Backing Diameter 4.29"
  • Cup Backface Backing Diameter 3.98"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.13"
  • Effective Center Location -0.55"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 622X
  • Cup Part Number 614X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 615
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 46600 lbf
  • Static Radial Load 54800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12100 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 6510 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.2 lb

Features

Performance Features of 622X-614X Bearing

622X-614X Bearing is constructed with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 46,600 lbf, ensuring reliable performance in demanding conditions.

The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

622X-614X Bearing requires regular lubrication, ensuring smooth operation over time.
Its standard radial clearance options provide flexibility for different applications.

Application

Industrial Uses of 622X-614X Bearing
The 622X-614X Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in tough environments.

Where Is 622X-614X Bearing Used?
You’ll often find 622X-614X Bearing in automotive applications, such as wheel hubs and differential systems, thanks to its ability to manage both radial and thrust loads. The imperial sizing makes it a fit for many North American vehicles.

Built for Heavy-Duty Use: 622X-614X Bearing
In industrial settings like conveyor systems, 622X-614X Bearing’s open design allows for easy lubrication, extending its service life. The steel cage adds extra strength, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of 622X-614X Bearing
While 622X-614X Bearing is popular in automotive wheel assemblies, it’s also suited for aerospace ground support equipment. Its ABEC-1 rating ensures consistent performance without over-engineering for less critical roles.

Practical Applications of 622X-614X Bearing
For farm machinery like tractors, 622X-614X Bearing’s robust design handles dirt and debris well. The standard radial clearance option makes it versatile for various load conditions.
