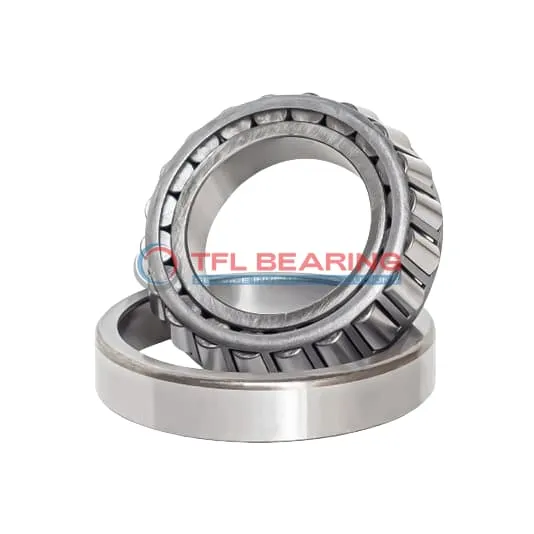

TS (Single Row Tapered Roller Bearings) (Imperial) 576-572A

TS (Single Row Tapered Roller Bearings) (Imperial) 576-572A

The 576-572A is a single-row tapered roller bearing with a 2.875″ bore and 5.5111″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 46500 lbf radially and 8330 lbf thrust, suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for use in industrial machinery or automotive systems where combined loads are common.

Weighing 5.3 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 576-572A
  • Brand TFL
  • Interchangeable Timken
  • Size 2.875" x 5.5111" x 1.3879"
  • Bore Dia 2.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.5111"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.4212"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.3879"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.02"
  • Cone Backface Backing Diameter 3.54"
  • Cup Frontface Backing Diameter 5.25"
  • Cup Backface Backing Diameter 4.88"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.12"
  • Effective Center Location -0.21"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 576
  • Cup Part Number 572A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 575
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 46500 lbf
  • Static Radial Load 65400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12100 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8330 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.3 lb

Features

Performance Features of 576-572A Bearing

576-572A Bearing is crafted with chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 46,500 lbf, making it suitable for heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Why Choose 576-572A Bearing for Precision Tasks?

576-572A Bearing features precise cone and cup width tolerances, ensuring accurate performance in demanding setups.
The tapered roller design distributes loads evenly, enhancing stability and reducing wear.
Its ABEC-1 rating guarantees consistent quality for precision applications.
The standard radial clearance options provide flexibility for different operational needs.

Built for Reliability: 576-572A Bearing

576-572A Bearing’s chrome steel construction resists wear, maintaining performance over extended periods.
The single-row design simplifies installation while handling both radial and thrust loads effectively.
With a static radial load capacity of 65,400 lbf, it offers dependable support in heavy machinery.
Its open seal type allows for easy lubrication, ensuring smooth operation.

Application

Industrial Uses of 576-572A Bearing
The 576-572A Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 576-572A Bearing fits well in truck wheel hubs and differential systems, providing reliable performance under high radial and thrust loads. The inch sizing makes it compatible with many North American vehicle models.

For industrial gearboxes, 576-572A Bearing’s open design allows for easy lubrication, extending its service life in continuous operation. The steel cage adds stability, making it suitable for high-speed scenarios.

Where Is 576-572A Bearing Used?
You’ll often find 576-572A Bearing in agricultural machinery, such as tractors and harvesters, where its robust design withstands rough conditions. The standard radial clearance ensures smooth operation even with varying loads.

In conveyor systems, 576-572A Bearing’s tapered rollers manage both radial and axial forces efficiently. Its ABEC-1 rating balances precision and cost, making it a practical choice for bulk material handling.

Built for Heavy-Duty Use: 576-572A Bearing
The 576-572A Bearing excels in forestry equipment like log skidders, where its high static radial load capacity prevents premature wear. The chrome steel rollers resist deformation under heavy loads.

For railway applications, 576-572A Bearing’s effective center location helps maintain alignment in bogies and axles. Its temperature range (-30° to 110°C) ensures reliability in diverse climates.

Automotive vs Aerospace: Applications of 576-572A Bearing
In automotive drivetrains, 576-572A Bearing handles the high torque of trucks and buses, while its inch sizing simplifies maintenance. The dynamic thrust rating (8330 lbf) suits frequent start-stop cycles.

For aerospace ground equipment, 576-572A Bearing’s steel cage and chrome steel rollers provide durability in aircraft tugs and loading systems. Its weight (5.3 lb) balances strength and portability.
