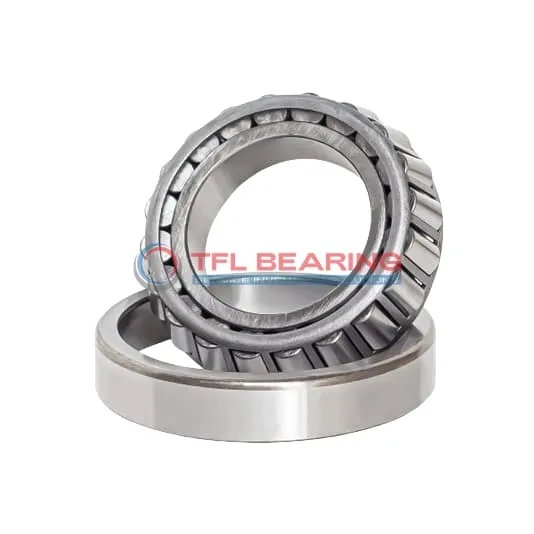

TS (Single Row Tapered Roller Bearings) (Imperial) 29685-29625WE

TS (Single Row Tapered Roller Bearings) (Imperial) 29685-29625WE

The 29685-29625WE is a single-row tapered roller bearing with a 2.875″ bore and 4.59″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 24800 lbf radially and 5370 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery, gearboxes, or industrial equipment where combined loads are common.

Weighing 2.4 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements. The standard radial clearance ensures easy installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 29685-29625WE
  • Brand TFL
  • Interchangeable Timken
  • Size 2.875" x 4.59" x 1.1475"
  • Bore Dia 2.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.59"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.929"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1475"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 3.82"
  • Cone Backface Backing Diameter 3.39"
  • Cup Frontface Backing Diameter 4.35"
  • Cup Backface Backing Diameter 4.13"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location 0.04"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 29685
  • Cup Part Number 29625WE
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 29600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 24800 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6440 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5370 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.4 lb

Features

Performance Features of 29685-29625WE Bearing

29685-29625WE Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 24,800 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

Why Choose 29685-29625WE Bearing for Precision Tasks?

29685-29625WE Bearing features precise cone and cup dimensions, ensuring accurate performance in combined load scenarios.
The standard radial clearance and ABEC-1 rating provide consistent operation for general applications.
Its effective center location of 0.04″ contributes to stable and smooth rotation.
The open design allows for easy lubrication, maintaining optimal performance over time.

Engineered for Durability: 29685-29625WE Bearing

29685-29625WE Bearing’s chrome steel construction resists wear, extending its service life under heavy loads.
The tapered roller design efficiently handles both radial and thrust forces, improving reliability.
With a static radial load capacity of 37,200 lbf, it withstands demanding industrial conditions.
Its standard lubrication requirement ensures long-term performance with minimal maintenance.

Application

Industrial Uses of 29685-29625WE Bearing
29685-29625WE Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

Where Is 29685-29625WE Bearing Used?
You’ll often find 29685-29625WE Bearing in agricultural machinery, particularly in gearboxes and wheel hubs. Its inch sizing makes it a good fit for older equipment still using imperial measurements.

Built for Heavy-Duty Use: 29685-29625WE Bearing
29685-29625WE Bearing works well in truck axles and trailer systems, thanks to its high dynamic radial load capacity. The open design allows for easy lubrication, extending service life in demanding applications.

Automotive vs Aerospace: Applications of 29685-29625WE Bearing
In automotive settings, 29685-29625WE Bearing supports drivetrain components, while its aerospace use is limited due to weight considerations. The steel cage provides reliable performance across various temperature ranges.

Key Fields for 29685-29625WE Bearing
29685-29625WE Bearing is ideal for industrial fans and pumps, where its standard radial clearance offers smooth operation. The ABEC-1 rating makes it suitable for general precision requirements.
