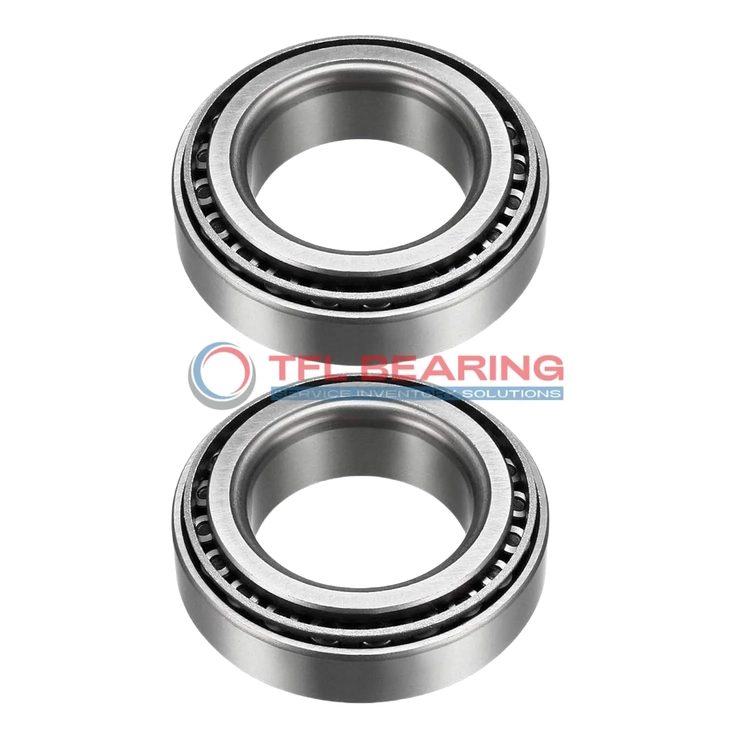

TS (Single Row Tapered Roller Bearings) (Imperial) 566-562

TS (Single Row Tapered Roller Bearings) (Imperial) 566-562

The 566-562 is a single-row tapered roller bearing with a 2.75″ bore and 5.12″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf thrust, making it a versatile choice.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive applications where combined loads are common.

Weighing 4.5 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 566-562
  • Brand TFL
  • Interchangeable Timken
  • Size 2.75" x 5.12" x 1.4376"
  • Bore Dia 2.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.12"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4376"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 3.74"
  • Cone Backface Backing Diameter 3.35"
  • Cup Frontface Backing Diameter 4.80"
  • Cup Backface Backing Diameter 4.57"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 566
  • Cup Part Number 562
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.5 lb

Features

How Does 566-562 Bearing Handle Combined Loads?

566-562 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 44,100 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

Why Choose 566-562 Bearing for Precision Tasks?

566-562 Bearing features precise tolerances, with bore diameter tolerance of +0.005″ to 0 for accurate fitting.
Its tapered roller design ensures smooth operation under combined loads, making it suitable for precision machinery.
The chrome steel construction provides durability and resistance to wear.
Effective lubrication further enhances its performance and longevity.

Engineered for Reliability: 566-562 Bearing

566-562 Bearing’s single-row tapered roller design ensures stable performance under high loads.
The chrome steel rollers and rings offer excellent strength and wear resistance.
With a static radial load capacity of 58,900 lbf, it handles demanding applications with ease.
Its standard radial clearance options provide flexibility for different operational needs.

What Ensures Smooth Operation in 566-562 Bearing?

566-562 Bearing’s steel cage keeps the rollers properly spaced, minimising friction and noise.
The tapered roller design distributes loads evenly, ensuring smooth and efficient operation.
Chrome steel materials resist wear, maintaining performance over time.
Proper lubrication further enhances its smooth running characteristics.

Application

Industrial Uses of 566-562 Bearing
The 566-562 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined radial and thrust loads effectively. Its chrome steel construction ensures durability in demanding environments.

Where Is 566-562 Bearing Used?
You’ll often find 566-562 Bearing in automotive applications like truck wheel hubs, where its robust design supports high loads and long service life. The inch sizing makes it a convenient choice for North American vehicle models.

Built for Heavy-Duty Use: 566-562 Bearing
In industrial settings like conveyor systems, 566-562 Bearing excels due to its ability to manage both radial and axial forces. The open design simplifies lubrication, keeping maintenance straightforward.

Automotive vs Aerospace: Applications of 566-562 Bearing
While 566-562 Bearing is popular in trucks and heavy vehicles, its precision also suits aerospace ground support equipment. The steel cage and chrome rollers provide reliable performance across different industries.

Perfect Fit for Automation: 566-562 Bearing
In automated production lines, 566-562 Bearing ensures smooth operation of rotating components. Its standard radial clearance and ABEC-1 rating make it a dependable choice for consistent performance.
