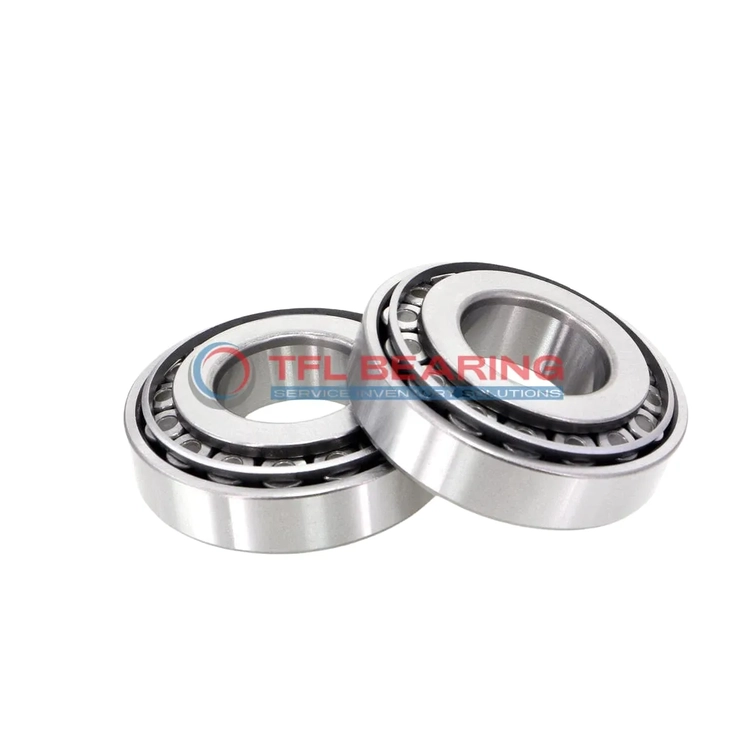

TS (Single Row Tapered Roller Bearings) (Imperial) 567AA-563

TS (Single Row Tapered Roller Bearings) (Imperial) 567AA-563

The 567AA-563 is a single-row tapered roller bearing with a 2.8115″ bore and 5″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 44100 lbf radially and 7130 lbf thrust, making it versatile for various applications.

Its open design requires regular lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 4.100 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 567AA-563
  • Brand TFL
  • Interchangeable Timken
  • Size 2.8115" x 5" x 1.4375"
  • Bore Dia 2.8115"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.94"
  • Cone Backface Backing Diameter 3.46"
  • Cup Frontface Backing Diameter 4.75"
  • Cup Backface Backing Diameter 4.41"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 567AA
  • Cup Part Number 563
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.100 lb

Features

Performance Features of 567AA-563 Bearing

567AA-563 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 44,100 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

567AA-563 Bearing’s standard radial clearance allows for smooth operation under different conditions.
Its ABEC-1 rating ensures consistent precision for industrial applications.

Application

Industrial Uses of 567AA-563 Bearing
567AA-563 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 567AA-563 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a convenient choice for North American vehicle models.

For industrial conveyor systems, 567AA-563 Bearing’s open design allows for easy lubrication, extending its service life in high-use scenarios. The steel cage adds extra strength, making it suitable for continuous operation.

Where Is 567AA-563 Bearing Used?
You’ll often find 567AA-563 Bearing in mining equipment, where its ability to handle radial and thrust loads is crucial. The standard radial clearance ensures smooth operation even under heavy stress.

In power transmission systems, 567AA-563 Bearing supports shafts and gears, thanks to its robust chrome steel rollers. The ABEC-1 rating provides a good balance of precision and affordability for general machinery.

Built for Heavy-Duty Use: 567AA-563 Bearing
567AA-563 Bearing excels in applications like forklifts and cranes, where its high dynamic load capacity is essential. The tapered rollers distribute loads evenly, reducing wear over time.

For railway applications, 567AA-563 Bearing’s temperature range and durability make it a reliable choice for axle boxes. The steel cage ensures stability even under constant vibration.

Automotive vs Aerospace: Applications of 567AA-563 Bearing
In automotive systems, 567AA-563 Bearing is ideal for drivetrains, offering a balance of strength and precision. Its imperial measurements align with many US-made components.

For aerospace ground equipment, 567AA-563 Bearing provides dependable performance in maintenance tools and loading systems. The chrome steel material resists corrosion, even in outdoor conditions.
