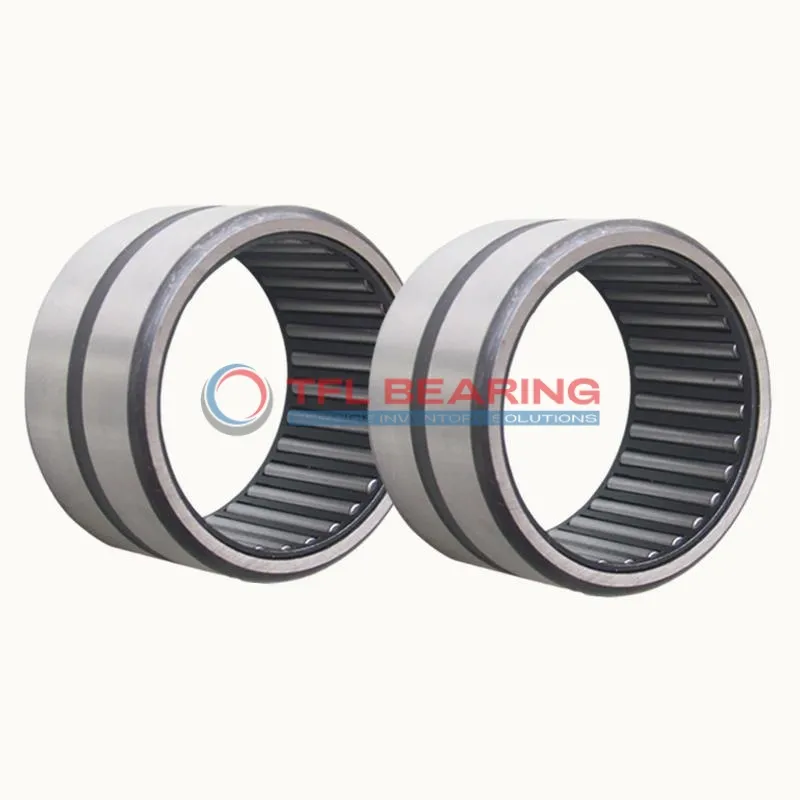

Heavy Duty Needle Roller Bearings (Machined) NCS3216

Heavy Duty Needle Roller Bearings (Machined) NCS3216

The NCS3216 is a heavy-duty needle roller bearing with a 2-inch bore and 2.562-inch outer diameter, designed for radial loads. Made from sturdy steel, it handles dynamic loads up to 11475 lbf and static loads up to 18900 lbf.
Its open design requires regular lubrication, but the press-fit shaft mount ensures a secure installation. The bearing operates smoothly at speeds up to 8800 RPM and works in temperatures from -20°C to 110°C.
Without an inner ring, this bearing is lightweight at 177g, making it easy to handle. It’s interchangeable with INA bearings, offering flexibility for replacements.
Ideal for heavy machinery or automotive applications where high radial loads are common. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCS3216
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Inner Ring No
  • Series Without Inner Ring
  • Bore Dia 2"
  • Bore Dia Tolerance 0.028mm to 0.053mm
  • Outer Dia 2.562"
  • Outer Dia Tolerance -0.015mm to 0
  • Width 1"
  • Width Tolerance -0.13mm to 0
  • Ring Material Steel
  • Cage Material Steel
  • Roller Material Steel
  • Dynamic Radial Load 11475 lbf
  • Static Radial Load 18900 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 8800 rpm
  • Weight 177 g

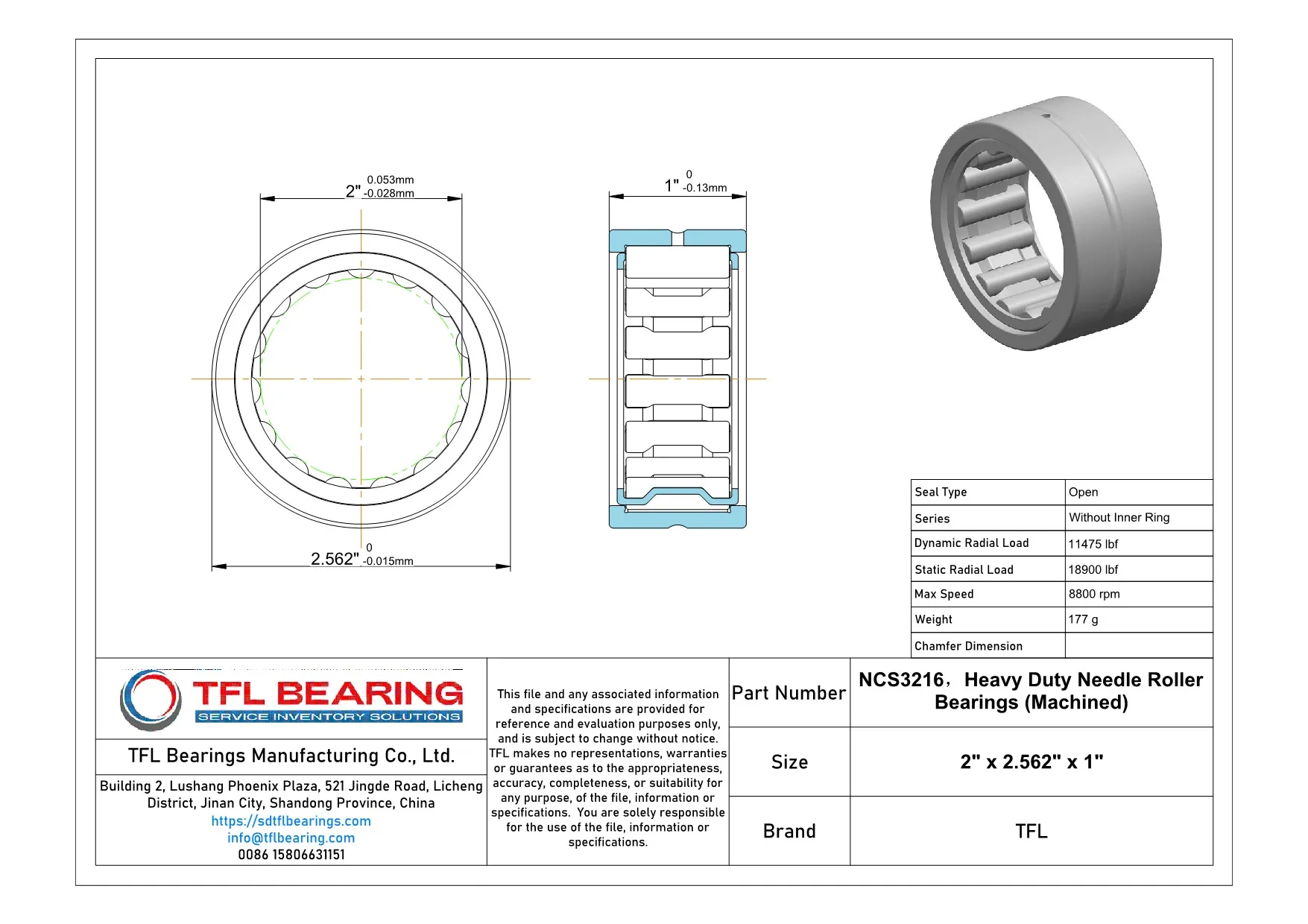

Heavy Duty Needle Roller Bearings (Machined) NCS3216 dimension drawing
Download DWG Download PDF

Features

Why Choose NCS3216 Bearing for Precision Tasks?
NCS3216 Bearing is crafted from high-quality steel, ensuring durability and strength for radial load applications.
Its dynamic radial load capacity of 11475 lbf makes it suitable for heavy-duty operations.
The open design and press-fit shaft mount type simplify installation, saving time and effort.
With a maximum speed of 8800 rpm, NCS3216 Bearing delivers reliable performance in various conditions.
The steel cage and rollers maintain alignment, reducing wear and extending the bearing’s service life.
It operates efficiently within a temperature range of -20 to 110 °C, adapting to different environments.

Application

Industrial Uses of NCS3216 Bearing
NCS3216 Bearing is commonly used in heavy machinery like construction equipment and agricultural tools, where its high radial load capacity handles demanding conditions. The press-fit design ensures a secure mount, reducing slippage during operation.
Where Is NCS3216 Bearing Used?
You’ll often spot NCS3216 Bearing in automotive transmissions and industrial gearboxes, thanks to its steel construction and needle roller design. It’s a reliable choice for high-speed applications, with a max speed of 8800 rpm.
Built for Heavy-Duty Use: NCS3216 Bearing
NCS3216 Bearing excels in applications like conveyor systems and printing presses, where its open design allows for easy lubrication. The inch sizing makes it compatible with a variety of North American machinery.
Automotive vs Industrial: Applications of NCS3216 Bearing
In automotive settings, NCS3216 Bearing supports components like differential systems, while in industrial use, it’s found in hydraulic pumps. Its steel rollers provide durability in both environments.
Perfect Fit for Automation: NCS3216 Bearing
NCS3216 Bearing is ideal for robotic arms and automated assembly lines, where its precision and load capacity ensure smooth movement. The lack of an inner ring simplifies installation in tight spaces.
