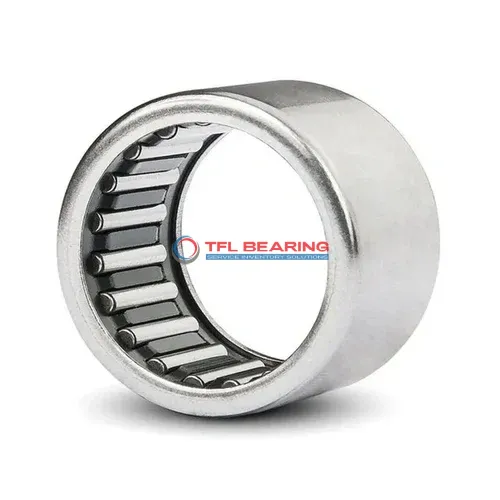

Drawn Cup Needle Roller Bearings BCE208

Drawn Cup Needle Roller Bearings BCE208

The BCE208 is a drawn cup needle roller bearing with a 1.25″ bore and 1.5″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 3035 lbf and operates smoothly at speeds up to 8200 RPM.
Its open design and press-fit shaft mount make installation straightforward, while the steel cage ensures durability. The bearing requires lubrication for optimal performance.
This model is interchangeable with INA bearings, offering a practical replacement option. Suitable for applications like automotive components or industrial machinery where radial loads are common.
With a temperature range of -20°C to 110°C and RoHS compliance, it’s a versatile choice for various environments. The compact width of 0.5″ makes it easy to fit in tight spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCE208
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.25"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.5"
  • Outer Dia Tolerance Not Rated
  • Width 0.5"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 3035 lbf
  • Static Radial Load 4991 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 8200 rpm
  • Weight 22 g
Drawn Cup Needle Roller Bearings BCE208 dimension drawing
Download DWG Download PDF

Features

Why Choose BCE208 Bearing for Precision Tasks?
BCE208 Bearing features a steel construction, offering strong resistance to radial loads with a dynamic capacity of 3035 lbf.
Its needle roller design ensures efficient load distribution, enhancing performance in compact spaces.
The press-fit shaft mount simplifies installation, saving time and effort.
With a maximum speed of 8,200 rpm, it delivers reliable operation in various applications.

Application

Common Applications of BCE208 Bearing
BCE208 Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor rollers and printing presses. Its steel construction ensures durability in demanding environments.
In automotive systems, BCE208 Bearing fits well in gearboxes and steering mechanisms, providing reliable performance under radial loads. The press-fit design makes installation straightforward, saving time during assembly.
For automation equipment, BCE208 Bearing’s needle roller design offers smooth motion in robotic arms and linear guides. Its open seal allows for easy lubrication, extending service life in high-speed applications.
In household appliances, BCE208 Bearing can be found in power tools and small motors, where its compact size and efficiency are key. The inch measurements make it compatible with many North American products.
