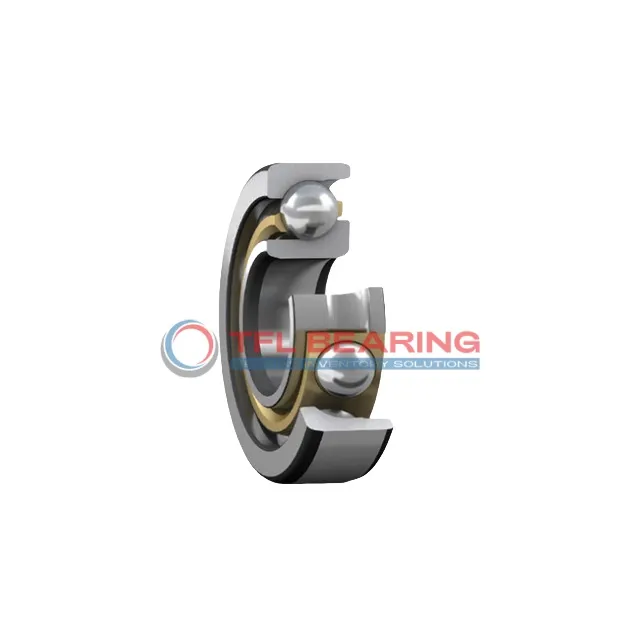

Single Row Angular Contact Ball Bearings (General) 718/710 ACMB

Single Row Angular Contact Ball Bearings (General) 718/710 ACMB

The 718/710 ACMB is a single-row angular contact ball bearing with a large 710mm bore and 870mm outer diameter, built from sturdy chrome steel. It manages radial loads up to 136125 lbf and operates at speeds up to 670 RPM.

Its open design simplifies lubrication, while the precise P6 tolerance ensures smooth performance. The bearing handles temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Suitable for heavy-duty machinery like industrial gearboxes or large rotating equipment where angular contact loads are present.

Weighing 92.4kg, it’s a robust choice for demanding applications. Compliant with RoHS and REACH standards for safe and environmentally friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 718/710 ACMB
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 710 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 870 mm
  • Outer Dia Tolerance -0.06mm to 0
  • Width 74 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 763.8 mm
  • Internal Diameter On Outer Ring 819.6 mm
  • Chamfer Dimension 4 mm
  • Distance Pressure Point (a) 221 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Dynamic Radial Load 136125 lbf
  • Static Radial Load 366750 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 670 rpm
  • Weight 92.4 kg
Single Row Angular Contact Ball Bearings (General) 718/710 ACMB dimension drawing
Download DWG Download PDF

Features

Performance Features of 718/710 ACMB Bearing

718/710 ACMB Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 136125 lbf, making it suitable for heavy-duty applications.

The single-row angular contact design ensures precise operation under angular loads.
With a maximum speed of 670 rpm, it balances performance and durability.

The P6 tolerance class guarantees high precision, ideal for demanding industrial uses.
Its open seal type allows for easy lubrication, maintaining smooth operation over time.

Application

Industrial Uses of 718/710 ACMB Bearing
718/710 ACMB Bearing is commonly used in large industrial machinery, such as heavy-duty gearboxes and rolling mills, where its high load capacity and precision are essential. The open design allows for easy lubrication, ensuring long service life in demanding conditions.

Where Is 718/710 ACMB Bearing Used?
You’ll often find 718/710 ACMB Bearing in wind turbine systems, where its ability to handle both radial and axial loads is crucial for reliable operation. The chrome steel construction also makes it suitable for high-stress environments like mining equipment.

Built for Heavy-Duty Use: 718/710 ACMB Bearing
718/710 ACMB Bearing excels in applications like large pumps and compressors, where its robust design and high static radial load capacity are key. The P6 tolerance class ensures consistent performance in precision-driven setups.

Automotive vs Aerospace: Applications of 718/710 ACMB Bearing
In automotive testing rigs, 718/710 ACMB Bearing provides stability under heavy loads, while in aerospace, its precision supports landing gear mechanisms. The metric sizing makes it versatile for various engineering needs.

Perfect Fit for Automation: 718/710 ACMB Bearing
718/710 ACMB Bearing is ideal for automated production lines, where its smooth operation and durability reduce downtime. The lubricated design ensures minimal maintenance, even in continuous-use scenarios.
