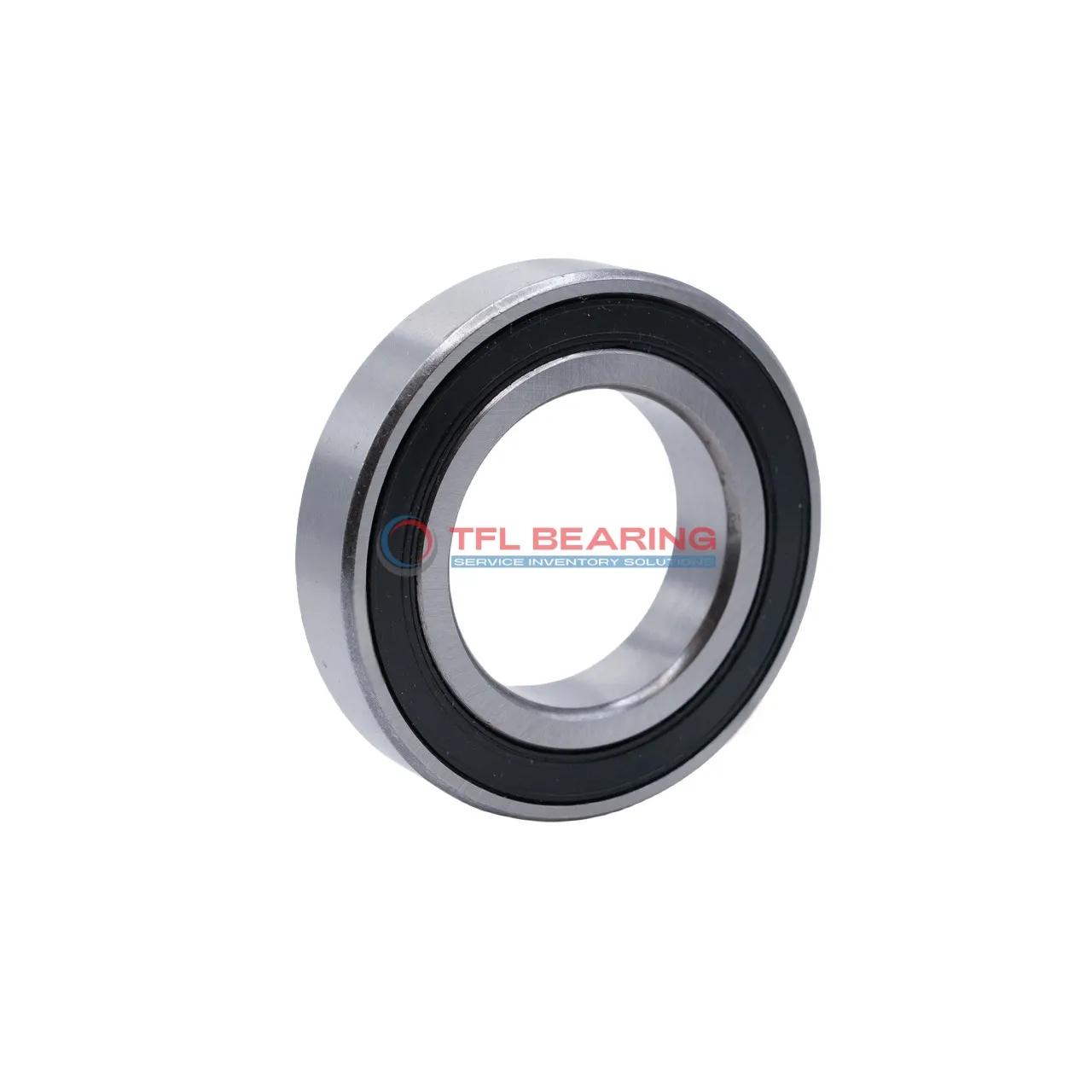

Single Row Deep Groove Ball Bearings 6008-2RS1TN9/C4HGJN

The 6008-2RS1TN9/C4HGJN is a single-row deep groove ball bearing with a 40mm bore and 68mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3754 lbf and operates smoothly at speeds up to 10,000 RPM.

Sealed on both sides, this bearing keeps dirt out and grease in, making it low-maintenance. The nylon cage reduces friction and noise, ideal for quieter applications.

With a C4 radial clearance, it handles slight misalignments and thermal expansion well. Suitable for temperatures from -30°C to 120°C, it works in varied environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for electric motors, pumps, or small machinery where radial loads dominate.

Weighing 192g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6008-2RS1TN9/C4HGJN
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C4
Bore Dia 40 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 68 mm
Outer Dia Tolerance -0.013mm to 0
Width 15 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Nylon
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 3754 lbf
Static Radial Load 2585 lbf
Max Speed 10000 rpm
Weight 192 g

Single Row Deep Groove Ball Bearings 6008-2RS1TN9/C4HGJN dimension drawing

Download DWG Download PDF

Features

How Does 6008-2RS1TN9/C4HGJN Bearing Reduce Friction?

6008-2RS1TN9/C4HGJN Bearing features a single row deep groove design, optimised for smooth radial load distribution.
The sealed construction prevents contaminants from entering, ensuring consistent performance.

Made from chrome steel rings and balls, 6008-2RS1TN9/C4HGJN Bearing offers reliable durability under high-speed conditions.
Its nylon cage reduces friction, contributing to quieter operation.

With a dynamic radial load capacity of 3754 lbf, 6008-2RS1TN9/C4HGJN Bearing handles demanding applications effortlessly.
The C4 radial clearance ensures stable performance across a wide temperature range.

6008-2RS1TN9/C4HGJN Bearing’s compact design (40mm×68mm×15mm) makes it suitable for space-constrained installations.
Its maximum speed of 10,000 rpm balances efficiency and longevity.

Application

Industrial Uses of 6008-2RS1TN9/C4HGJN Bearing
This bearing is commonly used in conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The nylon cage reduces friction, making it efficient for continuous operation.

How Does 6008-2RS1TN9/C4HGJN Bearing Improve Performance?
In automotive applications like alternators and water pumps, this bearing handles radial loads smoothly. Its C4 clearance ensures reliable performance even under varying temperatures.

Perfect Fit for Automation: 6008-2RS1TN9/C4HGJN Bearing
Robotic arms and packaging machines benefit from its sealed construction, which extends service life. The chrome steel rings provide durability in high-speed environments.

Medical vs Industrial: Where 6008-2RS1TN9/C4HGJN Bearing Excels
While it’s suitable for industrial gearboxes, its precision also makes it a good fit for medical centrifuges. The ABEC 1 tolerance ensures consistent performance in both settings.
