Double Direction Thrust Ball Bearings 52232 M

Double Direction Thrust Ball Bearings 52232 M

The 52232 M is a double-direction thrust ball bearing with a 140mm bore and 225mm outer diameter, built from sturdy chrome steel. It manages heavy thrust loads up to 55575 lbf and operates at speeds up to 1300 RPM.

Its open design simplifies maintenance, while the brass cage enhances durability and reduces friction. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is compatible with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial presses or large gear systems where high thrust loads are expected.

Weighing 11.4kg, it’s a robust unit designed for long-term use. Compliant with RoHS and REACH standards for environmental safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 52232 M
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 225 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 90 mm
  • Width Tolerance +0.2mm to -0.6mm
  • Chamfer Dimension Housing Washer 1.5 mm
  • Chamfer Dimension Shaft Washer 1.1 mm
  • Inner Dia Housing Washer 163 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Thrust Load 55575 lbf
  • Static Thrust Load 180000 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1300 rpm
  • Weight 11.4 kg

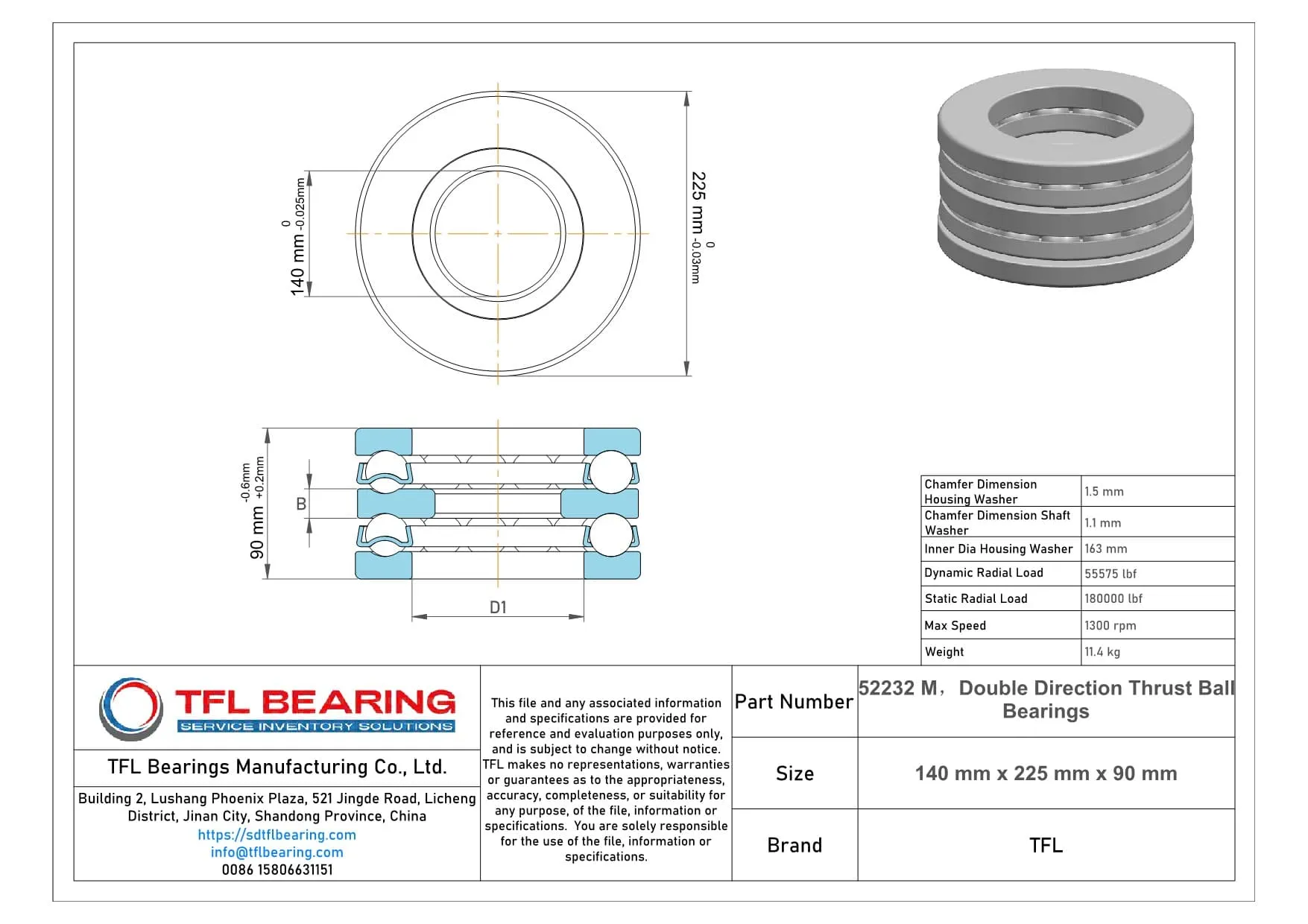

Double Direction Thrust Ball Bearings 52232 M dimension drawing
Download DWG Download PDF

Features

How Does 52232 M Bearing Handle Heavy Loads?

52232 M Bearing is built with chrome steel rings and balls, offering robust resistance to extreme thrust loads.
Its dynamic thrust load capacity reaches 55575 lbf, making it suitable for heavy-duty industrial applications.
The brass cage ensures smooth ball alignment, reducing friction and enhancing durability.
With a maximum speed of 1,300 rpm, it delivers reliable performance under high-stress conditions.

Why Choose 52232 M Bearing for Precision Tasks?

52232 M Bearing features precise dimensions with a bore diameter tolerance of -0.025mm to 0, ensuring accurate fitment.
The chrome steel construction provides consistent performance, even in demanding environments.
Its open seal design allows for easy inspection and maintenance, reducing downtime.
The bearing operates efficiently within a temperature range of -30° to 110°C, adapting to various working conditions.

Engineered for Reliability: 52232 M Bearing

52232 M Bearing’s chrome steel components resist wear, extending its operational life.
The static thrust load capacity of 180000 lbf ensures stability under heavy loads.
Its brass cage minimises noise, making it ideal for precision machinery.
The bearing’s RoHS and REACH compliance guarantees environmental safety and regulatory adherence.

Structural Advantages of 52232 M Bearing

52232 M Bearing’s wide width of 90 mm provides added stability and load distribution.
The chamfered edges on housing and shaft washers facilitate easier installation.
Its brass cage material reduces friction, promoting smoother operation.
With a weight of 11.4 kg, it is designed for robust industrial applications.

What Makes 52232 M Bearing Suitable for High-Temperature Applications?

52232 M Bearing performs reliably in temperatures ranging from -30° to 110°C.
The chrome steel construction maintains integrity under thermal stress.
Its open design allows for better heat dissipation, preventing overheating.
The bearing’s high static thrust load capacity ensures consistent performance in varied conditions.

Application

Industrial Uses of 52232 M Bearing
52232 M Bearing is commonly used in heavy machinery, such as hydraulic presses and large conveyor systems, where its high thrust load capacity is essential. The brass cage adds durability, making it suitable for continuous operation in demanding environments.

In automotive applications, 52232 M Bearing can handle the axial loads found in truck transmissions and heavy-duty gearboxes. Its metric dimensions ensure compatibility with a variety of industrial and commercial vehicles.

For wind turbine systems, 52232 M Bearing’s robust design helps manage the axial forces generated by rotor blades. The chrome steel construction ensures long-term reliability even in harsh weather conditions.

Where Is 52232 M Bearing Used?
52232 M Bearing is often found in construction equipment like cranes and excavators, where its ability to handle heavy axial loads is crucial. The open seal design allows for easy lubrication, extending its service life.

In marine applications, 52232 M Bearing supports propeller shafts and steering mechanisms. Its resistance to corrosion and high static thrust load capacity make it a reliable choice for maritime use.

Built for Heavy-Duty Use: 52232 M Bearing
52232 M Bearing excels in mining equipment, where it withstands extreme loads and vibrations. The brass cage reduces friction, ensuring smoother operation under tough conditions.

In power generation plants, 52232 M Bearing is used in turbines and generators to manage axial forces efficiently. Its temperature tolerance makes it suitable for both high and low-temperature environments.
