Single Row Angular Contact Ball Bearings (General) 718/1000 AMB

Brand: TFL Bearing Interchangeable: SKF 718/1000 AMB 1000 mm × 1220 mm × 100 mm Metric Open
Part number: 718/1000 AMB

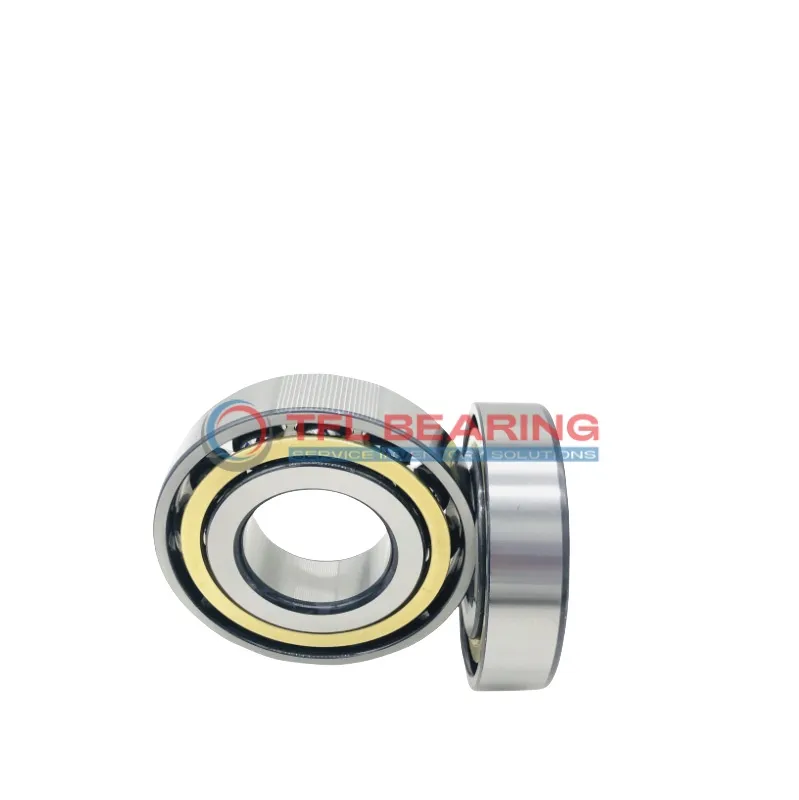

Single Row Angular Contact Ball Bearings (General) 718/1000 AMB
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia1,000 mm
Bore Dia Tolerance-0.06mm to 0
Outer Dia1,220 mm
Outer Dia Tolerance-0.075mm to 0
Width100 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)1,073.3 mm
Internal Diameter On Outer Ring1,150.8 mm
Chamfer Dimension6 mm
Performance
Dynamic Radial Load207,675 lbf
Static Radial Load618,750 lbf
Temperature Range-30° to 110 °C
Max Speed430 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)370 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight243 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 718/1000 AMB is a large single-row angular contact ball bearing with a 1000mm bore and 1220mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 207675 lbf and operates at speeds up to 430 RPM.

Its 40° contact angle efficiently manages combined radial and axial loads, while the brass cage enhances durability. The open design simplifies lubrication, and it performs reliably in temperatures from -30°C to 110°C.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or large machinery where high radial loads are present.

Weighing 243kg, it’s built for robust performance. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use. The P6 tolerance class (ABEC-3) offers precision for demanding setups.

Features

Performance Features of 718/1000 AMB Bearing

718/1000 AMB Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide high strength, supporting dynamic radial loads up to 207675 lbf.

The brass cage ensures smooth ball movement, reducing friction and wear.
With a P6 tolerance class, it offers reliable precision for demanding applications.

718/1000 AMB Bearing operates in temperatures from -30° to 110°C, suitable for varied environments.
Its open design allows easy lubrication, maintaining performance over time.

The large bore diameter of 1000 mm makes it suitable for heavy industrial use.
Despite its size, it maintains balanced operation at speeds up to 430 rpm.

Application

Key Fields for 718/1000 AMB Bearing
718/1000 AMB Bearing is commonly used in large industrial machinery, such as heavy-duty gearboxes and rolling mills, where its angular contact design efficiently handles combined radial and axial loads.
The brass cage ensures smooth operation even under high stress, making it suitable for prolonged use in demanding environments.

Where Is 718/1000 AMB Bearing Used?
In wind turbine systems, 718/1000 AMB Bearing supports the main shaft, providing stability and durability under varying wind conditions.
Its P6 tolerance class ensures precise alignment, crucial for maintaining turbine efficiency over time.

Built for Heavy-Duty Use: 718/1000 AMB Bearing
718/1000 AMB Bearing excels in mining equipment, where its chrome steel construction withstands extreme loads and harsh conditions.
The open seal design allows for easy lubrication, extending bearing life in abrasive environments.

Automotive vs Aerospace: Applications of 718/1000 AMB Bearing
In automotive applications, 718/1000 AMB Bearing is found in large truck transmissions, handling high torque and angular loads.
For aerospace, its precision and reliability make it suitable for landing gear systems, where performance under stress is critical.

Practical Applications of 718/1000 AMB Bearing
718/1000 AMB Bearing is ideal for paper manufacturing machinery, where its ability to handle heavy loads ensures consistent production.
The lubricated design reduces friction, making it a practical choice for high-load, low-speed operations.
