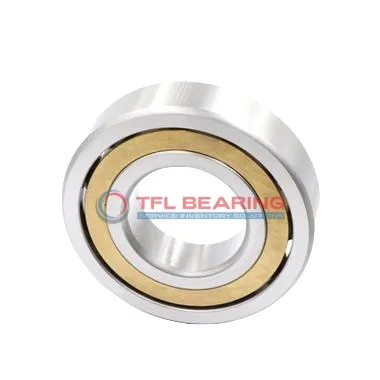

Single Row Angular Contact Ball Bearings (General) 718/530 AMB

Single Row Angular Contact Ball Bearings (General) 718/530 AMB

The 718/530 AMB is a single-row angular contact ball bearing with a 530mm bore and 650mm outer diameter, built from sturdy chrome steel. It manages radial loads up to 87750 lbf and operates smoothly at speeds up to 1000 RPM.

With a 30° contact angle, it handles combined radial and axial loads effectively. The brass cage adds durability, while the open design simplifies lubrication.

This bearing suits heavy-duty applications like industrial gearboxes or large machinery. Its P6 tolerance class ensures reliable performance in precision settings.

Weighing 39.5kg, it’s designed for robust use within a -30°C to 110°C range. Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 718/530 AMB
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 30°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 530 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 650 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 56 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 570 mm
  • Internal Diameter On Outer Ring 612.55 mm
  • Chamfer Dimension 3 mm
  • Distance Pressure Point (a) 198 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 87750 lbf
  • Static Radial Load 202500 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 1000 rpm
  • Weight 39.5 kg
Single Row Angular Contact Ball Bearings (General) 718/530 AMB dimension drawing
Download DWG Download PDF

Features

Performance Features of 718/530 AMB Bearing

718/530 AMB Bearing is built with a 30° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls enhance durability under high radial loads, up to 87,750 lbf dynamically.

The brass cage ensures smooth ball movement, reducing friction and wear over time.
With a P6 tolerance class, 718/530 AMB Bearing offers reliable precision for industrial use.

Designed for speeds up to 1,000 rpm, it maintains performance in temperatures from -30° to 110°C.
The open seal type allows easy lubrication, supporting long-term efficiency.

Application

Industrial Uses of 718/530 AMB Bearing
The 718/530 AMB Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its angular contact design handles combined radial and axial loads efficiently. Its brass cage ensures smooth operation even under high stress.

Where Is 718/530 AMB Bearing Used?
You’ll often find 718/530 AMB Bearing in wind turbine gearboxes, where its P6 tolerance class provides the precision needed for consistent performance. The chrome steel construction also makes it durable in harsh outdoor conditions.

Built for Heavy-Duty Use: 718/530 AMB Bearing
With a dynamic radial load capacity of 87,750 lbf, 718/530 AMB Bearing is ideal for applications like rolling mills and mining equipment. Its 30° contact angle ensures stability under heavy loads.

Automotive vs Aerospace: Applications of 718/530 AMB Bearing
In automotive systems, 718/530 AMB Bearing supports large drivetrain components, while in aerospace, it’s used in landing gear mechanisms. The metric sizing makes it versatile for both industries.

Perfect Fit for Automation: 718/530 AMB Bearing
718/530 AMB Bearing works well in robotic arms and automated assembly lines, where its precise movement and high load capacity are essential. The open design allows for easy lubrication maintenance.
