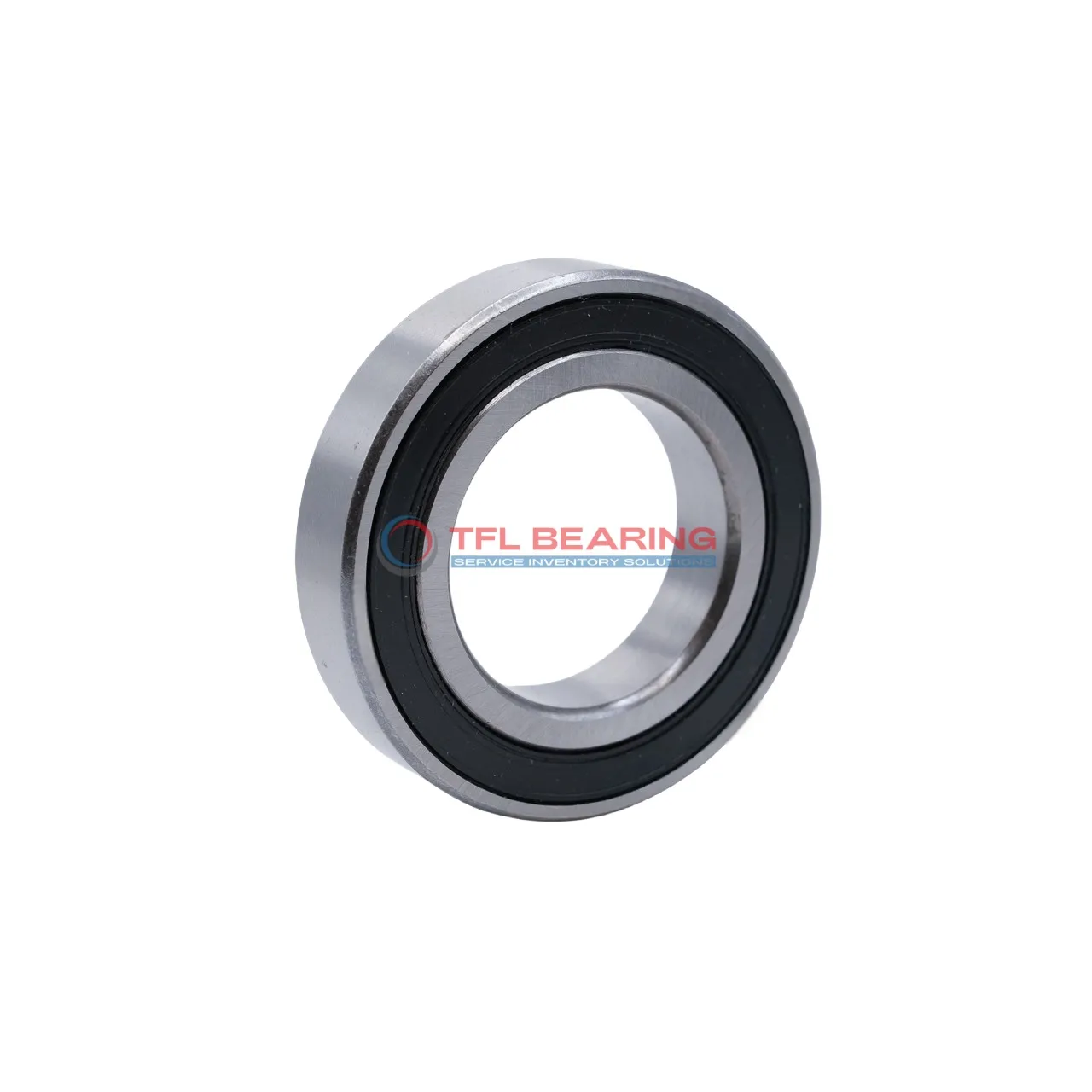

Single Row Deep Groove Ball Bearings 6208-2RS1/C3LTF9

Single Row Deep Groove Ball Bearings 6208-2RS1/C3LTF9

The 6208-2RS1/C3LTF9 is a single-row deep groove ball bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 6542 lbf and operates smoothly at speeds up to 8300 RPM.

Its sealed design keeps dirt out and grease in, reducing maintenance needs. The chrome steel cage adds durability, while the C3 radial clearance allows for slight misalignment.

This bearing works well in temperatures from -30°C to 120°C, making it versatile for various conditions. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for applications like electric motors or pumps where radial loads are common. Weighing 366g, it’s a robust choice for its size, compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6208-2RS1/C3LTF9
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6542 lbf
  • Static Radial Load 4002 lbf
  • Max Speed 8300 rpm
  • Weight 366 g
  • price（$） 7.803
Single Row Deep Groove Ball Bearings 6208-2RS1/C3LTF9 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6208-2RS1/C3LTF9 Bearing

6208-2RS1/C3LTF9 Bearing is built with chrome steel rings and balls, offering strong radial load support.
Its dynamic radial load capacity reaches 6542 lbf, making it suitable for various industrial applications.

The sealed design of 6208-2RS1/C3LTF9 Bearing protects against dust and moisture, enhancing durability.
With a maximum speed of 8,300 rpm, it ensures smooth operation in demanding conditions.

6208-2RS1/C3LTF9 Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its C3 radial clearance provides flexibility in different operating environments.

The chrome steel cage maintains ball alignment, reducing friction and wear.
This design ensures long service life and consistent performance.

6208-2RS1/C3LTF9 Bearing is easy to install and requires minimal maintenance.
Its sealed construction helps keep lubrication in and contaminants out.

Application

Common Applications of 6208-2RS1/C3LTF9 Bearing
6208-2RS1/C3LTF9 Bearing is widely used in industrial machinery, such as electric motors and pumps, where its sealed design helps keep contaminants out. The C3 clearance ensures smooth operation even under varying thermal conditions.
In automotive applications, 6208-2RS1/C3LTF9 Bearing fits well in wheel hubs and alternators, providing reliable performance under radial loads. Its chrome steel construction offers durability for long-term use.
For household appliances like washing machines, 6208-2RS1/C3LTF9 Bearing’s low maintenance and quiet operation make it a popular choice. The sealed design also protects against dust and moisture.
In automation systems, 6208-2RS1/C3LTF9 Bearing supports robotic arms and conveyor belts, where precision and reliability are key. The metric sizing ensures compatibility with standard components.
