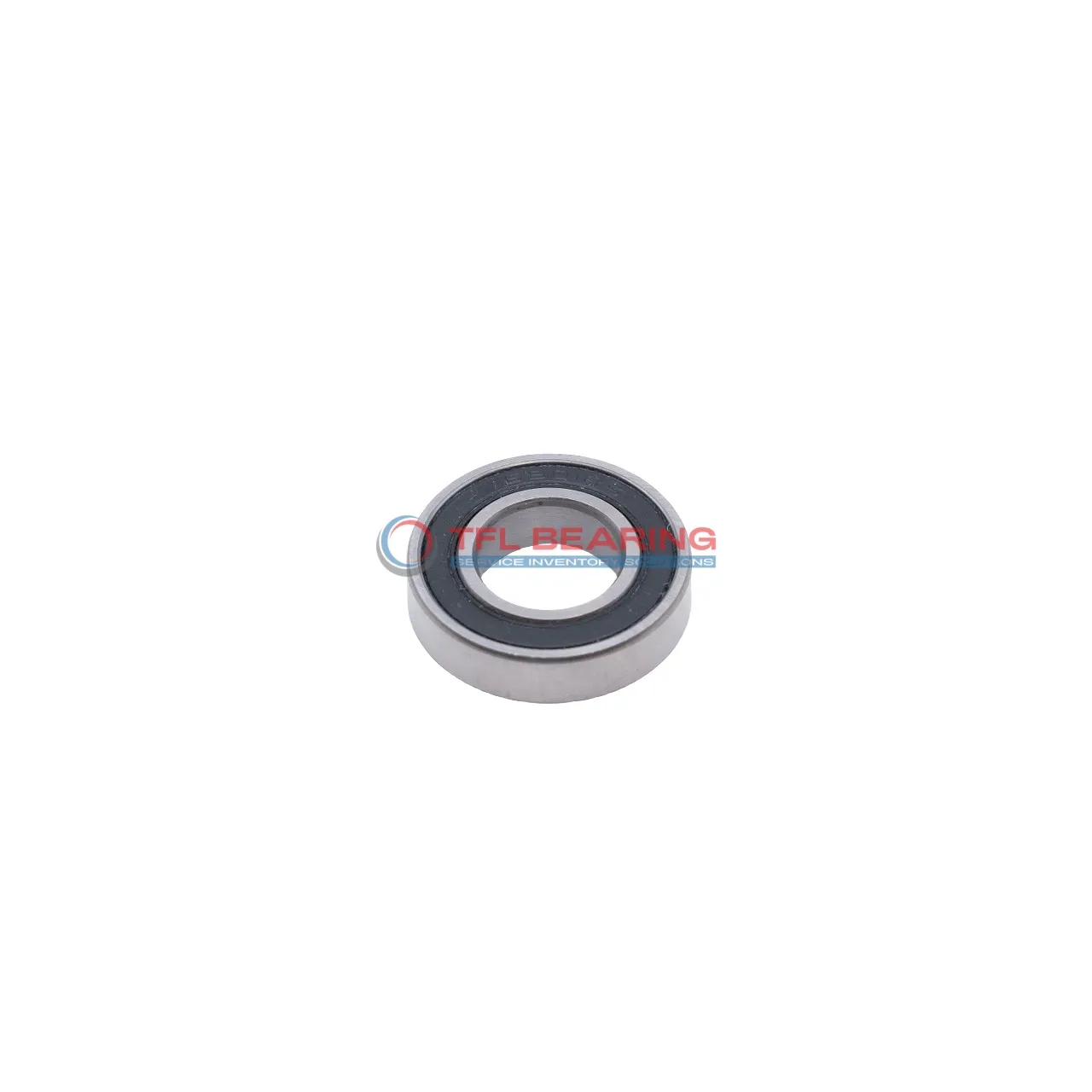

Single Row Deep Groove Ball Bearings 6201-2RSH/C2EVT304

Single Row Deep Groove Ball Bearings 6201-2RSH/C2EVT304

The 6201-2RSH/C2EVT304 is a compact single-row deep groove ball bearing, measuring 12mm by 32mm by 10mm. Made from durable chrome steel, it handles radial loads up to 1529 lbf and spins smoothly at speeds up to 22,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance. The C2 radial clearance ensures smooth operation under varying temperatures, from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for small motors, pumps, or appliances where space is limited.

Weighing just 37g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6201-2RSH/C2EVT304
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C2
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1529 lbf
  • Static Radial Load 686 lbf
  • Max Speed 22000 rpm
  • Weight 37 g
Single Row Deep Groove Ball Bearings 6201-2RSH/C2EVT304 dimension drawing
Download DWG Download PDF

Features

Why Choose 6201-2RSH/C2EVT304 Bearing for Precision Tasks?

6201-2RSH/C2EVT304 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 1529 lbf, it handles demanding tasks efficiently.
The bearing operates smoothly at speeds up to 22,000 rpm, making it suitable for high-speed applications.

Its C2 radial clearance provides optimal performance, balancing precision and longevity.
The temperature range of -30°C to 120°C allows reliable operation in various environments.

Application

Common Applications of 6201-2RSH/C2EVT304 Bearing
In industrial settings, 6201-2RSH/C2EVT304 Bearing is commonly used in electric motors and pumps, where its sealed design helps keep out contaminants. The chrome steel construction ensures durability even in demanding environments.

Where Is 6201-2RSH/C2EVT304 Bearing Used?
You’ll often find 6201-2RSH/C2EVT304 Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load handling. Its C2 clearance also makes it suitable for moderate-speed operations.

Ideal for Precision: 6201-2RSH/C2EVT304 Bearing
For small machinery and appliances, 6201-2RSH/C2EVT304 Bearing offers smooth performance with minimal maintenance. The sealed design is particularly handy in dusty or humid conditions.

Automotive vs Industrial: Applications of 6201-2RSH/C2EVT304 Bearing
In cars, 6201-2RSH/C2EVT304 Bearing handles radial loads in components like fans and pulleys. In factories, it’s a go-to for conveyor systems and light machinery due to its balanced performance.
