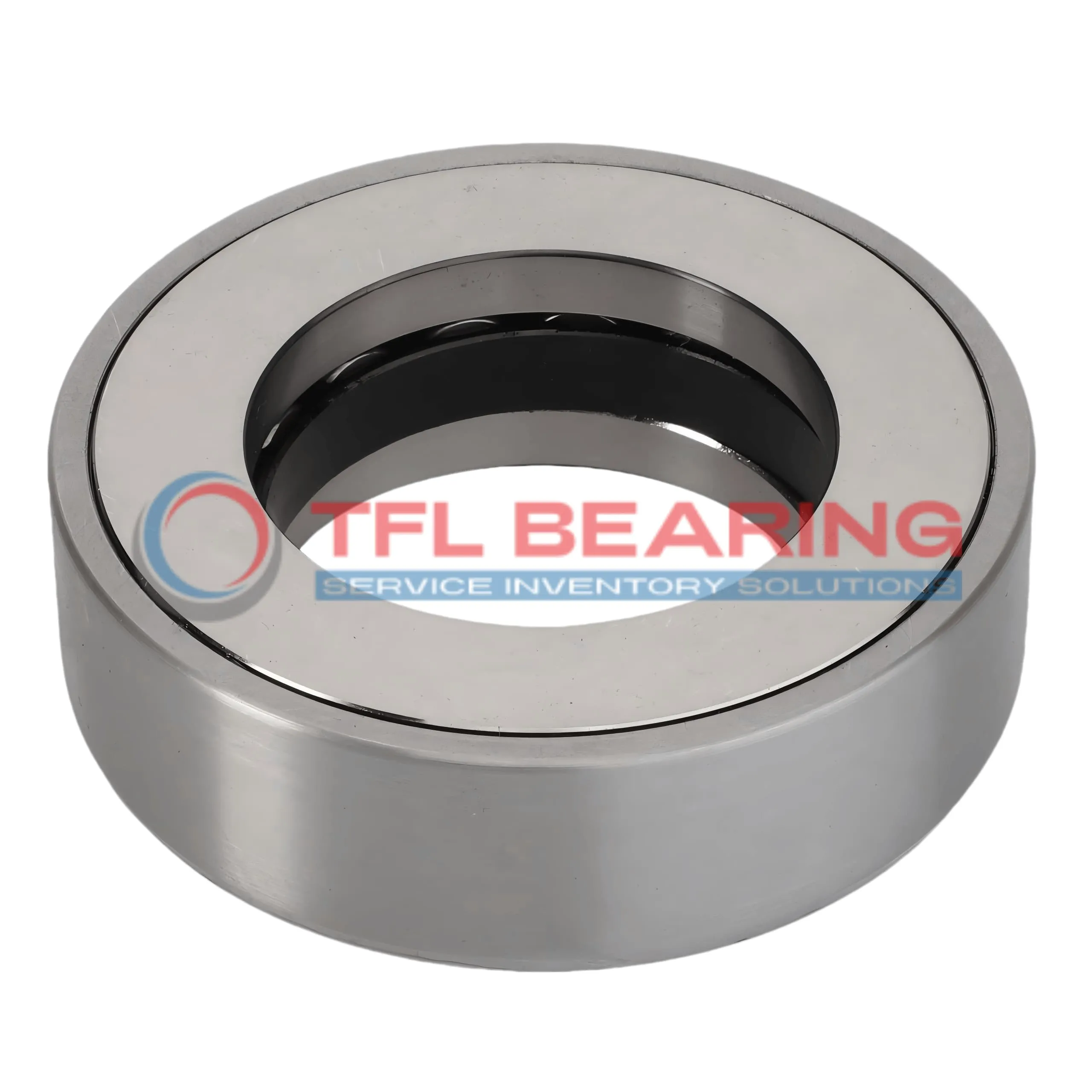

Thrust Ball Bearing With Outside Band T-100-19

Thrust Ball Bearing With Outside Band T-100-19

The T-100-19 is a thrust ball bearing with a 1.44″ bore and 2.5″ outer diameter, crafted from durable 52100 chrome steel. It handles thrust loads up to 5730 lbf and performs well across various speeds, from 100 to 1500 RPM.

Its design includes an outside band for added stability, and it requires regular lubrication for optimal performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

With 16 balls each measuring 3/8″, it offers reliable load distribution. Weighing 0.31kg, it’s sturdy yet manageable for its size. Ideal for machinery where consistent thrust load handling is needed, such as industrial equipment or automotive applications.

Compliant with RoHS and REACH standards, it’s a safe and dependable choice for various engineering needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-19
  • Brand TFL
  • Bore Dia 1.437500"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.468750"
  • Outer Dia 2.5"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.937500"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 3/8"
  • Ball Qty 16
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 5730 lbf
  • Dynamic Thrust Load(100 RPM) 3775 lbf
  • Dynamic Thrust Load(500 RPM) 2325 lbf
  • Dynamic Thrust Load(1500 RPM) 1670 lbf
  • Static Thrust Load 20103 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.31 kg
Thrust Ball Bearing With Outside Band T-100-19 dimension drawing
Download DWG Download PDF

Features

Why Choose T-100-19 Bearing for Precision Tasks?

T-100-19 Bearing is crafted from 52100 chrome steel, offering excellent resistance to wear and high load capacity.
Its static thrust load of 20103 lbf ensures reliable performance in demanding applications.

The bearing’s precise dimensions, including a bore dia of 1.437500″, provide a snug fit for accurate alignment.
With a temperature range of -30° to 110°C, it performs well in various environments.

T-100-19 Bearing’s 16 balls ensure smooth operation, reducing friction and noise.
Its dynamic thrust load capacity adapts to different speeds, making it versatile for multiple uses.

Application

Industrial Uses of T-100-19 Bearing
T-100-19 Bearing is commonly used in heavy machinery, such as hydraulic pumps and gear reducers, where its high thrust load capacity ensures reliable performance. The inch sizing makes it a good fit for equipment designed to imperial measurements.

What Makes T-100-19 Bearing a Preferred Choice?
In automotive applications, T-100-19 Bearing handles thrust loads in components like steering systems and transmissions. Its chrome steel construction offers durability, even under frequent use.

Built for Heavy-Duty Use: T-100-19 Bearing
For industrial fans and compressors, T-100-19 Bearing provides stable operation thanks to its precise tolerances. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of T-100-19 Bearing
In automotive settings, T-100-19 Bearing supports high-load scenarios like clutch assemblies. For aerospace, its reliability makes it suitable for auxiliary systems requiring consistent thrust handling.
