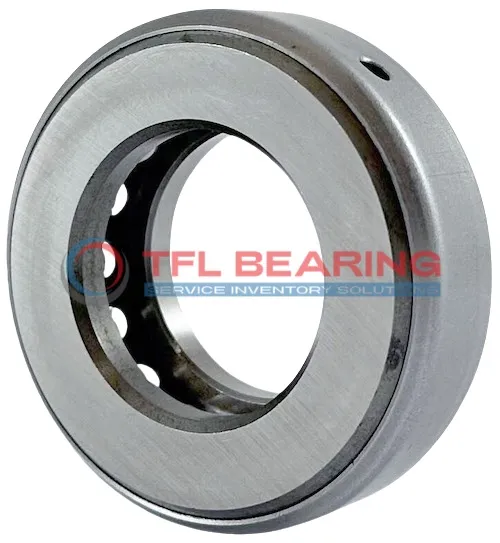

Thrust Ball Bearing With Outside Band B34

Thrust Ball Bearing With Outside Band B34

The B34 is a thrust ball bearing with a 2.563″ bore and 3.969″ outer diameter, crafted from durable 52100 chrome steel. It handles thrust loads up to 14300 lbf and operates smoothly at speeds up to 1800 RPM.

Its robust design includes an outside band for added stability, making it suitable for heavy-duty applications. The bearing requires regular lubrication to maintain optimal performance.

This model performs well in temperatures ranging from -30°C to 110°C, ensuring reliability in various environments. It’s compliant with RoHS and REACH standards for safe use.

Ideal for machinery with high thrust loads, such as industrial gearboxes or heavy equipment. Weighing 0.59kg, it offers a solid balance of strength and manageability.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number B34
  • Brand TFL
  • Bore Dia 2.563"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 2.594"
  • Outer Dia 3.969"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.875"
  • Width Tolerance -0.005" to +0.005"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 14300 lbf
  • Static Thrust Load 39500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1800 rpm
  • Weight 0.59 kg
Thrust Ball Bearing With Outside Band B34 dimension drawing
Download DWG Download PDF

Features

Why Choose B34 Bearing for Precision Tasks?

B34 Bearing is crafted from 52100 chrome steel, offering robust performance in thrust applications.
Its dynamic thrust load capacity of 14,300 lbf ensures reliable operation under heavy loads.
The precise bore diameter tolerance of +0.001″ to +0.003″ guarantees a snug fit for accurate alignment.
With a temperature range of -30° to 110°C, it performs well in varied environments.

Application

Industrial Uses of B34 Bearing
B34 Bearing is commonly used in heavy machinery, such as hydraulic pumps and gearboxes, where its inch sizing fits standard industrial equipment. The chrome steel construction ensures it can handle significant thrust loads without compromising performance.

Where Is B34 Bearing Used?
You’ll often find B34 Bearing in automotive applications like clutch assemblies, where its precise tolerances and durability are essential. Its ability to operate in temperatures from -30° to 110°C makes it versatile for various climates.

Built for Heavy-Duty Use: B34 Bearing
B34 Bearing excels in construction equipment, such as cranes and excavators, thanks to its high static thrust load capacity of 39,500 lbf. The open design allows for easy lubrication, extending its service life in demanding conditions.

Automotive vs Aerospace: Applications of B34 Bearing
In automotive systems, B34 Bearing supports transmissions and differentials, while in aerospace, it’s used in auxiliary equipment due to its reliability. The inch measurements make it a practical choice for both industries.
