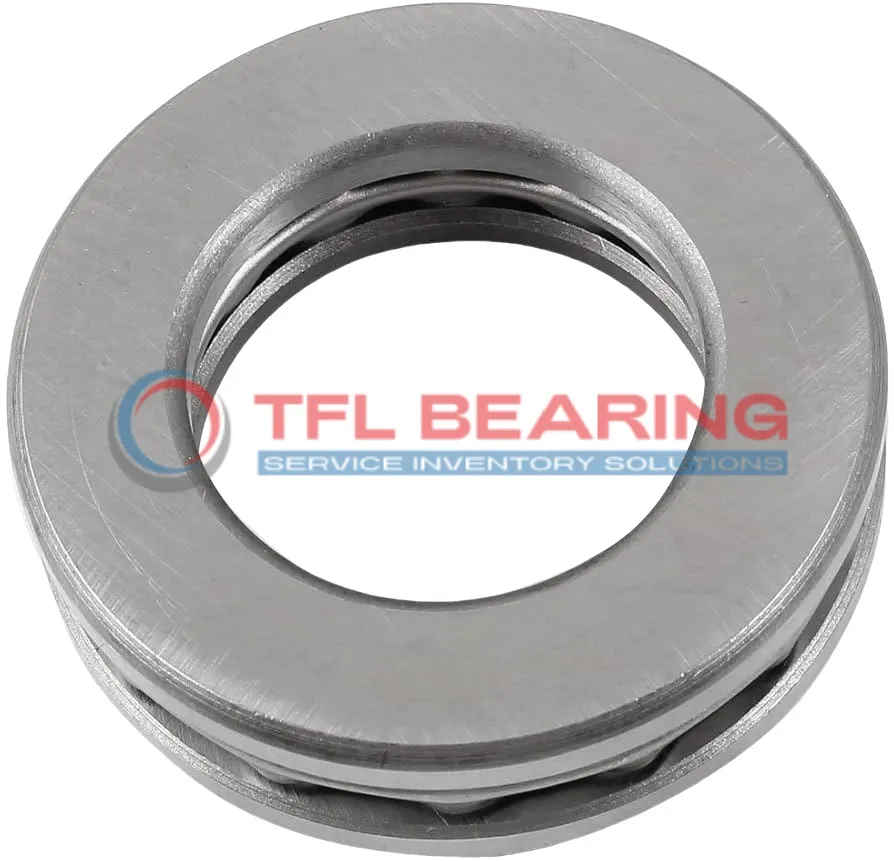

Thrust Ball Bearing With Outside Band T-100-49

Thrust Ball Bearing With Outside Band T-100-49

The T-100-49 is a robust thrust ball bearing measuring 4.5″ in bore diameter and 6.25″ in outer diameter, with a width of 1.375″. Made from durable 52100 chrome steel, it’s built to handle heavy thrust loads up to 14,860 lbf.

Its design includes an outside band for added stability, and it performs well across a range of speeds, from 100 RPM to 500 RPM. The bearing requires regular lubrication to maintain smooth operation.

With a static thrust load capacity of 84,811 lbf, it’s suitable for demanding applications like heavy machinery or industrial equipment. It operates reliably in temperatures from -30°C to 110°C.

Weighing 2.03 kg, this bearing is compliant with RoHS and REACH standards, ensuring safe and environmentally friendly use. Its inch measurements make it a practical choice for systems using imperial units.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-49
  • Brand TFL
  • Bore Dia 4.5"
  • Bore Dia Tolerance +0.003" to +0.007"
  • Inner Dia Housing Washer 4.562500"
  • Outer Dia 6.25"
  • Outer Dia Tolerance -0.031" to +0.031"
  • Width 1.375000"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 9/16"
  • Ball Qty 30
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 14860 lbf
  • Dynamic Thrust Load(100 RPM) 9790 lbf
  • Dynamic Thrust Load(500 RPM) 6030 lbf
  • Static Thrust Load 84811 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.03 kg

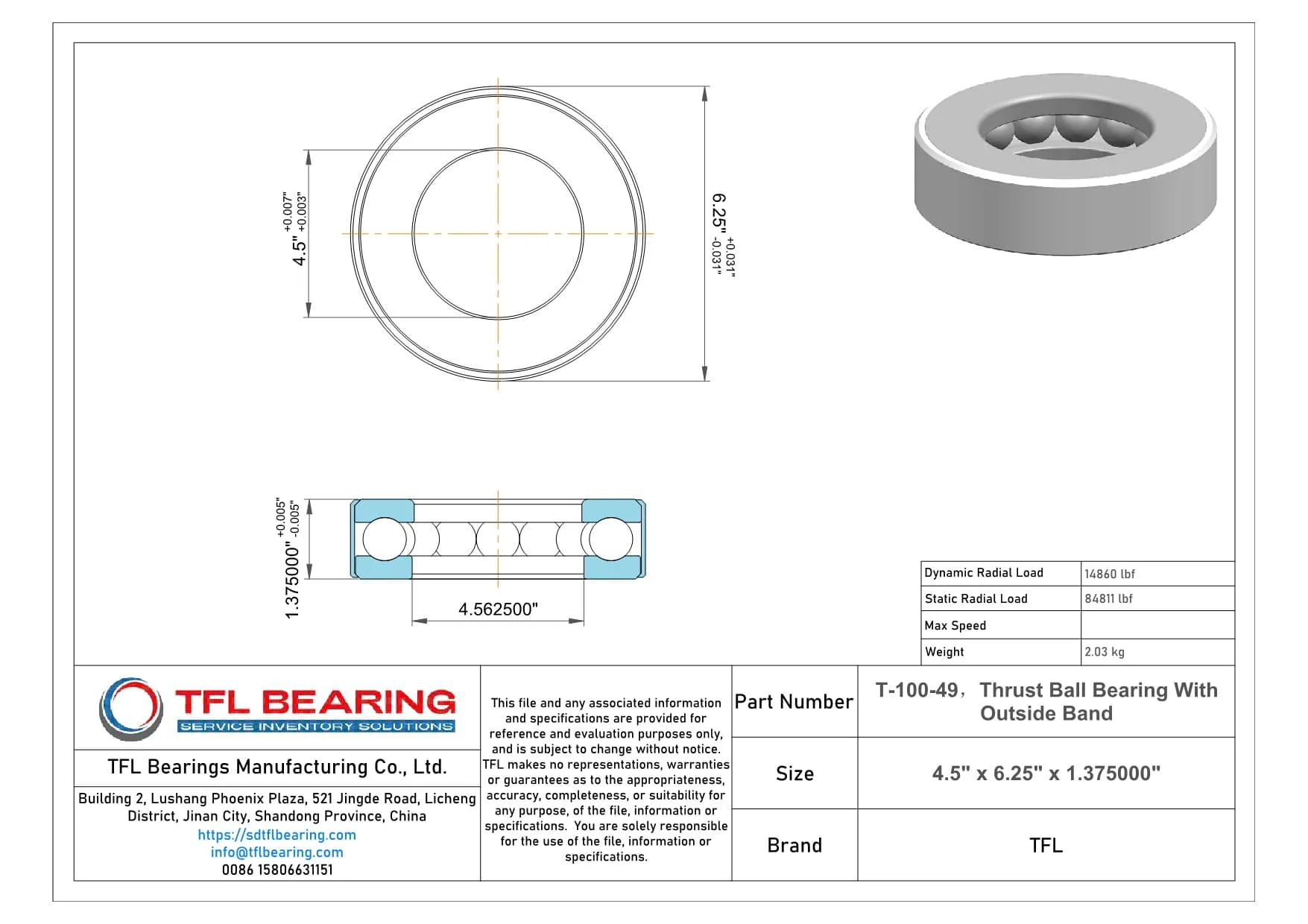

Thrust Ball Bearing With Outside Band T-100-49 dimension drawing
Download DWG Download PDF

Features

Why Choose T-100-49 Bearing for Precision Tasks?

T-100-49 Bearing is crafted from 52100 chrome steel, offering excellent durability and resistance to wear.

Its dynamic thrust load capacity of 14,860 lbf ensures reliable performance under heavy loads.

The bearing’s precise dimensions, including a 4.5″ bore and 6.25″ outer diameter, make it ideal for exacting applications.

With a temperature range of -30° to 110°C, it performs well in various environments.

Application

Industrial Uses of T-100-49 Bearing
T-100-49 Bearing is commonly used in heavy machinery, such as hydraulic presses and large gearboxes, where its high thrust load capacity is essential. The inch sizing makes it a good fit for equipment designed to imperial measurements.

In automotive applications, T-100-49 Bearing can handle the demands of heavy-duty transmissions and drivetrains. Its chrome steel construction ensures durability even under constant stress and high temperatures.

For industrial automation, T-100-49 Bearing provides reliable performance in robotic arms and conveyor systems. The open design allows for easy lubrication, which helps maintain smooth operation over time.

Where Is T-100-49 Bearing Used?
You’ll often find T-100-49 Bearing in construction equipment like cranes and bulldozers, where its robust design handles heavy axial loads. The wide temperature range also makes it suitable for outdoor use in varying climates.

In manufacturing setups, T-100-49 Bearing supports machinery like lathes and milling machines. Its precise tolerances ensure consistent performance, reducing downtime for maintenance.

Built for Heavy-Duty Use: T-100-49 Bearing
T-100-49 Bearing excels in applications like mining equipment, where its high static thrust load capacity is crucial. The stainless steel balls and rings provide long-lasting wear resistance.

For agricultural machinery, T-100-49 Bearing withstands the harsh conditions of tractors and harvesters. Its design ensures reliable operation even in dusty or wet environments.
