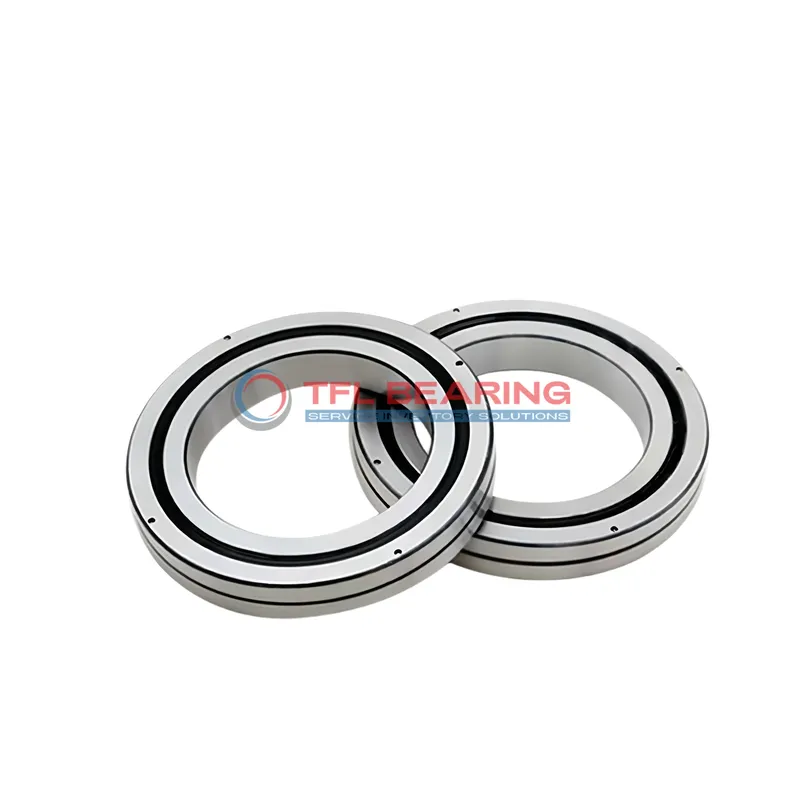

RA Crossed Roller Bearings RA6008CUU

RA Crossed Roller Bearings RA6008CUU

The RA6008CUU is a compact crossed roller bearing measuring 60mm in bore and 76mm in outer diameter, with a slim 8mm width. Made from sturdy steel, it handles combined loads with ease.

Its double-seal design keeps contaminants out while maintaining smooth operation. The bearing is press-fit mounted, ensuring a secure fit on shafts.

With a basic load rating of 5.68kN, it performs reliably in temperatures from 0° to 230°F. The ABEC5 precision rating makes it suitable for accurate applications.

Ideal for rotary tables or robotic arms where space is limited but precision is key. Compliant with RoHS and REACH standards, it weighs just 0.09kg for easy handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RA6008CUU
  • Brand TFL
  • Size 60 mm x 76 mm x 8 mm
  • Bore Dia 60 mm
  • Outer Dia 76 mm
  • Width 8 mm
  • R(min) 0.5 mm
  • Shoulder Height Ds(max) 63.5 mm
  • Shoulder Height Dh(min) 70.5 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 5.68 kN
  • Basic Load Rating Co 8.68 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.09 Kg

Features

How Is RA6008CUU Bearing Engineered for Reliability?

RA6008CUU Bearing features a crossed roller design, providing high precision and stability for combined load applications.
Its steel rings and rollers ensure durability, while the double seal protects against contaminants.

With a basic load rating of 5.68 kN, RA6008CUU Bearing handles demanding conditions efficiently.
The press-fit shaft mount type simplifies installation, reducing setup time.

RA6008CUU Bearing operates in temperatures from 0 to 230°F, making it suitable for varied environments.
Its ABEC5 rating ensures consistent performance, with options for higher precision in ABEC7 or ABEC9.

The compact 8 mm width and 0.09 kg weight make RA6008CUU Bearing ideal for space-constrained applications.
Its design minimises maintenance needs, offering long-term reliability.

Application

Industrial Uses of RA6008CUU Bearing
RA6008CUU Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision. The double seal helps keep contaminants out, ensuring long service life in demanding environments.

Where Is RA6008CUU Bearing Used?
You’ll often find RA6008CUU Bearing in robotics, particularly in articulated arms that require smooth, precise movement. Its compact size and high load capacity make it ideal for space-constrained applications.

Built for Heavy-Duty Use: RA6008CUU Bearing
RA6008CUU Bearing handles combined loads effortlessly, making it a reliable choice for industrial automation systems. The steel construction ensures durability even under continuous operation.

Automotive vs Aerospace: Applications of RA6008CUU Bearing
In automotive systems, RA6008CUU Bearing supports steering mechanisms, while in aerospace, it’s used in control surfaces. Its ABEC5 rating guarantees consistent performance in both fields.

Perfect Fit for Automation: RA6008CUU Bearing
RA6008CUU Bearing shines in automated production lines, where its low friction and high accuracy are crucial. The press-fit design simplifies installation, reducing downtime during maintenance.
