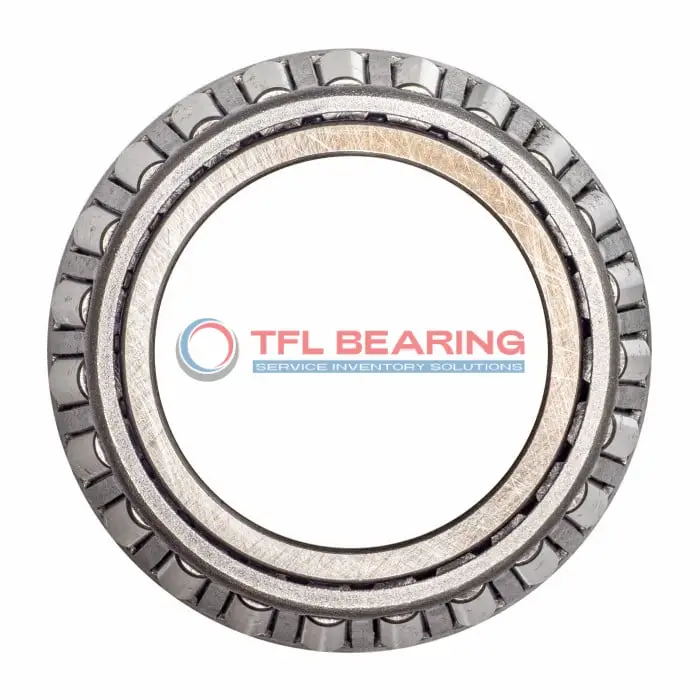

L848849 Single Cones (Imperial)

The L848849 is a single-row tapered roller bearing cone with a 9.999-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 80,800 lbf and static loads up to 161,000 lbf.

Its open design allows easy maintenance, while the steel cage ensures reliable performance. The cone has an effective center location of 1.26 inches and works in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or large machinery where combined loads are common.

Compliant with RoHS and REACH standards, it offers a standard radial clearance with options for C3, C4, or C5. The ABEC-1 rating ensures consistent performance for general industrial use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number L848849
Brand TFL
Interchangeable Brand Timken
System of Measurement Inch
Type Cones
Bearing Part Number L848849-L848810 , L848849-L848811 , L848849-L848812XX
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Series L848800
Bore Dia 9.999"
Bore Dia Tolerance +0.001" to 0
Cone Width 1.6339"
Cone Width Tolerance +0.003" to -0.01
Cone Backface ToClear Radius 0.06"
Cone Frontface Backing Diameter 10.47"
Cone Backface Backing Diameter 10.47"
Cage Cone Frontface Clearance 0.06"
Cage Cone Backface Clearance 0.1"
Effective Center Location 1.26"
Ring Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 80800 lbf
Static Radial Load 161000 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 21000 lbf
Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 141000 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 20000 lbf
Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 36500 lbf
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant

Features

Performance Features of L848849 Bearing

L848849 Bearing is built with chrome steel rings and a steel cage, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 80,800 lbf, making it suitable for heavy-duty applications.

The tapered roller design ensures smooth operation and efficient load distribution.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

L848849 Bearing’s standard radial clearance options provide flexibility for different applications.
The ABEC-1 rating ensures consistent performance for precision tasks.

Application

Where Is L848849 Bearing Used?
L848849 Bearing is commonly seen in heavy machinery, especially in construction equipment where combined loads are frequent. Its tapered roller design handles both radial and thrust forces efficiently.

In agricultural applications, L848849 Bearing supports tractors and harvesters, ensuring smooth operation in tough conditions. The chrome steel construction adds durability, making it suitable for long-term use.

For industrial gearboxes, L848849 Bearing provides reliable performance due to its high dynamic load capacity. The open seal type allows for easy lubrication, reducing maintenance downtime.

In mining equipment, L848849 Bearing’s robust design withstands extreme loads and harsh environments. Its inch sizing makes it compatible with a variety of machinery used in North American markets.
