TS (Single Row Tapered Roller Bearings) (Imperial) 535-534

TS (Single Row Tapered Roller Bearings) (Imperial) 535-534

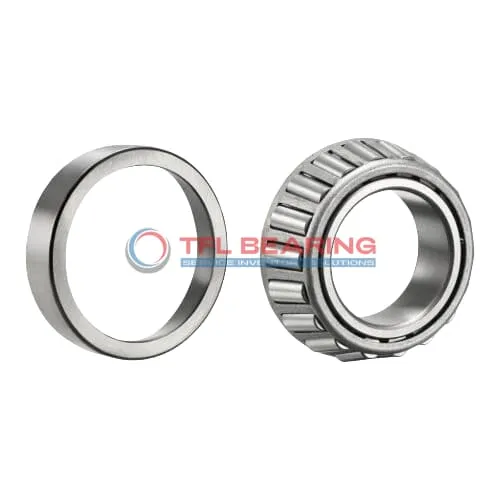

The 535-534 is a single row tapered roller bearing with a 1.75″ bore and 4.3307″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 38700 lbf radially and 5090 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 3.7 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for diverse environments.

The standard radial clearance can be adjusted to C3, C4, or C5 if needed. Its ABEC-1 rating ensures consistent performance for general precision requirements.

Perfect for scenarios requiring durability and ease of maintenance, such as conveyor systems or heavy-duty gearboxes. The tapered roller design provides excellent load distribution for long-lasting use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 535-534
  • Brand TFL
  • Interchangeable Timken
  • Size 1.75" x 4.3307" x 1.3437"
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.3307"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.455"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.3437"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.13"
  • Cone Backface Backing Diameter 2.36"
  • Cup Frontface Backing Diameter 3.96"
  • Cup Backface Backing Diameter 3.70"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 535
  • Cup Part Number 534
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 535
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 38700 lbf
  • Static Radial Load 46200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 10000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5090 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.7 lb

Features

Performance Features of 535-534 Bearing

535-534 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 38,700 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains roller alignment, reducing wear and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

How Does 535-534 Bearing Reduce Friction?

535-534 Bearing’s tapered roller design minimises friction, allowing smooth operation under combined loads.
The chrome steel construction ensures durability while maintaining efficient performance.
Its standard radial clearance options provide flexibility for different application needs.
With an ABEC-1 rating, it balances precision and cost-effectiveness.

Engineered for Precision: 535-534 Bearing

535-534 Bearing features precise cone and cup width tolerances for accurate alignment.
The effective centre location of -0.48″ ensures proper load distribution across the rollers.
Chrome steel components resist wear, maintaining performance over extended periods.
Available in standard radial clearance or optional C3/C4/C5 fits for specific requirements.

Steel vs Ceramic Bearings: Strengths of 535-534 Bearing

535-534 Bearing uses chrome steel for both rings and rollers, providing excellent strength-to-weight ratio.
This material choice offers good wear resistance while remaining cost-effective compared to ceramic options.
The steel cage design complements the rollers, ensuring stable operation at various speeds.
Weighing 3.7 lb, it maintains a practical balance between durability and manageable size.

Application

Industrial Uses of 535-534 Bearing
The 535-534 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in tough working conditions.

What Makes 535-534 Bearing a Preferred Choice?
In automotive applications, 535-534 Bearing fits well in wheel hubs and differentials, offering reliable performance under radial and thrust loads. The inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 535-534 Bearing
This bearing excels in industrial fans and pumps, where its open design allows for easy lubrication and maintenance. The steel cage adds strength, making it suitable for high-load scenarios.

Automotive vs Aerospace: Applications of 535-534 Bearing
While 535-534 Bearing is popular in truck axles and drivetrains, its precision also suits aerospace components like landing gear systems. The ABEC-1 rating ensures consistent performance across different industries.

Perfect Fit for Automation: 535-534 Bearing
In robotic arms and conveyor systems, 535-534 Bearing provides smooth rotation and load support. Its standard radial clearance options make it adaptable to various automation needs.
