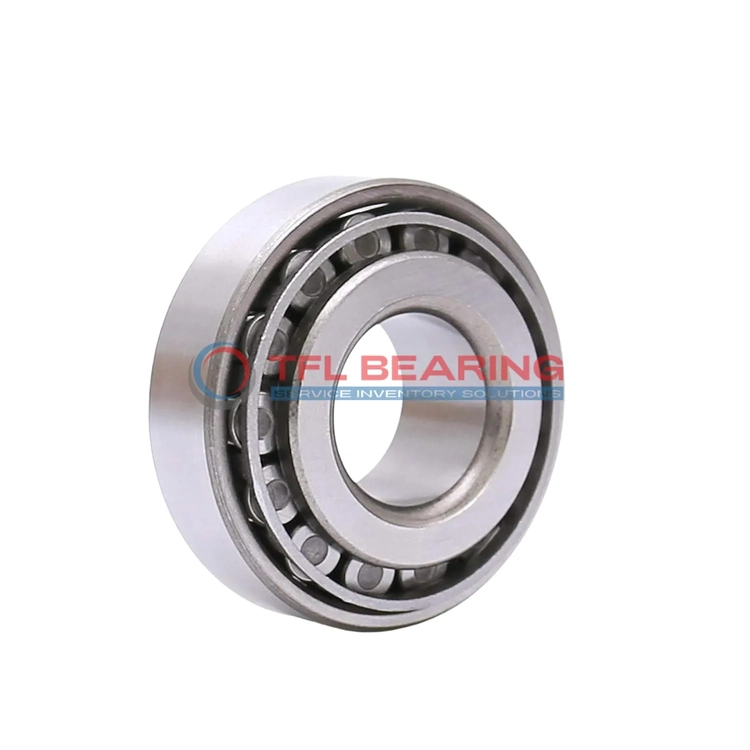

TS (Single Row Tapered Roller Bearings) (Imperial) 15120-15245

TS (Single Row Tapered Roller Bearings) (Imperial) 15120-15245

The 15120-15245 is a single-row tapered roller bearing with a 1.1895″ bore and 2.4409″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 13500 lbf radially and 2090 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for use in automotive or industrial machinery where combined loads are common.

Weighing just 0.600 lb, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 15120-15245
  • Brand TFL
  • Interchangeable Timken
  • Size 1.1895" x 2.4409" x 0.75"
  • Bore Dia 1.1895"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.4409"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.8125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.5625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.75"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 1.4"
  • Cone Backface Backing Diameter 1.42"
  • Cup Frontface Backing Diameter 2.30"
  • Cup Backface Backing Diameter 2.17"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.23"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 15120
  • Cup Part Number 15245
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 15000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 13500 lbf
  • Static Radial Load 12100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3490 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2090 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.600 lb

Features

How Is 15120-15245 Bearing Engineered for Reliability?

15120-15245 Bearing is constructed with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 13,500 lbf, ensuring dependable performance in various applications.

The steel cage maintains proper roller alignment, reducing friction and wear for extended service life.
With a temperature range of -30° to 110°C, it performs reliably in diverse operating conditions.

15120-15245 Bearing’s standard radial clearance options provide flexibility for different installation needs.
Its tapered roller design efficiently handles both radial and thrust loads, enhancing versatility.

Application

Common Applications of 15120-15245 Bearing
In industrial machinery, 15120-15245 Bearing handles combined loads effectively, making it suitable for gearboxes and heavy-duty conveyor systems. Its tapered roller design ensures reliable performance under varying stress conditions.

Where Is 15120-15245 Bearing Used?
You’ll often find 15120-15245 Bearing in automotive applications like wheel hubs and differentials, where its chrome steel construction offers durability. The imperial sizing makes it a convenient choice for North American vehicle models.

Built for Heavy-Duty Use: 15120-15245 Bearing
This bearing excels in construction equipment, supporting axial and radial loads in excavators and cranes. The open design allows for easy lubrication, extending its service life in tough environments.

Automotive vs Industrial: Applications of 15120-15245 Bearing
In cars, 15120-15245 Bearing ensures smooth operation in transmissions, while in factories, it supports machinery like pumps and compressors. Its versatility makes it a go-to for many engineers.

Perfect Fit for Automation: 15120-15245 Bearing
Robotic arms and assembly lines benefit from 15120-15245 Bearing’s precision and load capacity. The steel cage adds stability, making it ideal for repetitive motion tasks.
