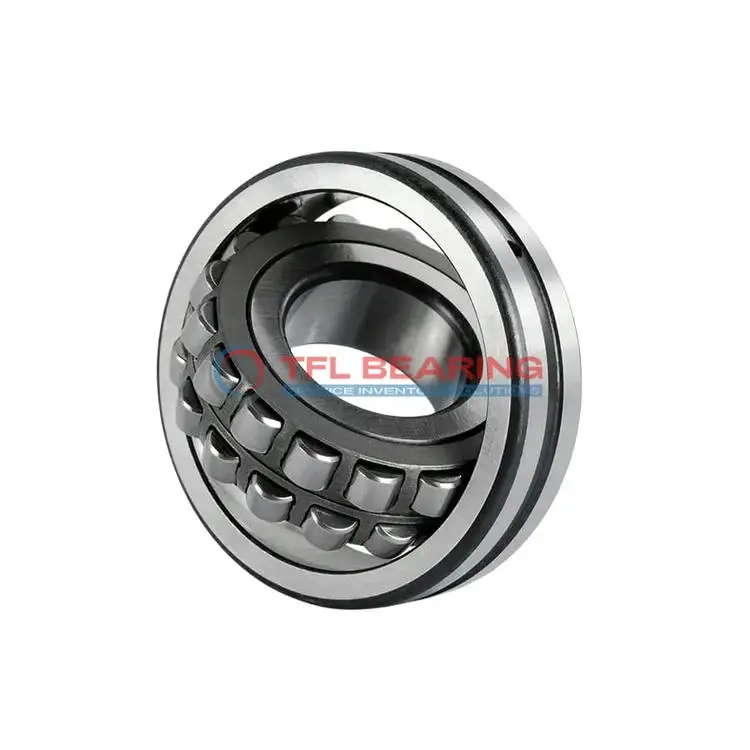

22314 CKJ W33 Double Row Spherical Roller Bearing

22314 CKJ W33 Double Row Spherical Roller Bearing

The 22314 CKJ W33 is a double-row spherical roller bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 92846 lbf and operates smoothly at speeds up to 4500 RPM.

Its open design and tapered bore ensure easy installation, while the steel cage enhances durability. The bearing includes lubrication grooves and holes for easy maintenance.

Suitable for heavy-duty applications like industrial gearboxes or mining equipment, it performs well in temperatures from -30°C to 200°C.

Weighing 4.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, interchangeable with SKF bearings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22314 CKJ W33
  • Brand TFL
  • Interchangeable SKF
  • Size 70 x 150 x 51 mm
  • Bore Dia 70 mm
  • Bore Dia Tolerance +0.03mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 51 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 90.3 mm
  • Shoulder/Recess Dia Of Outer Ring 128 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 92846 lbf
  • Static Radial Load 96668 lbf
  • Max Speed 4500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 4.3 kg
  • Price （US$） 77.76

Features

Performance Features of 22314 CKJ W33 Bearing

22314 CKJ W33 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 92,846 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 4,500 rpm, it maintains efficiency even under demanding conditions.

22314 CKJ W33 Bearing operates in temperatures from -30° to 200°C, suitable for various environments.
The steel cage keeps the rollers aligned, enhancing durability and extending service life.

The lubrication groove and holes ensure consistent oil distribution, reducing maintenance needs.
Its tapered bore design simplifies installation, saving time and effort during setup.

Application

Industrial Uses of 22314 CKJ W33 Bearing
22314 CKJ W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads effortlessly. The tapered bore ensures a secure fit, reducing slippage during intense operations.

In automotive applications, 22314 CKJ W33 Bearing supports drivetrain components, particularly in trucks and buses, where durability under combined loads is essential. Its chrome steel construction offers long-lasting performance even in demanding conditions.

For wind turbines, 22314 CKJ W33 Bearing’s spherical roller design accommodates misalignment, making it ideal for rotor shafts. The lubrication groove and hole simplify maintenance, extending service intervals in remote installations.

Automation systems benefit from 22314 CKJ W33 Bearing’s high-speed capability, ensuring smooth operation in robotic arms and conveyor belts. The steel cage provides added strength for continuous use in industrial settings.

In mining equipment, 22314 CKJ W33 Bearing withstands harsh environments, thanks to its robust construction and wide temperature range. The open seal design allows for easy relubrication, keeping downtime to a minimum.
