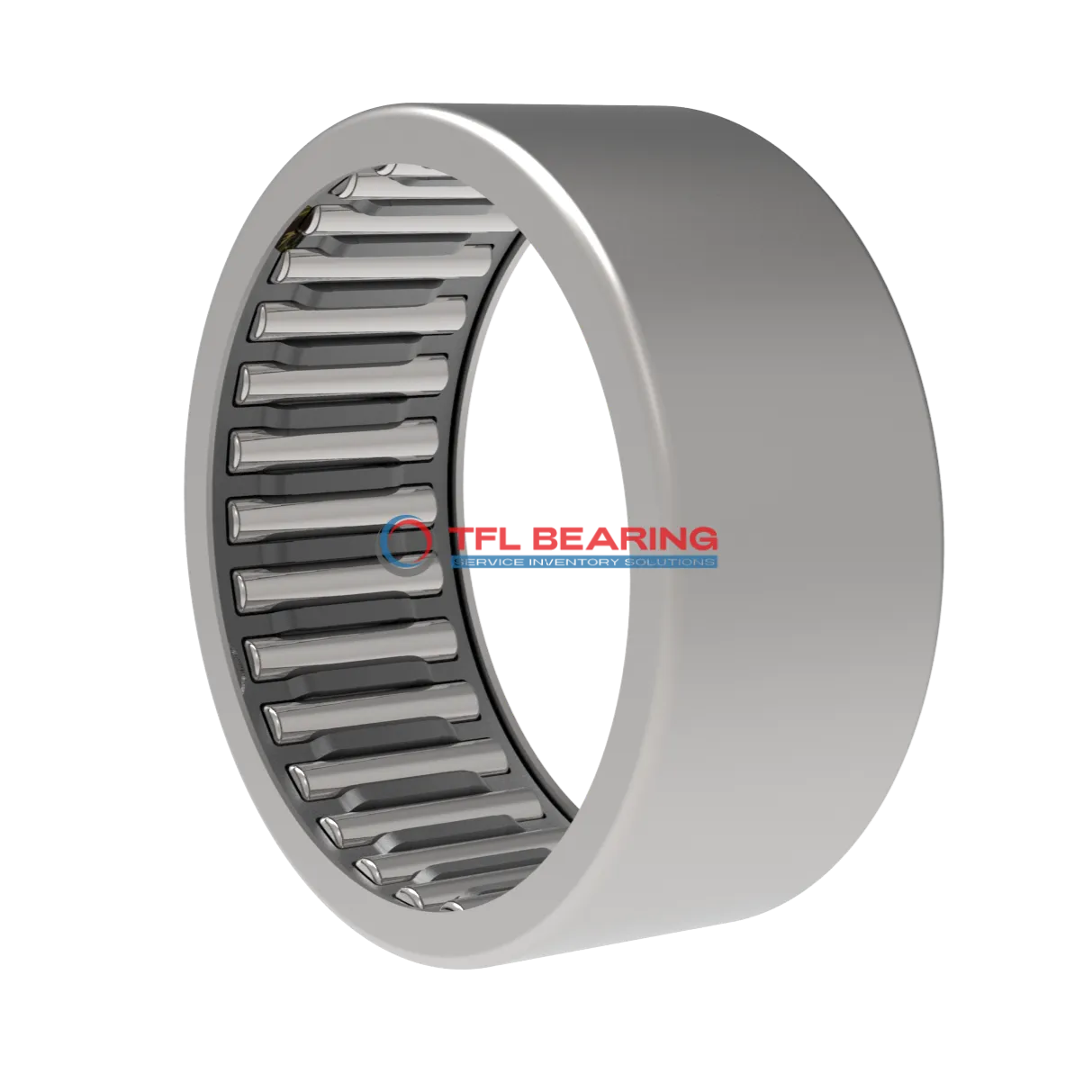

Drawn Cup Needle Roller Bearings SCH1616-PP

Drawn Cup Needle Roller Bearings SCH1616-PP

The SCH1616-PP is a drawn cup needle roller bearing with a 1-inch bore and 1.3125-inch outer diameter, made from sturdy steel. It handles radial loads up to 4496 lbf and spins smoothly at speeds up to 9500 RPM.
Its double-seal design keeps dirt out and lubrication in, making it low-maintenance. The press-fit shaft mount ensures a secure and stable installation.
This bearing is ideal for applications like automotive components or small machinery where space is tight. It works well in temperatures from -20°C to 110°C.
Compliant with RoHS standards, it’s a reliable choice for replacements, especially as it’s interchangeable with INA bearings. The compact 1-inch width fits neatly into confined spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCH1616-PP
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.3125"
  • Outer Dia Tolerance Not Rated
  • Width 1"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Double Seal
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 4496 lbf
  • Static Radial Load 6407 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 9500 rpm
  • Weight 43 g
Drawn Cup Needle Roller Bearings SCH1616-PP dimension drawing
Download DWG Download PDF

Features

How Does SCH1616-PP Bearing Reduce Friction?
SCH1616-PP Bearing features a double-sealed design, keeping contaminants out and lubrication in for smoother operation.
Its steel construction ensures durability while handling radial loads up to 4496 lbf.
The needle roller design minimises friction, making it ideal for high-speed applications up to 9,500 rpm.
With a press-fit shaft mount, SCH1616-PP Bearing offers secure installation and reliable performance.

Application

Industrial Uses of SCH1616-PP Bearing
SCH1616-PP Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The double seal helps keep contaminants out, extending service life in dusty environments.
Where Is SCH1616-PP Bearing Used?
You’ll often find SCH1616-PP Bearing in automotive steering systems, providing smooth rotation under heavy loads. Its press-fit mounting ensures a secure connection, even in high-vibration applications.
Built for Heavy-Duty Use: SCH1616-PP Bearing
SCH1616-PP Bearing works well in construction equipment like hydraulic pumps, handling radial loads with ease. The steel construction offers good durability, even in tough working conditions.
Automotive vs Industrial: Applications of SCH1616-PP Bearing
In automotive transmissions, SCH1616-PP Bearing supports smooth gear shifts, while in industrial conveyors, it handles continuous radial loads. Its inch sizing makes it versatile for various machinery types.
Perfect Fit for Automation: SCH1616-PP Bearing
SCH1616-PP Bearing is a reliable choice for robotic arms, where precision and load capacity matter. The double-sealed design keeps lubrication in and dirt out, ensuring consistent performance.
