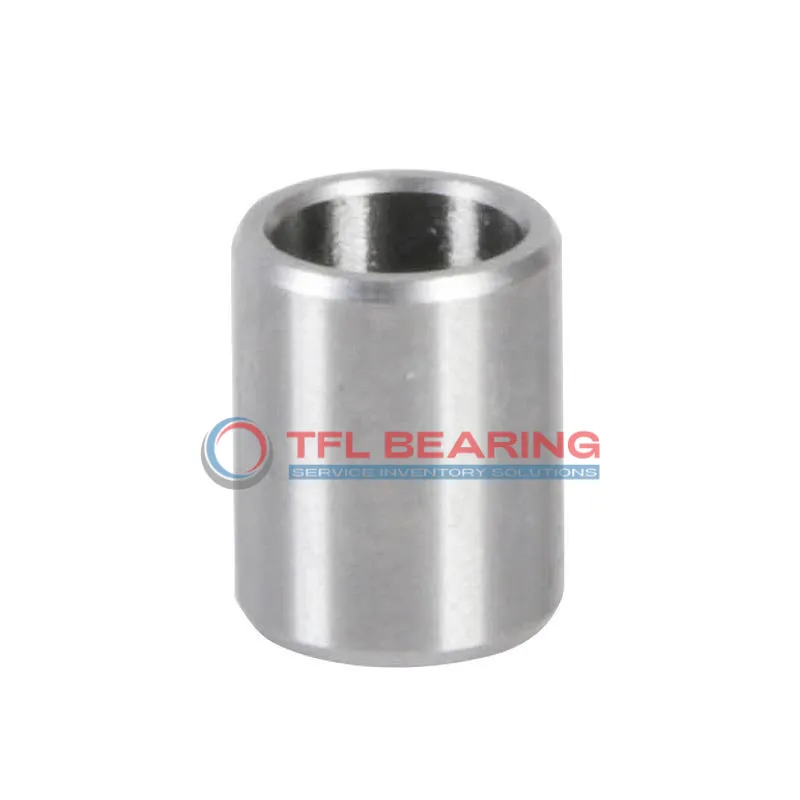

Inner Rings IR80X90X54-XL

Inner Rings IR80X90X54-XL

The IR80X90X54-XL is a needle roller bearing inner ring with an 80mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It’s pre-lubricated for smooth operation and weighs just 556g, making it easy to handle.
Designed for high load capacity, this ring fits seamlessly with INA bearings, offering a reliable replacement option. Its precise tolerances ensure a snug fit in demanding applications.
The compact design, with a width of 54mm, suits tight spaces while maintaining durability. The 1mm minimum corner radius helps prevent stress concentrations.
Ideal for gearboxes or industrial machinery, this RoHS-compliant ring is built to last in tough conditions. Its interchangeability simplifies maintenance and upgrades.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR80X90X54-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.017mm to -0.004mm
  • Width 54 mm
  • Width Tolerance -0.15mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 556 g
  • Rmin 1 mm
Inner Rings IR80X90X54-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR80X90X54-XL Bearing
IR80X90X54-XL Bearing is crafted from high-quality chrome steel, offering excellent durability and resistance to wear.
Its precise dimensions and tight tolerances ensure a perfect fit for demanding applications.
The needle roller design of IR80X90X54-XL Bearing provides high load capacity while maintaining a compact profile.
This makes it suitable for applications where space is limited but performance cannot be compromised.
With its pre-lubricated design, IR80X90X54-XL Bearing ensures smooth operation right from installation.
The chrome steel construction also helps in reducing friction, enhancing efficiency and longevity.
IR80X90X54-XL Bearing meets RoHS compliance, making it an environmentally friendly choice.
Its robust design and reliable performance make it a preferred option for various industrial applications.

Application

Essential Roles of IR80X90X54-XL Bearing
IR80X90X54-XL Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads in compact spaces. The chrome steel construction ensures durability even in demanding environments.
In automotive applications, IR80X90X54-XL Bearing supports transmission systems, providing smooth operation and reducing friction. Its precise metric sizing makes it a reliable fit for various vehicle models.
For automation equipment, IR80X90X54-XL Bearing excels in robotic arms and conveyor systems, thanks to its low-profile design and consistent performance. The lubricated feature helps maintain efficiency over long periods of use.
In medical devices, IR80X90X54-XL Bearing offers quiet and reliable performance for imaging equipment and lab instruments. Its high load capacity ensures stability in critical applications.
