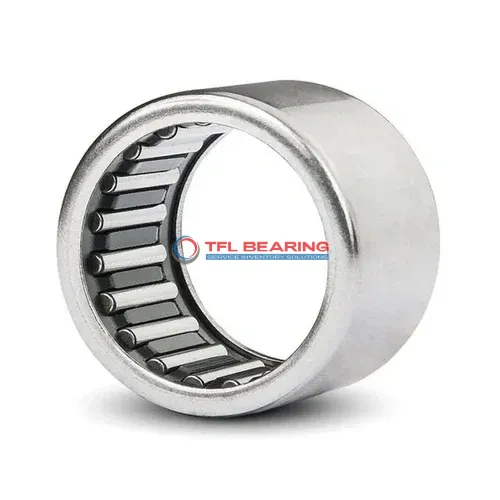

Drawn Cup Needle Roller Bearings SCE208

Drawn Cup Needle Roller Bearings SCE208

The SCE208 is a drawn cup needle roller bearing with a 1.25″ bore and 1.5″ outer diameter, made from sturdy steel. It handles radial loads up to 3012 lbf and can spin at speeds up to 8200 RPM.
Its open-end design allows for easy press-fit installation, while the steel cage ensures durability. The bearing requires regular lubrication for optimal performance.
This model works well in temperatures from -20°C to 110°C and is interchangeable with INA bearings. Ideal for applications like automotive components or small machinery where space is limited.
Compliant with RoHS standards, it’s a reliable choice for radial load scenarios. The compact width of 0.5″ makes it suitable for tight spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE208
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.25"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.5"
  • Outer Dia Tolerance Not Rated
  • Width 0.5"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 3012 lbf
  • Static Radial Load 4968 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 8200 rpm
  • Weight 22 g
Drawn Cup Needle Roller Bearings SCE208 dimension drawing
Download DWG Download PDF

Features

Why Choose SCE208 Bearing for Precision Tasks?
SCE208 Bearing features a steel construction, ensuring durability and resistance to wear in radial load applications.
Its dynamic radial load capacity of 3012 lbf makes it suitable for demanding industrial environments.
The press-fit shaft mount design simplifies installation, saving time and effort during assembly.
With a maximum speed of 8200 rpm, SCE208 Bearing balances performance and reliability.
Its open-end series design allows for easy lubrication, maintaining smooth operation over time.
The temperature range of -20 to 110 °C ensures consistent performance in various conditions.

Application

Industrial Uses of SCE208 Bearing
SCE208 Bearing is commonly used in industrial gearboxes and power transmission systems, where its compact design helps save space without sacrificing load capacity. The steel construction ensures durability even in demanding environments.
Where Is SCE208 Bearing Used?
You’ll often find SCE208 Bearing in automotive applications like steering systems and pumps, where its radial load handling keeps components running smoothly. The press-fit mounting makes installation straightforward for mechanics.
Built for Heavy-Duty Use: SCE208 Bearing
SCE208 Bearing works well in construction equipment, such as hydraulic cylinders, thanks to its high dynamic load rating. Its open-end design allows for easy lubrication, extending service life.
Automotive vs Industrial: Applications of SCE208 Bearing
In vehicles, SCE208 Bearing supports drivetrain components, while in industrial settings, it’s ideal for conveyor rollers. The inch sizing makes it versatile for various machinery standards.
Perfect Fit for Automation: SCE208 Bearing
SCE208 Bearing is a reliable choice for robotic arms and assembly line equipment, where precision and low friction matter. Its steel cage ensures consistent performance over time.
