TS (Single Row Tapered Roller Bearings) (Imperial) 365-S-362X

TS (Single Row Tapered Roller Bearings) (Imperial) 365-S-362X

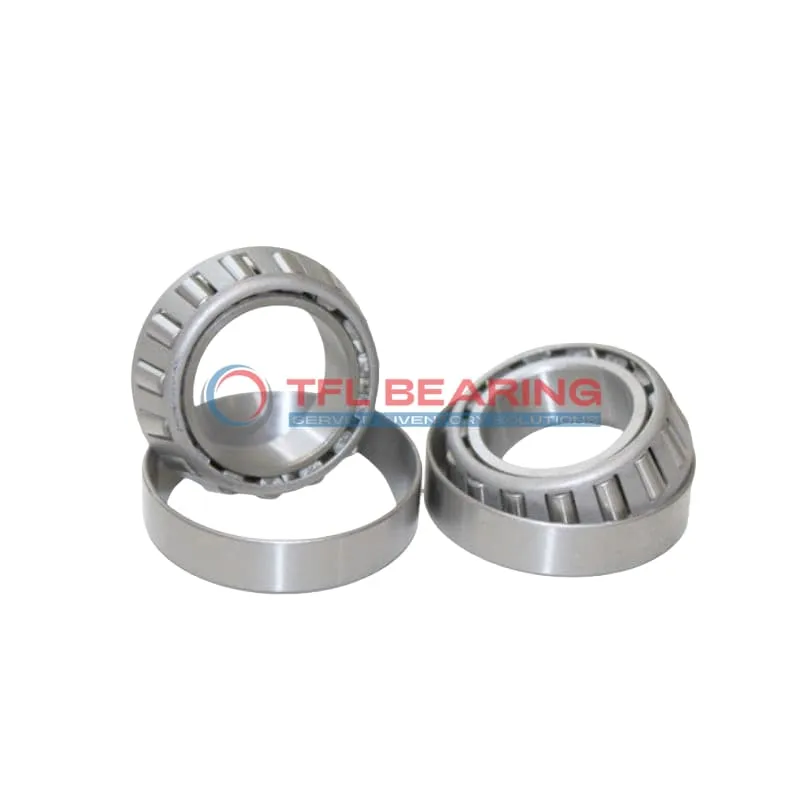

The 365-S-362X is a single-row tapered roller bearing with a 1.9375″ bore and 3.5433″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 22900 lbf radially and 3250 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in gearboxes, wheel hubs, or industrial machinery where combined loads are common.

Weighing 1.400 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 365-S-362X
  • Brand TFL
  • Interchangeable Timken
  • Size 1.9375" x 3.5433" x 0.9843"
  • Bore Dia 1.9375"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.5433"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.7874"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9843"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 2.13"
  • Cone Backface Backing Diameter 2.17"
  • Cup Frontface Backing Diameter 3.34"
  • Cup Backface Backing Diameter 3.15"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 365-S
  • Cup Part Number 362X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 365
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22900 lbf
  • Static Radial Load 21500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5930 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3250 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.400 lb

Features

How Does 365-S-362X Bearing Handle Combined Loads?

365-S-362X Bearing is crafted with chrome steel rings and rollers, offering robust performance under combined radial and thrust loads.
Its dynamic radial load capacity reaches 22,900 lbf, ensuring reliable operation in demanding conditions.
The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

Application

Industrial Uses of 365-S-362X Bearing
365-S-362X Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

In automotive applications, 365-S-362X Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a straightforward replacement for many North American vehicle models.

For industrial conveyor systems, 365-S-362X Bearing’s open design allows for easy lubrication, extending service life in high-load scenarios. The steel cage adds extra strength, making it suitable for continuous operation.

What Makes 365-S-362X Bearing a Preferred Choice?
365-S-362X Bearing works efficiently in mining equipment, where its ability to handle radial and thrust loads is crucial. The standard radial clearance offers flexibility for different installation requirements.

In power transmission systems, 365-S-362X Bearing supports smooth operation of gears and shafts. Its ABEC-1 rating ensures consistent performance without unnecessary precision costs.

Built for Heavy-Duty Use: 365-S-362X Bearing
365-S-362X Bearing is ideal for forestry machinery, where its robust design withstands shock loads and harsh environments. The tapered rollers distribute stress evenly, reducing wear over time.

For railway applications, 365-S-362X Bearing provides reliable performance in axle boxes. Its temperature range suits both cold and moderately hot climates, ensuring versatility.

Automotive vs Aerospace: Applications of 365-S-362X Bearing
In automotive settings, 365-S-362X Bearing is often found in truck transmissions, balancing durability and cost-effectiveness. The inch measurements align with many US-made components.

For aerospace ground support equipment, 365-S-362X Bearing handles moderate loads without adding excessive weight. Its compliance with RoHS and REACH standards makes it environmentally friendly.
