Drawn Cup Needle Roller Bearings SCE78

Brand: TFL Bearing Interchangeable: INA SCE78 0.4375" × 0.625" × 0.5" Inch Open
Part number: SCE78
Drawn Cup Needle Roller Bearings SCE78
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia0.4375"
Bore Dia ToleranceRefer to note on the right drawing
Outer Dia0.625"
Outer Dia ToleranceNot Rated
Width0.5"
Width Tolerance-0.01" to 0"
Performance
Dynamic Radial Load1,439 lbf
Static Radial Load1,754 lbf
Temperature Range-20 to 110 °C
Max Speed21,900 rpm
Characteristics
System of MeasurementInch
Bearing TypeRoller
Roller Bearing TypeNeedle
For Load DirectionRadial
ConstructionSingle Row
Seal TypeOpen
SeriesOpen End
LubricationRequired
Shaft Mount TypePress Fit
Weight7 g
Material
Ring MaterialSteel
Ball MaterialSteel
Cage MaterialSteel
Compliance
RoHSCompliant
Dimension drawing · click to enlarge

Description

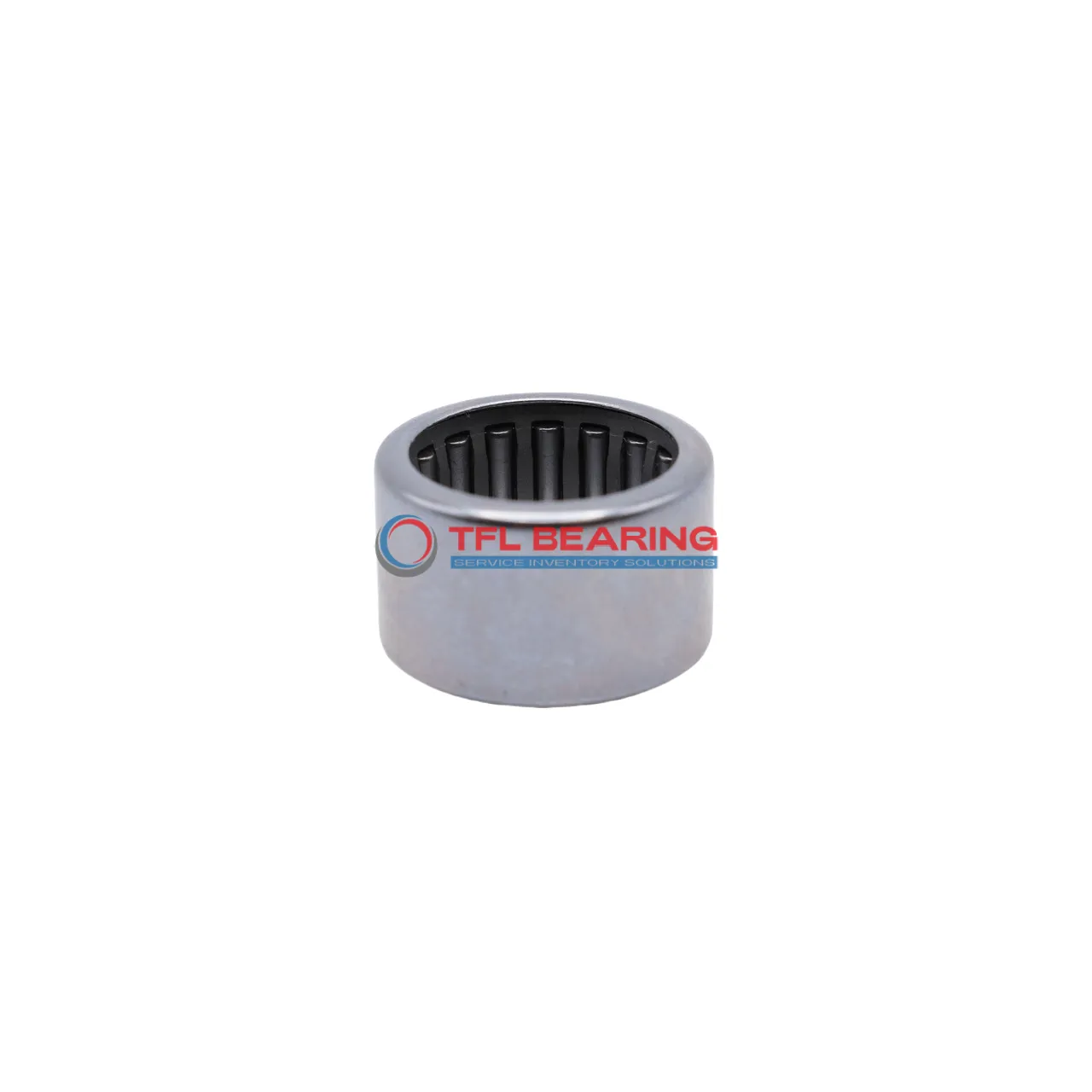

The SCE78 is a drawn cup needle roller bearing with a 0.4375″ bore and 0.625″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 1439 lbf and can spin at speeds up to 21900 RPM.
Its open-end design and press-fit mounting make it easy to install in tight spaces. The steel cage ensures durability, while the needle rollers provide smooth operation under load.
This bearing requires regular lubrication to maintain optimal performance. It works well in temperatures ranging from -20°C to 110°C, making it suitable for various environments.
Ideal for applications like automotive components or small machinery where space is limited. Compliant with RoHS standards, it’s a practical choice for replacements, especially as it’s interchangeable with INA bearings.
Weighing just a few grams, it’s lightweight yet robust for its compact size. Perfect for high-speed radial load scenarios.

Features

Why Choose SCE78 Bearing for Precision Tasks?
SCE78 Bearing features a steel construction, ensuring strength and durability for radial load applications.
Its dynamic radial load capacity of 1439 lbf makes it suitable for high-performance machinery.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a maximum speed of 21,900 rpm, SCE78 Bearing delivers reliable performance in demanding conditions.
The open-end series design allows for easy lubrication, maintaining smooth operation.
Its temperature range of -20 to 110°C ensures versatility in various environments.

Application

Industrial Uses of SCE78 Bearing
SCE78 Bearing is commonly used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor systems and printing presses. Its steel construction ensures durability even in demanding environments.
Where Is SCE78 Bearing Used?
You’ll often find SCE78 Bearing in automotive applications, such as gearboxes and steering systems, where its press-fit design provides a secure and stable fit. The high-speed capability makes it suitable for performance-driven components.
Built for Heavy-Duty Use: SCE78 Bearing
In robotics and automation, SCE78 Bearing excels in mechanical arms and linear guides due to its precise needle roller design. The open-end series allows for easy lubrication, extending its service life.
Medical vs Industrial: Where SCE78 Bearing Excels
While SCE78 Bearing is robust enough for industrial tools like compressors, its precision also suits medical devices like lab equipment. The inch sizing makes it versatile for various regional standards.
Perfect Fit for Automation: SCE78 Bearing
For home appliances like electric drills, SCE78 Bearing offers smooth operation thanks to its high rpm rating. The steel cage ensures reliability even with frequent use.
