Drawn Cup Needle Roller Bearings SCE1210

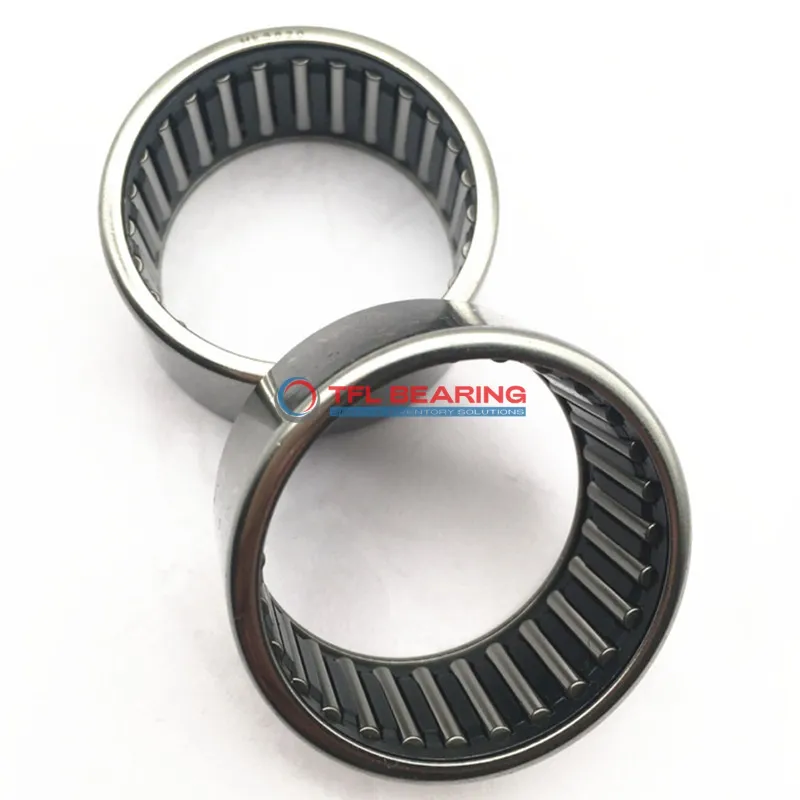

Drawn Cup Needle Roller Bearings SCE1210

The SCE1210 is a drawn cup needle roller bearing with a 0.75″ bore and 1″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 2878 lbf and spins smoothly at speeds up to 13100 RPM.
Its open-end design and press-fit mounting make installation straightforward, while the steel cage ensures durability. The bearing operates well in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like automotive components or small machinery where space is limited.
Regular lubrication is recommended to maintain its performance. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE1210
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.75"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1"
  • Outer Dia Tolerance Not Rated
  • Width 0.625"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 2878 lbf
  • Static Radial Load 3934 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 13100 rpm
  • Weight 18 g
Drawn Cup Needle Roller Bearings SCE1210 dimension drawing
Download DWG Download PDF

Features

How Does SCE1210 Bearing Handle Radial Loads?
SCE1210 Bearing is crafted with steel rings and needles, offering robust resistance to radial loads.
Its dynamic radial load capacity reaches 2878 lbf, ensuring steady performance in high-speed applications.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a maximum speed of 13,100 rpm, it delivers reliable operation in demanding conditions.

Application

Common Applications of SCE1210 Bearing
SCE1210 Bearing is widely used in industrial equipment like conveyor systems and printing presses, where its compact design handles high radial loads efficiently. The open-end construction simplifies installation in tight spaces.
In automotive applications, SCE1210 Bearing fits well in gearboxes and steering systems, offering reliable performance under constant motion. Its press-fit mounting ensures stability even during high-speed rotations.
For automation projects, SCE1210 Bearing works smoothly in robotic arms and linear guides, thanks to its low-profile needle rollers. The steel construction provides durability for repetitive movements.
Around the home, SCE1210 Bearing can be found in power tools and appliances, where its inch sizing suits smaller mechanisms. Regular lubrication keeps it running quietly for years.
