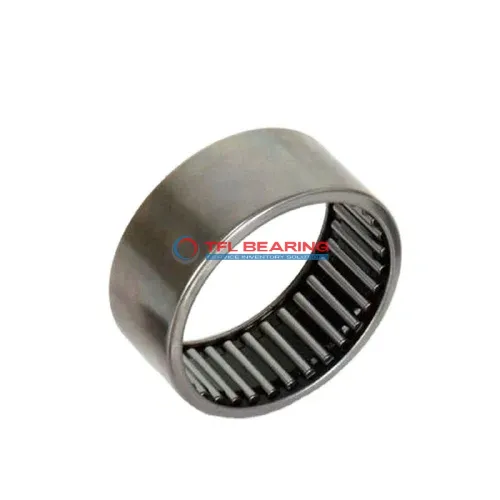

Drawn Cup Needle Roller Bearings SCE3612

Drawn Cup Needle Roller Bearings SCE3612

The SCE3612 is a drawn cup needle roller bearing with a 2.25″ bore and 2.625″ outer diameter, made from sturdy steel. It handles radial loads up to 8318 lbf and operates smoothly at speeds up to 4600 RPM.
Its open-end design allows for easy lubrication, while the press-fit mounting ensures a secure attachment to shafts. The bearing performs well in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like automotive components or industrial machinery where radial loads are common.
Compliant with RoHS standards, it’s a reliable and safe option for various engineering needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE3612
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 2.25"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 2.625"
  • Outer Dia Tolerance Not Rated
  • Width 0.75"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 8318 lbf
  • Static Radial Load 16186 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 4600 rpm
  • Weight 89 g
Drawn Cup Needle Roller Bearings SCE3612 dimension drawing
Download DWG Download PDF

Features

How Does SCE3612 Bearing Handle Heavy Loads?
SCE3612 Bearing is built with steel rings and rollers, offering strong resistance to heavy radial loads.
Its dynamic radial load capacity reaches 8318 lbf, ensuring reliable performance in demanding applications.
The steel cage maintains roller alignment, reducing wear and extending service life.
With a maximum speed of 4600 rpm, it balances durability and efficiency.
SCE3612 Bearing operates effectively in temperatures ranging from -20 to 110 °C.
Its press-fit shaft mount type ensures secure installation and stable operation.
The open-end design of SCE3612 Bearing simplifies maintenance and lubrication.
This makes it a practical choice for various industrial applications.

Application

Industrial Uses of SCE3612 Bearing
SCE3612 Bearing works well in conveyor systems, where its radial load capacity handles constant movement smoothly. The open design simplifies lubrication, keeping maintenance straightforward.
In automotive gearboxes, SCE3612 Bearing’s press-fit mounting ensures a secure hold under high RPMs. Its steel construction offers durability for long-term use in demanding conditions.
For robotics, SCE3612 Bearing provides reliable support in joint assemblies, thanks to its compact inch sizing. The needle roller design balances space efficiency with performance.
Where Is SCE3612 Bearing Used?
You’ll often spot SCE3612 Bearing in industrial fans, where its radial load handling keeps operations quiet and efficient. The steel cage adds resilience against wear over time.
In printing machinery, SCE3612 Bearing’s precision supports smooth paper feed mechanisms. Its open-end series allows easy integration into existing systems.
Built for Heavy-Duty Use: SCE3612 Bearing
SCE3612 Bearing shines in construction equipment, handling radial loads in compact spaces. The press-fit design prevents slippage even under intense vibrations.
For agricultural machinery, SCE3612 Bearing’s steel rollers withstand dusty environments. Its inch measurements make it compatible with older equipment models.
