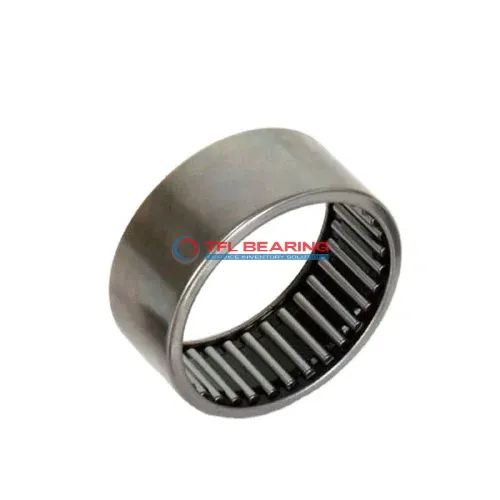

Drawn Cup Needle Roller Bearings SCE3616

Brand: TFL Bearing Interchangeable: INA SCE3616 2.25" × 2.625" × 1" Inch Open
Part number: SCE3616
Drawn Cup Needle Roller Bearings SCE3616
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia2.25"
Bore Dia ToleranceRefer to note on the right drawing
Outer Dia2.625"
Outer Dia ToleranceNot Rated
Width1"
Width Tolerance-0.01" to 0"
Performance
Dynamic Radial Load1,124 lbf
Static Radial Load24,055 lbf
Temperature Range-20 to 110 °C
Max Speed4,600 rpm
Characteristics
System of MeasurementInch
Bearing TypeRoller
Roller Bearing TypeNeedle
For Load DirectionRadial
ConstructionSingle Row
Seal TypeOpen
SeriesOpen End
LubricationRequired
Shaft Mount TypePress Fit
Weight120 g
Material
Ring MaterialSteel
Ball MaterialSteel
Cage MaterialSteel
Compliance
RoHSCompliant
Dimension drawing · click to enlarge

Description

The SCE3616 is a drawn cup needle roller bearing with a 2.25″ bore and 2.625″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 1124 lbf and operates smoothly at speeds up to 4600 RPM.
Its open-end design and press-fit mounting make installation straightforward, while the single-row construction ensures compactness. The bearing requires regular lubrication for optimal performance.
This model is interchangeable with INA bearings, offering a practical replacement option. It works well in temperatures ranging from -20°C to 110°C, making it suitable for various industrial applications.
Ideal for machinery with radial load demands, such as automotive components or conveyor systems. Compliant with RoHS standards, it’s a safe and durable choice for your needs.

Features

How Does SCE3616 Bearing Handle Heavy Loads?
SCE3616 Bearing is built with steel rings and rollers, offering strong resistance to heavy radial loads.
Its static radial load capacity reaches 24055 lbf, ensuring reliable performance in demanding applications.
The open-end design simplifies installation, saving time and effort during assembly.
With a maximum speed of 4600 rpm, it balances durability and efficiency for various uses.
SCE3616 Bearing works well in temperatures from -20 to 110°C, making it suitable for diverse environments.
Regular lubrication ensures smooth operation and extends the bearing’s service life.

Application

Industrial Uses of SCE3616 Bearing
SCE3616 Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
In automotive applications, SCE3616 Bearing fits well in transmission systems, providing smooth operation under high radial loads. Its press-fit mounting simplifies installation, saving time during assembly.
For automation equipment, SCE3616 Bearing’s needle roller design offers precise movement in robotic arms and conveyor systems. The open-end series allows for easy lubrication, extending service life.
Where Is SCE3616 Bearing Used?
You’ll often find SCE3616 Bearing in agricultural machinery, where its robust design handles heavy radial loads effortlessly. The inch sizing makes it compatible with many North American equipment standards.
In household appliances like washing machines, SCE3616 Bearing ensures quiet and efficient operation. Its steel cage and rollers provide reliable performance over long periods.
Built for Heavy-Duty Use: SCE3616 Bearing
SCE3616 Bearing excels in construction equipment, where its high static radial load capacity supports heavy machinery components. The open seal type allows for easy maintenance in dusty conditions.
For printing presses, SCE3616 Bearing’s precision rollers ensure smooth paper feed and consistent print quality. Its temperature range suits both indoor and outdoor applications.
Automotive vs Aerospace: Applications of SCE3616 Bearing
In automotive steering systems, SCE3616 Bearing provides reliable performance under constant radial loads. Its press-fit design ensures a secure fit without additional fasteners.
For aerospace applications, SCE3616 Bearing’s lightweight yet sturdy construction makes it suitable for auxiliary equipment. The steel materials meet industry standards for safety and reliability.
