42362-42587DC TDO (Two-Row Double-Outer Race) (Imperial)

42362-42587DC TDO (Two-Row Double-Outer Race) (Imperial)

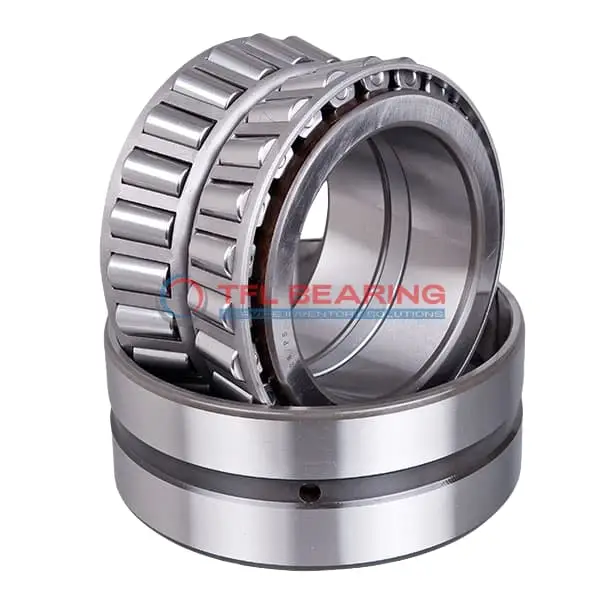

The 42362-42587DC is a double-row tapered roller bearing with a 3.625″ bore and 5.875″ outer diameter, built from sturdy chrome steel for long-lasting performance. It handles combined loads up to 63,800 lbf and is designed for smooth operation in demanding conditions.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing works well in temperatures from -30°C to 110°C, making it versatile for various environments.

This model features a standard radial clearance and is ABEC-1 rated for reliable precision. Ideal for industrial machinery or heavy equipment where combined loads are common.

Weighing 9.02 lb, it’s a robust choice for applications requiring strength and stability. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 42362-42587DC
  • Brand TFL
  • Size 3.625" x 5.875" x 1.1406"
  • Bore Dia 3.625"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 5.875"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.0625"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.1406"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 2.6248"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.03"
  • Cone Backface Backing Diameter 4.21"
  • Cup Frontface Backing Diameter 5.64"
  • Cage Cone Backface Clearance 0.1"
  • Dynamic Radial Load 63800 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 42362
  • Cup Part Number 42587DC
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 42000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 9490 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 8000 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 16500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 9.02 lb

Features

How Is 42362-42587DC Bearing Engineered for Reliability?

42362-42587DC Bearing features a double-row tapered roller design, providing robust support for combined radial and thrust loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 63,800 lbf.

The precision tolerances of 42362-42587DC Bearing enhance performance, maintaining stability under heavy loads.
Its open design allows for easy lubrication, ensuring smooth operation over extended periods.

42362-42587DC Bearing operates efficiently within a temperature range of -30° to 110°C, suitable for varied environments.
The steel cage keeps rollers aligned, reducing wear and extending service life.

Application

Industrial Uses of 42362-42587DC Bearing
You’ll often spot 42362-42587DC Bearing in heavy machinery like construction equipment, where its double-row design handles both radial and thrust loads effortlessly. The chrome steel construction ensures it stands up to tough conditions without wearing out quickly.

Where Is 42362-42587DC Bearing Used?
In automotive applications, 42362-42587DC Bearing works well in wheel hubs and differential systems, thanks to its combined load capacity. The inch sizing makes it a go-to choice for American-made vehicles and machinery.

Built for Heavy-Duty Use: 42362-42587DC Bearing
For industrial conveyors and mining equipment, 42362-42587DC Bearing offers reliable performance even under constant stress. Its open design allows for easy lubrication, keeping operations smooth over long periods.

Automotive vs Aerospace: Applications of 42362-42587DC Bearing
While 42362-42587DC Bearing excels in truck axles and heavy vehicles, its precision also suits aerospace landing gear components. The tapered roller design ensures stability under varying load conditions.

Essential Roles of 42362-42587DC Bearing
In agricultural machinery, 42362-42587DC Bearing supports pivot points and drivetrains, where durability is key. The standard radial clearance makes it adaptable to different operational demands.
