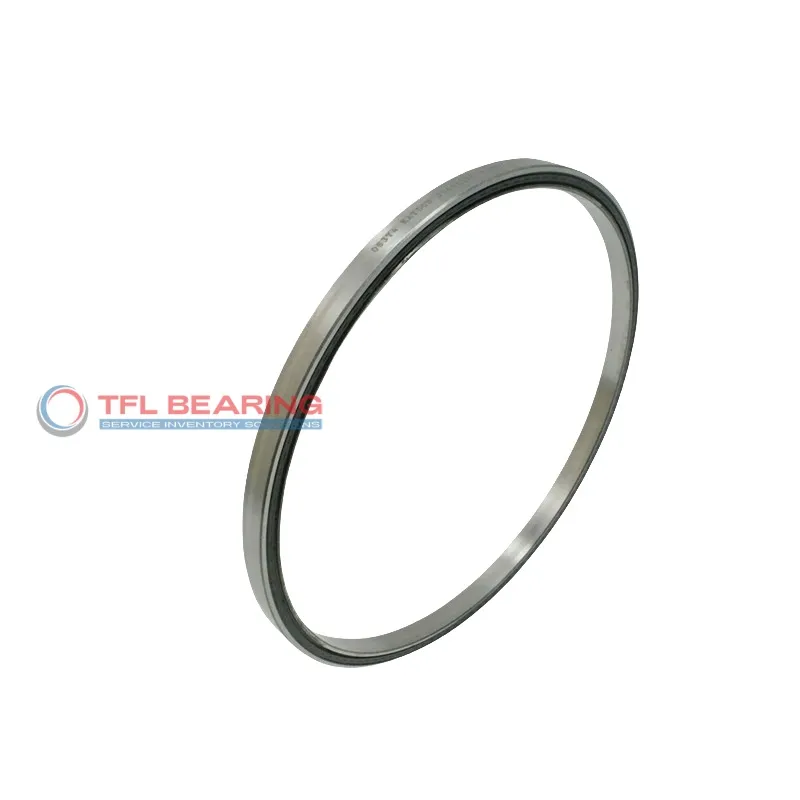

Constant Section (CS) Bearings J05008CP0

Constant Section (CS) Bearings J05008CP0

The J05008CP0 is a slim, sealed ball bearing with a 50mm bore and 66mm outer diameter, crafted from durable chrome steel. Its compact 8mm width makes it ideal for space-sensitive applications.

Designed for radial loads up to 772 lbf, this bearing offers smooth rotation with minimal friction. The brass cage ensures quiet operation and long service life.

Sealed on both sides, it keeps contaminants out while retaining lubrication. This makes maintenance hassle-free in dusty or wet environments.

Perfect for robotics or medical equipment where slim profiles are needed. It’s interchangeable with KAYDON bearings and weighs just 0.08kg for easy handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number J05008CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 66 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 8 mm
  • Width Tolerance +.000 –.127mm
  • Thin Section Bearings Type Reali-Slim mm Metric Bearings
  • Series 8 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 56.55 mm
  • Internal Diameter On Outer Ring (Small Side Face) 59.42 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 772 lbf
  • Static Radial Load 1226 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1394 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.08 Kg
  • price（$） 56.69
Constant Section (CS) Bearings J05008CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of J05008CP0 Bearing

J05008CP0 Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 772 lbf, ensuring reliable performance in various applications.
The brass cage maintains ball alignment, reducing friction and extending operational life.
With a sealed design, it provides protection against dust and contaminants.

How Is J05008CP0 Bearing Engineered for Reliability?

J05008CP0 Bearing features a single-row construction, optimised for radial load handling.
The ABEC-1 tolerance class ensures consistent performance in precision applications.
Its chrome steel components resist wear, enhancing durability under load.
The lubricated design reduces maintenance needs, making it cost-effective.

Built for Durability: J05008CP0 Bearing

J05008CP0 Bearing’s thin-section design saves space without compromising strength.
It operates smoothly within a temperature range of -30°C to 110°C, suitable for diverse environments.
The sealed construction keeps lubrication in and contaminants out.
With a static radial load capacity of 1226 lbf, it handles demanding conditions reliably.

Steel vs Ceramic Bearings: Strengths of J05008CP0 Bearing

J05008CP0 Bearing uses chrome steel for both rings and balls, balancing cost and performance.
Its brass cage ensures smooth operation and reduces noise in radial applications.
The bearing’s ISO radial rating of 1394 lbf highlights its robust load capacity.
Sealed against contaminants, it maintains performance in challenging environments.

Application

Key Fields for J05008CP0 Bearing
J05008CP0 Bearing is commonly used in automation systems, particularly in robotic arms where its slim design saves space without compromising performance. The sealed construction keeps out contaminants, ensuring smooth operation in dusty environments.

In medical imaging devices, J05008CP0 Bearing provides reliable radial load support due to its chrome steel rings and brass cage. Its precise tolerances make it ideal for equipment requiring consistent, low-friction movement.

For consumer electronics like printers, J05008CP0 Bearing’s compact size and sealed design help maintain quiet operation. The metric dimensions ensure easy integration with various European and Asian-manufactured components.

Industrial machinery benefits from J05008CP0 Bearing’s ability to handle moderate radial loads in tight spaces. Its ABEC-1 tolerance class offers a good balance of precision and cost-effectiveness for general applications.
