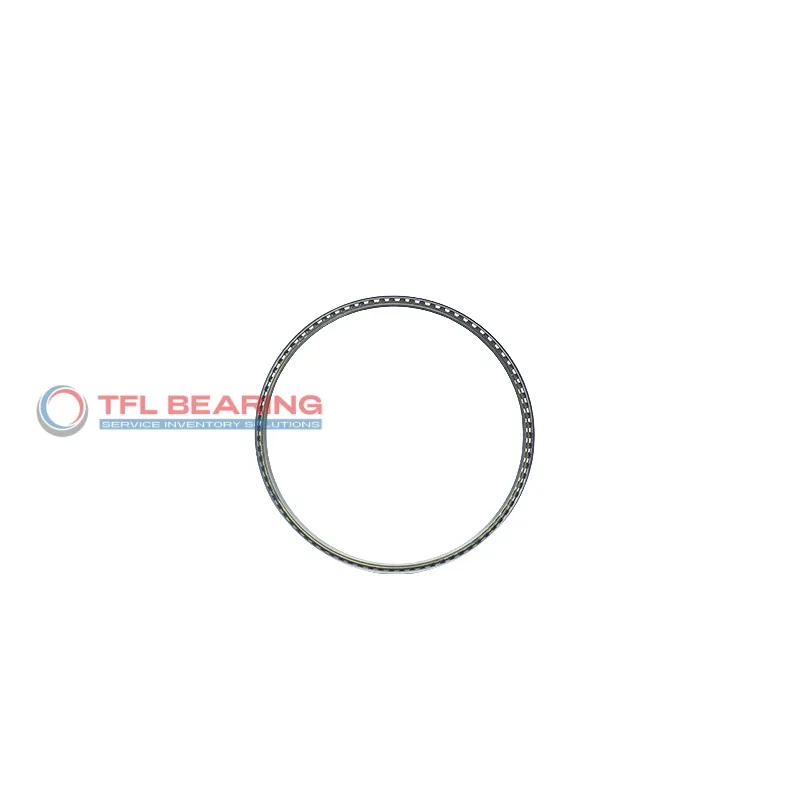

Constant Section (CS) Bearings K02508XP0

Brand: TFL Bearing Interchangeable: KAYDON K02508XP0 25 mm × 41 mm × 8 mm Metric Open
Part number: K02508XP0
Constant Section (CS) Bearings K02508XP0
In Stock
US$45.41 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia25 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia41 mm
Outer Dia Tolerance-0.01mm to 0
Width8 mm
Width Tolerance+.000 –.127mm
External Diameter On Inner Ring30.9 mm
Internal Diameter On Outer Ring (Small Side Face)35.1 mm
Performance
Dynamic Radial Load730 lbf
Static Radial Load736 lbf
Static Thrust Load1,671 lbf
Temperature Range-30°C to 110 °C
Moment Load Rating40 lbf
Dynamic Thrust Load1,034 lbf
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionFour Point Contact
ConstructionSingle Row
Seal TypeOpen
Thin Section Bearings TypeReali-Slim mm Metric Bearings
Series8 mm
Tolerance ClassABEC-1
Radial Clearance0.0000 – 0.0005"
Static Moment11 lbf
LubricationLubricated
Weight0.06 Kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
Dimension drawing · click to enlarge

Description

The K02508XP0 is a slim metric ball bearing measuring 25mm by 41mm by 8mm, crafted from durable chrome steel with a brass cage. It handles radial loads up to 730 lbf and thrust loads up to 1034 lbf, making it versatile for various applications.

Its open design and ABEC-1 tolerance ensure smooth operation, while the thin section construction saves space in compact setups. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with KAYDON bearings, offering a practical replacement option. Ideal for robotics or precision machinery where space and load capacity are key considerations.

Weighing just 0.06kg, it’s lightweight yet sturdy. Compliant with RoHS standards for safe use.

Features

How Is K02508XP0 Bearing Engineered for Reliability?

K02508XP0 Bearing features a four-point contact design, ensuring stable performance under varying loads.
Its chrome steel construction provides durability and resistance to wear in demanding conditions.

The brass cage maintains proper ball alignment, reducing friction and extending operational life.
With a dynamic radial load capacity of 730 lbf, it handles both radial and thrust loads effectively.

K02508XP0 Bearing operates smoothly within a temperature range of -30°C to 110°C.
Its compact 8 mm width makes it suitable for applications where space is limited.

Application

Industrial Uses of K02508XP0 Bearing
K02508XP0 Bearing is commonly used in machine tools, where its thin section design saves space without compromising load capacity. The brass cage ensures smooth rotation, even in high-speed applications.

Where Is K02508XP0 Bearing Used?
You’ll often find K02508XP0 Bearing in robotics, particularly in compact joints requiring precise movement. Its four-point contact design handles both radial and thrust loads efficiently.

Built for Heavy-Duty Use: K02508XP0 Bearing
K02508XP0 Bearing works well in conveyor systems, thanks to its chrome steel construction. The ABEC-1 tolerance makes it reliable for consistent performance in industrial settings.

Automotive vs Aerospace: Applications of K02508XP0 Bearing
In automotive steering systems, K02508XP0 Bearing provides smooth operation under varying loads. For aerospace, its lightweight design is ideal for instrumentation and control mechanisms.

Perfect Fit for Automation: K02508XP0 Bearing
K02508XP0 Bearing is a go-to choice for 3D printers, where precision and low friction matter. The metric sizing ensures compatibility with most European and Asian automation equipment.
