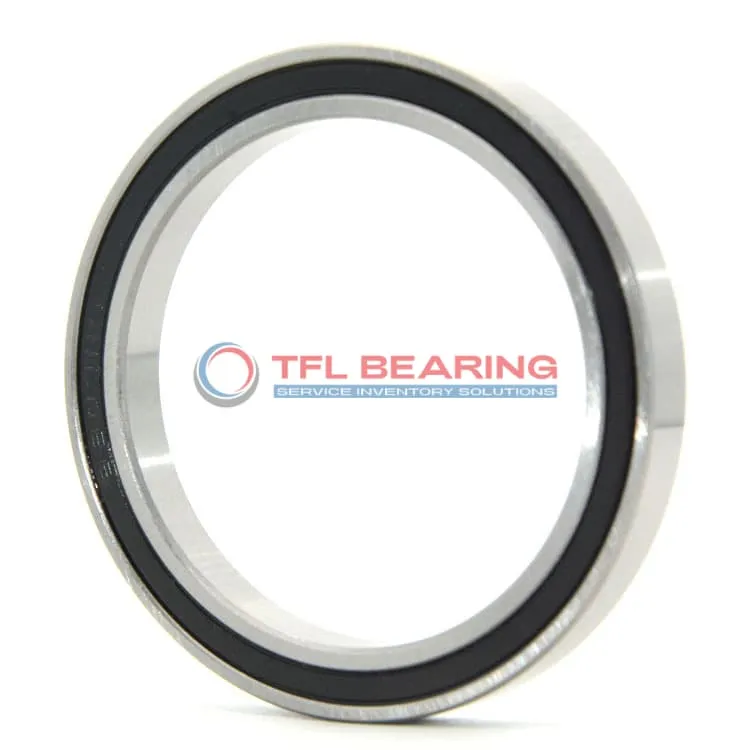

Constant Section (CS) Bearings J02508XP0

The J02508XP0 is a slim metric ball bearing with a compact 25mm bore and 41mm outer diameter, measuring just 8mm wide. Made from chrome steel with a brass cage, it’s built for durability in tight spaces.

This four-point contact bearing handles radial loads up to 730 lbf and thrust loads up to 1034 lbf, suitable for moderate-speed applications. Its sealed design keeps lubrication in and contaminants out for reliable performance.

The thin-section construction saves space without sacrificing strength, ideal for robotics or medical equipment. It operates smoothly in temperatures from -30°C to 110°C.

Weighing only 0.06kg, it’s a lightweight solution for precision applications. Compliant with RoHS standards, it’s interchangeable with KAYDON bearings for easy replacement.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number J02508XP0
Brand TFL
Interchangeable KAYDON
System of Measurement Metric
Bearing Type Ball
For Load Direction Four Point Contact
Construction Single Row
Seal Type Sealed
Bore Dia 25 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 41 mm
Outer Dia Tolerance -0.01mm to 0
Width 8 mm
Width Tolerance +.000 –.127mm
Thin Section Bearings Type Reali-Slim mm Metric Bearings
Series 8 mm
Tolerance Class ABEC-1
Radial Clearance 0.0000 – 0.0005"
External Diameter On Inner Ring 31.55 mm
Internal Diameter On Outer Ring (Small Side Face) 34.42 mm
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Brass
Dynamic Radial Load 730 lbf
Static Radial Load 736 lbf
Static Thrust Load 1671 lbf
Static Moment 11 lbf
Temperature Range -30°C to 110 °C
Moment Load Rating 40 lbf
Dynamic Thrust Load 1034 lbf
Lubrication Lubricated
RoHS Compliant
Weight 0.06 Kg
price（$） 52.22

Constant Section (CS) Bearings J02508XP0 dimension drawing

Download DWG Download PDF

Features

Why Choose J02508XP0 Bearing for Precision Tasks?

J02508XP0 Bearing features a four-point contact design, ensuring accurate load distribution and smooth operation.
Its chrome steel rings and balls provide durability, while the brass cage enhances alignment and reduces friction.

With a dynamic radial load capacity of 730 lbf, J02508XP0 Bearing handles demanding applications efficiently.
The sealed design protects against contaminants, making it suitable for various environments.

J02508XP0 Bearing operates within a temperature range of -30°C to 110°C, ensuring reliability in different conditions.
Its compact 8 mm width and precise tolerances make it ideal for space-constrained applications.

Application

Essential Roles of J02508XP0 Bearing
J02508XP0 Bearing is commonly used in industrial automation, especially in robotic arms and precision machinery, where its thin section design saves space without compromising performance. The sealed construction helps keep contaminants out, extending service life in dusty environments.

What Makes J02508XP0 Bearing a Preferred Choice?
In medical imaging equipment, J02508XP0 Bearing’s brass cage and chrome steel rings ensure smooth, quiet operation, crucial for sensitive diagnostic devices. Its ABEC-1 tolerance provides just the right balance of precision and cost-efficiency for these applications.

Built for Heavy-Duty Use: J02508XP0 Bearing
J02508XP0 Bearing handles moment loads well in packaging machinery, where its dynamic thrust capacity keeps conveyor systems running smoothly. The metric sizing makes it easy to integrate into existing production lines across Europe and Asia.

Automotive vs Aerospace: Applications of J02508XP0 Bearing
In automotive steering systems, J02508XP0 Bearing’s four-point contact design manages both radial and thrust loads effectively. For aerospace applications, its lightweight construction and temperature tolerance make it suitable for auxiliary aircraft components.

Perfect Fit for Automation: J02508XP0 Bearing
J02508XP0 Bearing works reliably in 3D printers, where its slim profile fits tight spaces while maintaining accuracy. The pre-lubricated design reduces maintenance needs, ideal for continuous operation in maker spaces or small factories.
